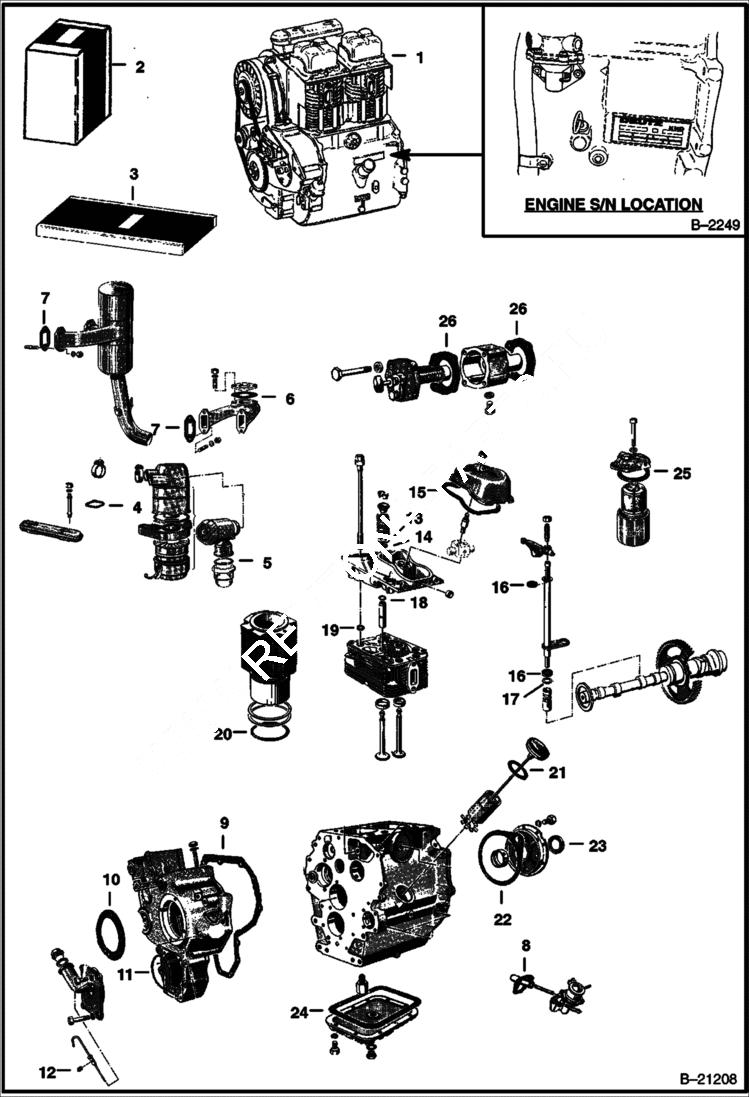

Запчасти Bobcat 500s DEUTZ DIESEL ENGINE F2L310 Deutz Diesel POWER UNIT

1

ENGINE NLA - F2L310

2

KIT NLA - heavy duty conversion - W/HD Lucas Starter - For F2L410

2

KIT NLA - heavy duty conversion - Without Starter For F2L410

3

KIT NLA - Gasket - Complete Overhaul - W/Ref. 4-26 - Was 6631989 - A

4

GASKET See Illustration AIR CLEANER & MANIFOLD/ A1064 NLA - Was 6517790 - A

5

6517829

GASKET See Illustration AIR CLEANER & MANIFOLD/ A1064

6

6541299

GASKET See Illustration AIR CLEANER & MANIFOLD/ A1064 WAS 6515953 - A

7

4110763

GASKET See Illustration AIR CLEANER & MANIFOLD/ A1064

8

6517781

GASKET See Illustration SHUT DOWN & FUEL PUMP/ A1065

9

GASKET See Illustration FRONT COVER GROUP/ A1054 NLA - WAS 6517719 - A

10

6517683

GASKET See Illustration FRONT COVER GROUP/ A1054

11

6515913

O-RING See Illustration FRONT COVER GROUP/ A1054

12

6517691

O-RING See Illustration FRONT COVER GROUP/ A1054

13

6516048

WASHER See Illustration CYLINDER BLOCK, HEADS VALVES & CAMSHAFT/ A1055

14

6515259

O-RING See Illustration CYLINDER BLOCK, HEADS VALVES & CAMSHAFT/ A1055

15

6511128

GASKET See Illustration CYLINDER BLOCK, HEADS VALVES & CAMSHAFT/ A1055

16

6516059

O-RING See Illustration CYLINDER BLOCK, HEADS VALVES & CAMSHAFT/ A1055

17

6517680

WASHER See Illustration CYLINDER BLOCK, HEADS VALVES & CAMSHAFT/ A1055

18

6516052

O-RING See Illustration CYLINDER BLOCK, HEADS VALVES & CAMSHAFT/ A1055

19

6516045

WASHER See Illustration CYLINDER BLOCK, HEADS VALVES & CAMSHAFT/ A1055

20

6517693

O-RING See Illustration CYLINDER BLOCK, HEADS VALVES & CAMSHAFT/ A1055

21

6517709

GASKET See Illustration BLOCK GROUP/ B21209

22

GASKET See Illustration BLOCK GROUP/ B21209 NLA - Was 6517718 - A

23

6517888

SEAL See Illustration BLOCK GROUP/ B21209

24

GASKET See Illustration BLOCK GROUP/ B21209 NLA - WAS 6517721 - A

25

6517712

GASKET See Illustration FUEL SYSTEM/ A1058

26

6517775

GASKET See Illustration ENGINE OIL PUMP/ A1057
