Запчасти Bobcat 500s THROTTLE & CHOKE POWER UNIT

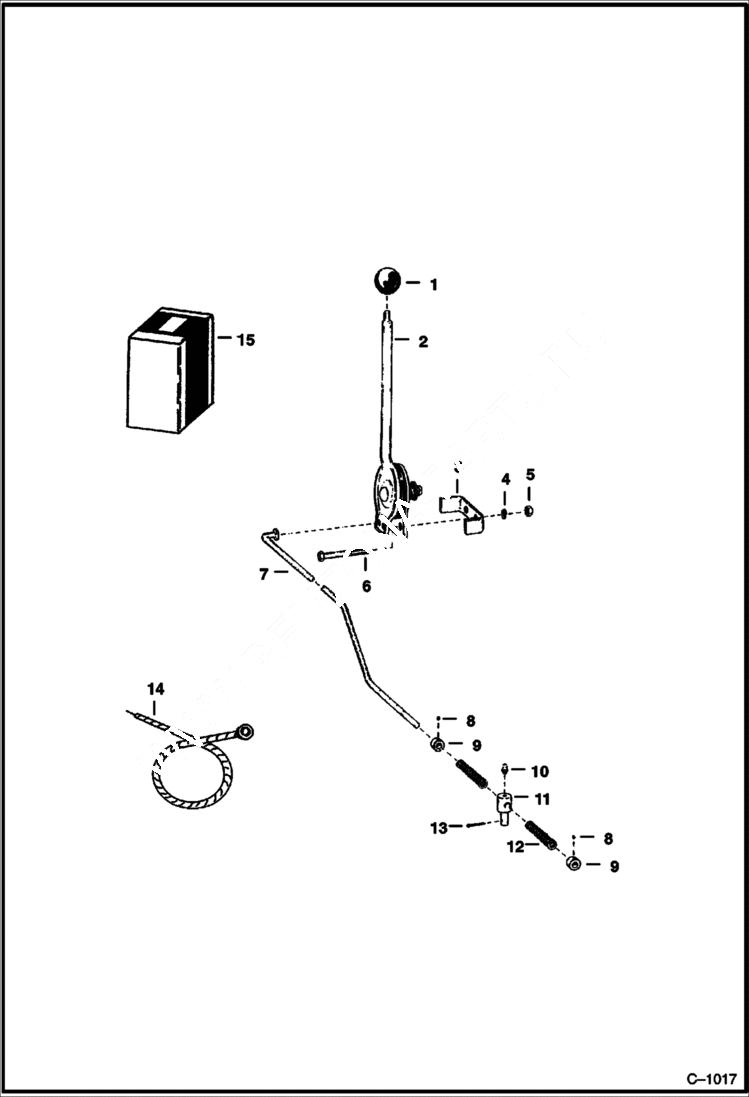

Схема запчастей Bobcat 500s - THROTTLE & CHOKE POWER UNIT

Артикул

Название

Примечание

Количество

1

6515888

KNOB

2

CONTROL NLA - Use Ref. 15

3

STOP NLA - Was 6502611 - A

4

4E6

WASHER

5

61D6

NUT 5

6

17C640

BOLT 5

7

ROD NLA - Was 6504772 - A

8

35G1003

SCREW

9

875749

COLLAR

10

10H35

FITTING, GREASE 10

11

CONNECTOR NLA - Was 6502827 - A

12

SPRING NLA - Was 6502860 - A

13

1F316

PIN

14

6515169

CABLE choke

15

CONTROL NLA -Throttle - Was 6561436 - A

Выбрано товаров: 15
