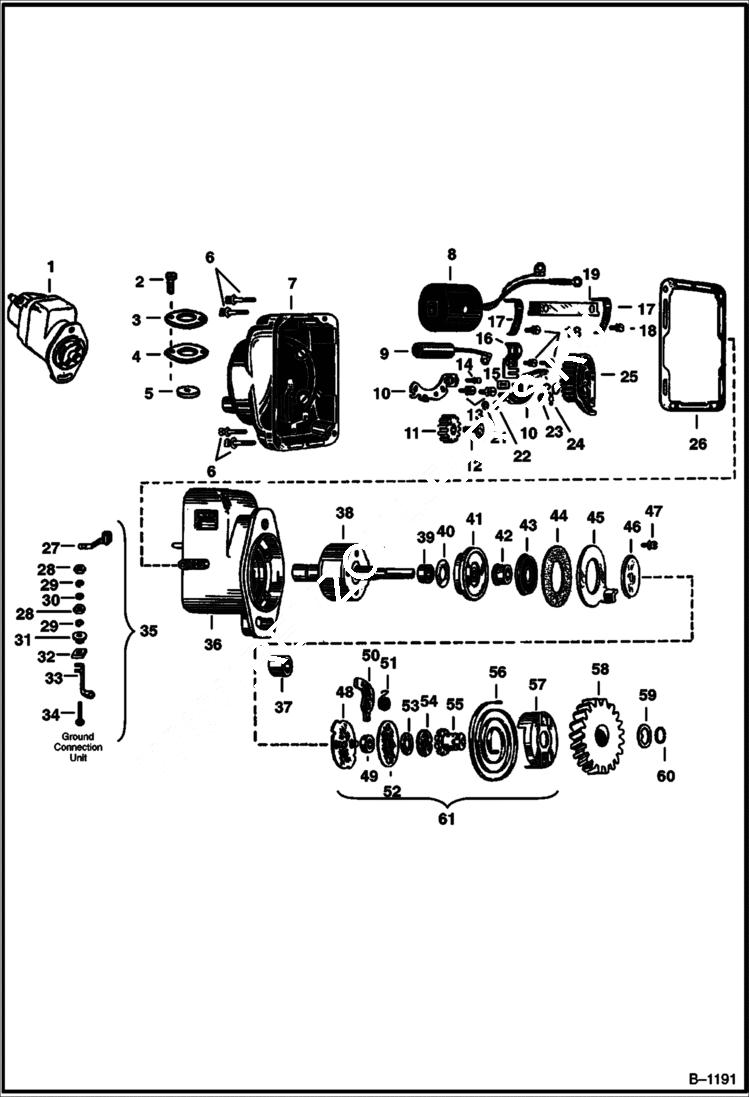

Запчасти Bobcat 500s MAGNETO POWER UNIT

1

MAGNETO ASSY. NLA - Ref. 2 - 34, 36 - 57, 59 & 60 - Was 6517352 - A

2

SCREW NSS - window clamp plate

3

PLATE NSS - window clamp

4

GASKET NSS - cap window sealing

5

WINDOW NSS - distributor cap

6

SCREW NSS - distributor cap

7

6517362

CAP distributor - W/Ref. 2-5

8

6517363

COIL core sold separately

8

COIL NLA - contact - Was 6517364 - A

9

6517365

CONDENSER

10

6517366

BREAKER contact set

11

GEAR NSS - pinion - Was 6517367 - A

12

SCREW NLA - pinion gear

13

SCREW NSS - breaker contact-Was 6517369 - A

14

SCREW NLA - breaker spring clamp

15

FELT NLA - breaker arm

16

CLAMP NLA - condenser

17

CLAMP NLA - coil core

18

SCREW NLA - coil core clamp & condensor clamp

19

CORE NSS - coil - Was 6517375 - A

20

FELT NLA - cam wiper

21

WASHER NLA - breaker point aligning screw

22

WASHER NLA - breaker screw

23

WASHER NLA - breaker arm pivot

24

RETAINER NLA - breaker arm

24

PIVOT NLA - breaker arm

25

6517382

ROTOR distributor

26

6667994

GASKET distributor cap - Was NSS - A

27

BUTTON NSS - stop

28

NUT NSS - ground stud

29

WASHER NSS - lock - ground stud

30

WASHER NSS - ground stud

31

INSULATOR NSS - ground stud

32

WASHER NSS - insulated - ground stud

33

GROUND NSS - lead

34

SCREW NSS - ground

35

KIT NLA - ground connecting - Ref. 27 - 34

36

HOUSING NLA - Was 6517393 - A

37

BUSHING NSS - breaker plate - Was 6517394 - A

38

6517395

ARMATURE

39

6517396

SPACER bearing case

40

6517397

SHIELD ball bearing

41

6517398

CAGE bearing - W/Bearing & Retainer Ring

41

6517399

CAGE bearing

42

6517400

SPACER impulse

43

SEAL NSS - oil - Was 6517401 - A

44

GASKET NSS - impulse stop - Was 6517402 - A

45

6517403

PLATE impulse stop - W/Ref. 44

46

6517404

SLINGER oil

47

6517405

SCREW impulse stop plate

48

FLANGE NSS - driven

49

SPACER NSS - driven flange

50

ARM NSS - trip

51

SPRING NSS - trip arm

52

RETAINER NSS - drive spring

53

WASHER NSS - driven flange spacer

54

WASHER NSS - drive cup spacing

55

NUT NSS - impulse lock - W/Ref. 59 & 60

56

SPRING NSS - drive

57

CUP NSS - drive

58

GEAR NLA - Drive - Was 6517355 - A

59

WASHER NSS - thrust

60

RING NSS - impulse lock

61

COUPLER NLA - Impulse - Ref. 48-57 - Was 6517418 - A
