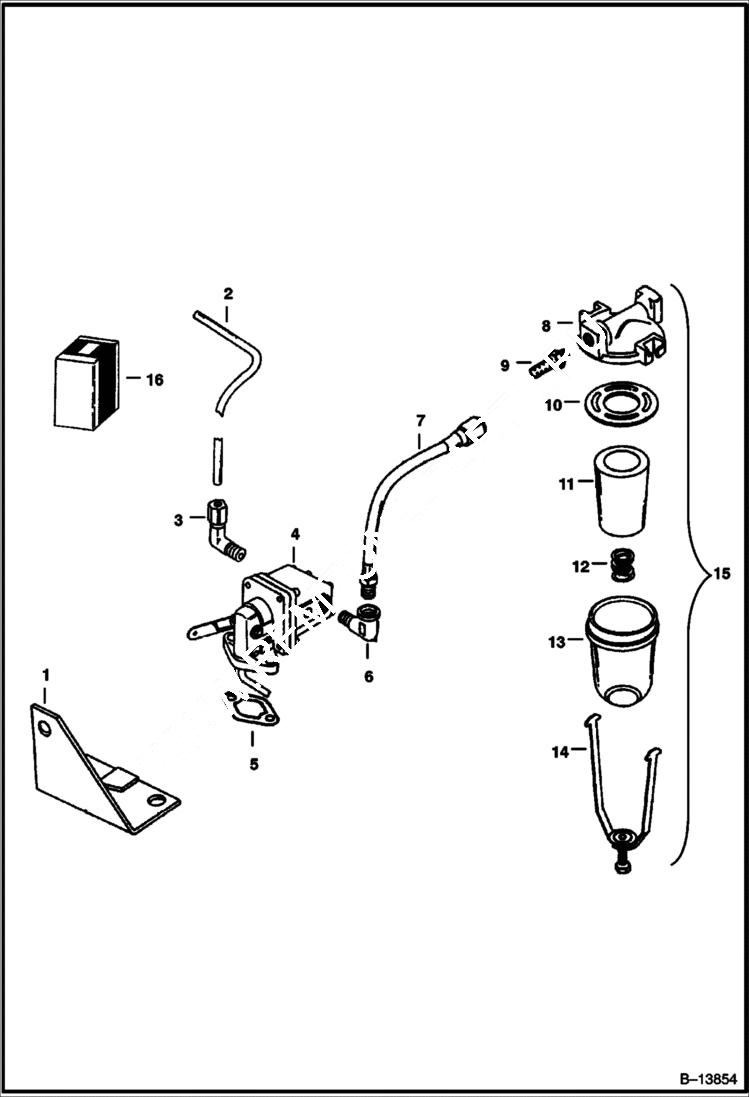

Запчасти Bobcat 500s FUEL PUMP & FUEL FILTER Kohler Engine Spec. No. 3947 POWER UNIT

1

6517260

BRACKET filter

2

LINE NLA - fuel - Was 6517287 - A

3

ELBOW NLA - Was 51F000003B - A

4

6517289

FUEL PUMP

5

6513269

GASKET Was 6517214 - A

6

662645

ELBOW

7

LINE NLA - flexible fuel - Was 6517291 - A

8

BODY NSS

9

ADAPTER NLA - fuel filter to fuel line - Was 6517293 - A

10

6517294

GASKET filter bowl

11

ELEMENT NLA - filter - ceramic - Was 6517295 - A

12

SPRING NSS

13

BOWL NLA - Filter - Was 6517297 - A

14

RETAINER NSS - bowl

15

6517299

FILTER fuel assembly - Ref. 8, 9 - 14

16

6517300

KIT pump repair
