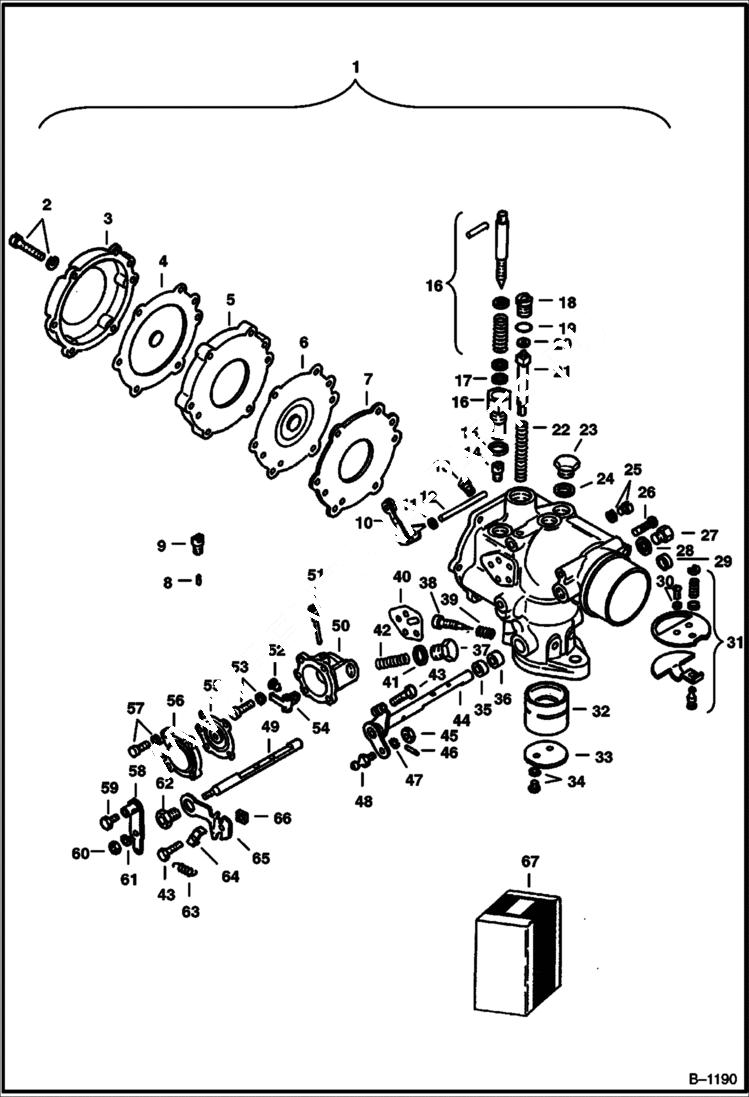

Запчасти Bobcat 500s LPG CARBURETOR Zenith No. 13020 POWER UNIT

1

6517147

CARBURETOR LPG

2

SCREW NLA - Was 68G001016B - A

3

891058

COVER

4

6517239

DIAPHRAGM outer

5

891059

SPACER

6

DIAPHRAGM NSS - inner

7

GASKET NSS - inner diaphragm

8

PLUG NSS - nylon

9

BOLT NLA - Was 35G000803B - A

10

891060

LEVER diaphragm

11

WASHER NSS - lever axle

12

AXLE NSS - lever

13

JET NLA - comp.

14

6517243

JET main

15

WASHER NSS - main jet adjustable

16

JET NLA - adjust assy - W/Ref. 17 - Was 891068 - A

17

JET NSS - adjust. main assy. - W/Ref. 16

18

882623

ORIFICE inlet

19

O-RING NSS - Inlet Orifice

20

DISC NSS - valve

21

6517246

VALVE fuel - W/Ref. 20

22

891057

SPRING valve

23

PLUG NSS

24

WASHER NSS

25

BOLT NLA - axle retainer - Was 41G000803B - A

26

882635

PLUG cup

27

PLUG NLA - Was 852279 - A

28

WASHER NSS

29

PLUG NSS - cup

30

BOLT NLA - Was 85G000604B - A

31

882617

PLATE choke - W/Ref. 30

32

6517248

VENTURI

33

6513494

PLATE throttle

34

SCREW NSS - throttle plate

35

RETAINER NSS - throttle shaft, seal

36

SEAL NSS - rubber

37

PLUG NLA - retainer

38

891063

NEEDLE idle adjustment

39

850011

SPRING

40

6517250

GASKET housing

41

WASHER NSS - channel screw

42

SPRING NSS - valve

43

BOLT NLA - throttle stop - Was 46G000810B - A

44

871550

SHAFT throttle

45

NUT NLA - ball joint

46

301923

ROLL PIN throttle stop lever

47

12E10

WASHER lock - ball joint

48

BALL NSS - linkage joint - Was 6517251 - A

49

882610

SHAFT choke

50

891064

HOUSING idle

51

AXLE NSS - lever

52

DISC NLA - valve - Was 6517253 - A

53

SCREW NLA - Was 42G000812B - A

54

LEVER NSS - idle control diaphragm - Was 891065B - A

55

6517254

DIAPHRAGM idle control

56

891062

COVER idle control housing

57

BOLT NLA - idle control housing - Was 42G000810B - A

58

LEVER NLA - choke - W/Ref. 59 - Was 882619B - A

59

BOLT NLA - choke cable - Was 46G000806B - A

60

14D8

NUT choke lever

61

17E10

WASHER lock - choke lever

62

BOLT NLA - choke - bracket

63

6644952

SPRING choke return - Was 850032B - A

64

CLIP NSS - bracket

65

882634

BRACKET choke - W/Ref. 43, 64 & 66

66

NUT NSS

67

REPAIR KIT NLA - W/Ref. 6 - 8, 11, 12, 15, 17, 19, 20, 24, 28, 29, 34 - 36, 38, 39, 41, 51, 52 & 55 - Was 892810B - A
