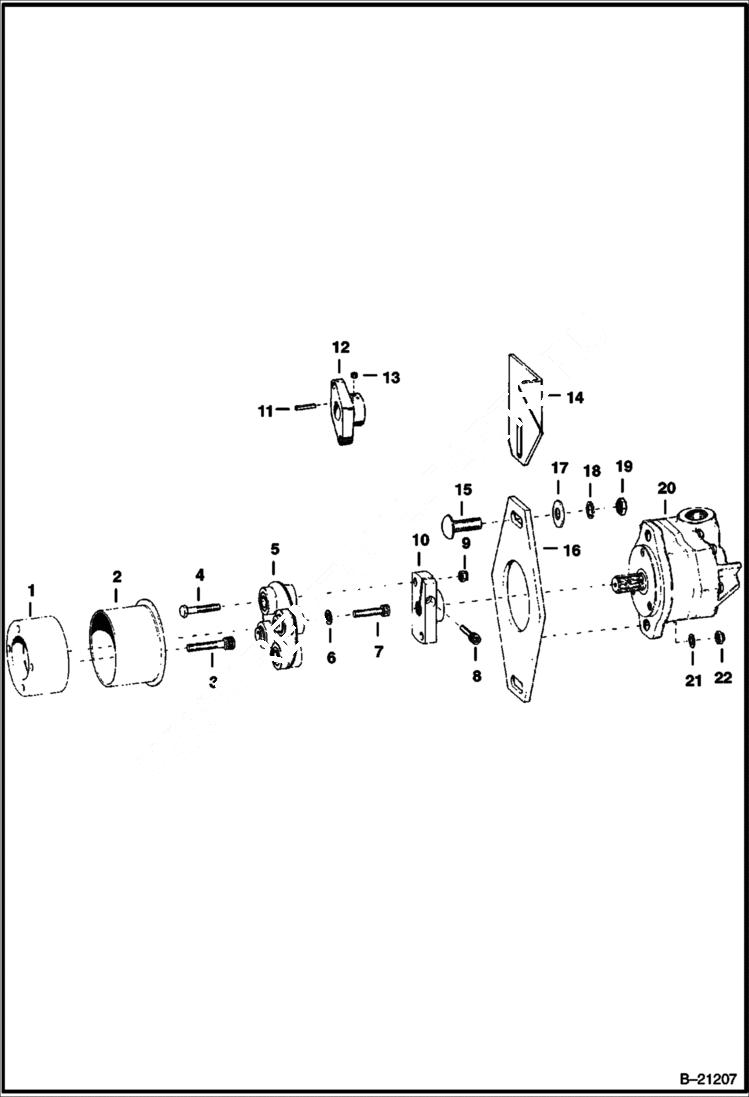

Запчасти Bobcat 500s HYDRAULIC PUMP DRIVE M-500 POWER UNIT

1

ADAPTER NLA - generator - Was 6505868 - A

1

ADAPTER NLA - Was 6502929 - A

2

6505869

TUBE spacer generator

2

TUBE NLA - spacer alternator - Was 6502931 - A

3

73G628

SCREW socket head

3

73G620

SCREW socket head

4

18C532

BOLT

5

6515198

COUPLER flexible

6

6E5

WASHER

7

93G520

SCREW socket head

8

74G516

BOLT socket head

9

91D5

NUT 5 Was 81D000005B - A

10

6502770

ADAPTER pump drive - Splined

11

6517116

KEY square

12

ADAPTER NLA - pump drive - keyed - Was 6505867 - A

13

15G505

SCREW

14

BRACKET NLA - top weld

14

BRACKET NLA - bottom weld

15

7C820

BOLT

16

PLATE NLA - Was 6504696 - A

17

672568

WASHER

18

4E8

WASHER

19

61D8

NUT 5

20

PUMP See Illustration HYDRAULIC PUMP/ B21193 HYD.

21

25E17

WASHER 5

22

81D6

NUT
