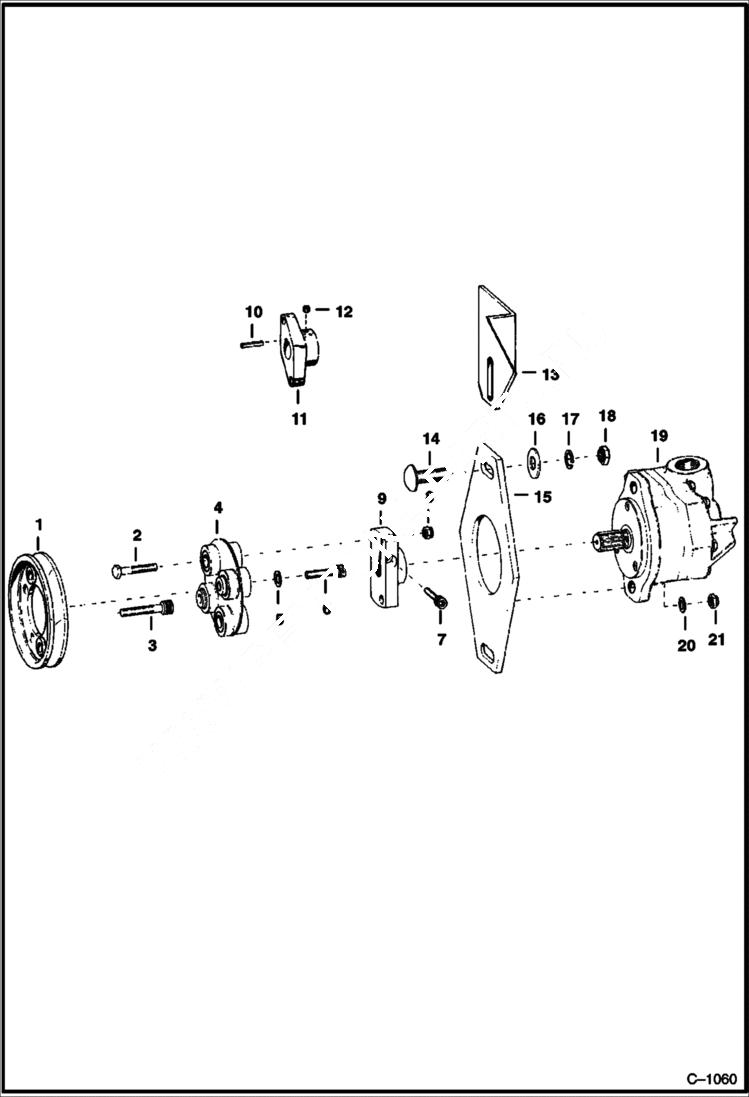

Запчасти Bobcat 500s HYDRAULIC PUMP DRIVE M-444 POWER UNIT

1

SHEAVE NLA - generator drive - Was 6505056 - A

1

SHEAVE NLA - Generator Drive - Was 6505872 - A

1

INSERT NLA - rubber - spider - Use W/NLA 6505872 - Was 6505871 - A

1

COUPLING NLA - spider - Use W/NSP 6505872 - Was 6505874 - A

2

18C532

BOLT

3

73G416

SCREW socket head

4

6515198

COUPLER flexible

5

6E5

WASHER shakeproof

6

93G520

SCREW socket head

7

74G516

BOLT socket head

8

91D5

NUT 5 Was 81D000005B - A

9

6502770

ADAPTER drive - Splined

10

6517116

KEY square

11

ADAPTER NLA - pump drive - keyed - Was 6505867 - A

12

15G505

SCREW

13

BRACKET NLA - Top Weld

13

BRACKET NLA - Bottom Weld

14

7C820

BOLT carriage

15

PLATE NLA - Was 6504696 - A

15

6505873

PLATE

16

672568

WASHER

17

4E8

WASHER

18

61D8

NUT 5

19

PUMP See Illustration HYDRAULIC PUMP/ B21193 HYDRAULIC

20

25E17

WASHER 5

21

81D6

NUT
