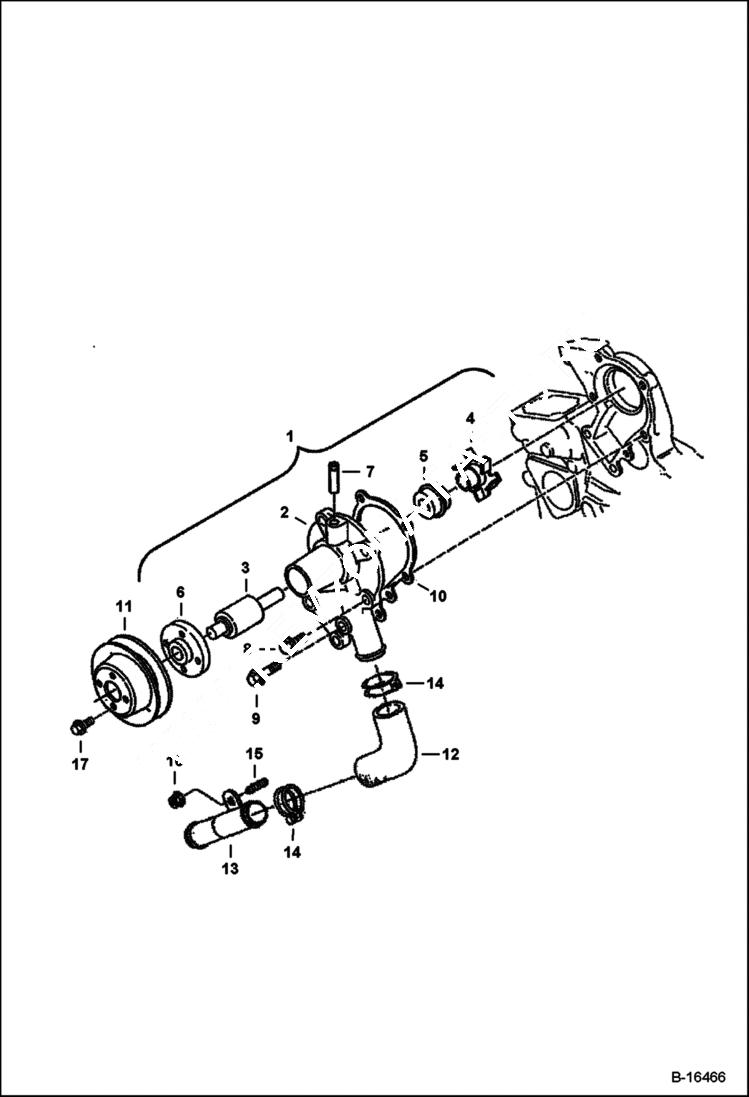

Запчасти Bobcat 400s WATER PUMP (Kubota D722) POWER UNIT

1

6670506

PUMP ASSY. Ref. 2-7

2

BODY NSS

3

6670507

BEARING

4

6670508

IMPELLER

5

6657432

SEAL

6

6599062

FLANGE Was 6653565 - A

7

6652745

PIPE Water Return - Was 6652759 - A

8

6653584

BOLT

9

6670510

BOLT

10

7000377

GASKET, PUMP WATER See Illustration ENGINE & GASKET KITS/ B16486 Included W/Lower gasket kit - Not W/Pump - Was 6670509 - A

11

6670964

PULLEY

12

6674254

HOSE

13

6676563

PIPE

14

6687666

CLAMP

15

6683087

STUD

16

6670533

NUT Was 6653561 - A

17

6691324

BOLT
