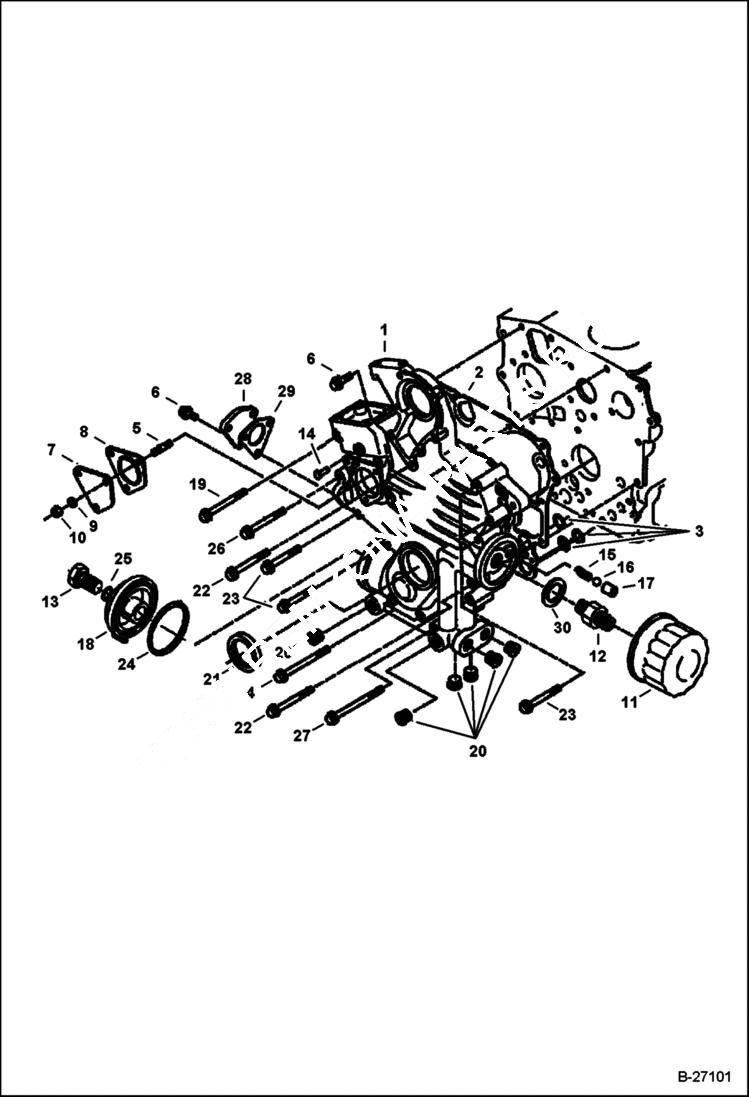

Запчасти Bobcat 400s GEARCASE (Kubota D722) POWER UNIT

1

7018013

HOUSING, GEAR Also order 7017980 housing gasket, 7017981 water pump & 7000377 pump gasket and do not use Ref. 3 o-ring - W/Ref. 14 & 20 - Was 6670768 - A

1

6677914

CASE Include Ref. 13, 14, 20, 24, 25, & 18 (6677913 cover)

2

6670356

GASKET - included W/lower gasket kit

3

6677915

SEAL - included W/lower gasket kit

4

6657414

BOLT

5

6652764

STUD

6

6652580

BOLT

7

6670362

COVER

8

6670363

GASKET - included W/lower gasket kit

9

6667419

WASHER

10

1DM6

NUT

11

6671057

FILTER, OIL ENG 12

12

6652597

ADAPTER

13

6688075

BOLT Was 6657605 - A

14

6670355

PIN

15

6670359

SPRING

16

6670361

BALL

17

6670360

SEAT

18

6657604

COVER

18

6677913

COVER

19

6652595

BOLT Was 6670771 - A

20

6667425

PLUG

21

6670358

SEAL front crankshaft

22

6670357

BOLT

23

6670770

BOLT

24

6657422

O-RING

25

6670769

O-RING

26

6652593

BOLT

27

6670772

BOLT

28

7000378

COVER, PLATE Was 6670773 - A

29

6688076

GASKET Was 6670774 - A

30

6677916

WASHER
