Запчасти Bobcat 400s OIL PAN (Kubota D722) POWER UNIT

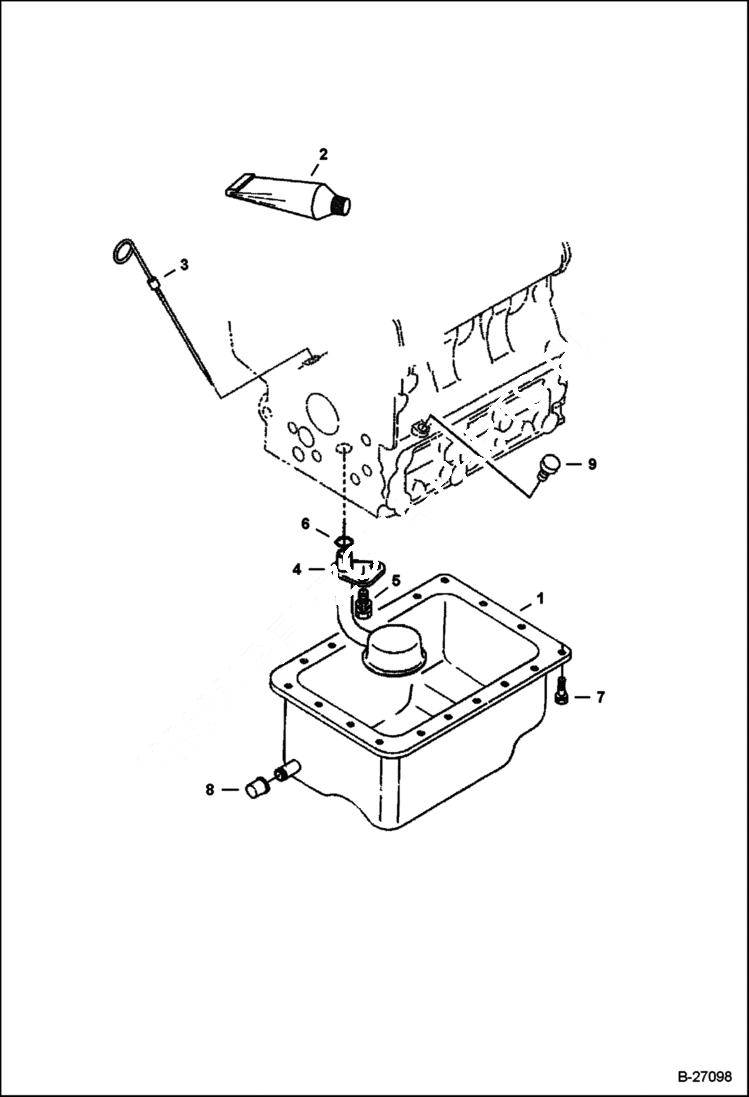

Схема запчастей Bobcat 400s - OIL PAN (Kubota D722) POWER UNIT

Артикул

Название

Примечание

Количество

1

6685739

PAN

1

GASKET NLA - Use Ref. 2

2

6632823

GASKET liquid - Use between Ref. 1 & block

3

6670374

DIPSTICK 7.5 mm dia plug

3

6678238

DIPSTICK 12.5 mm dia plug

4

6670348

SCREEN oil pickup

5

6667420

BOLT

6

6680284

O-RING See Illustration LOWER GASKET KIT/ B16470 included w/lower gasket kit

7

1CM614

SCREW Was 4CM614 - A

8

6687741

PLUG

9

6969804

PLUG,OIL GAUGE

Выбрано товаров: 11
