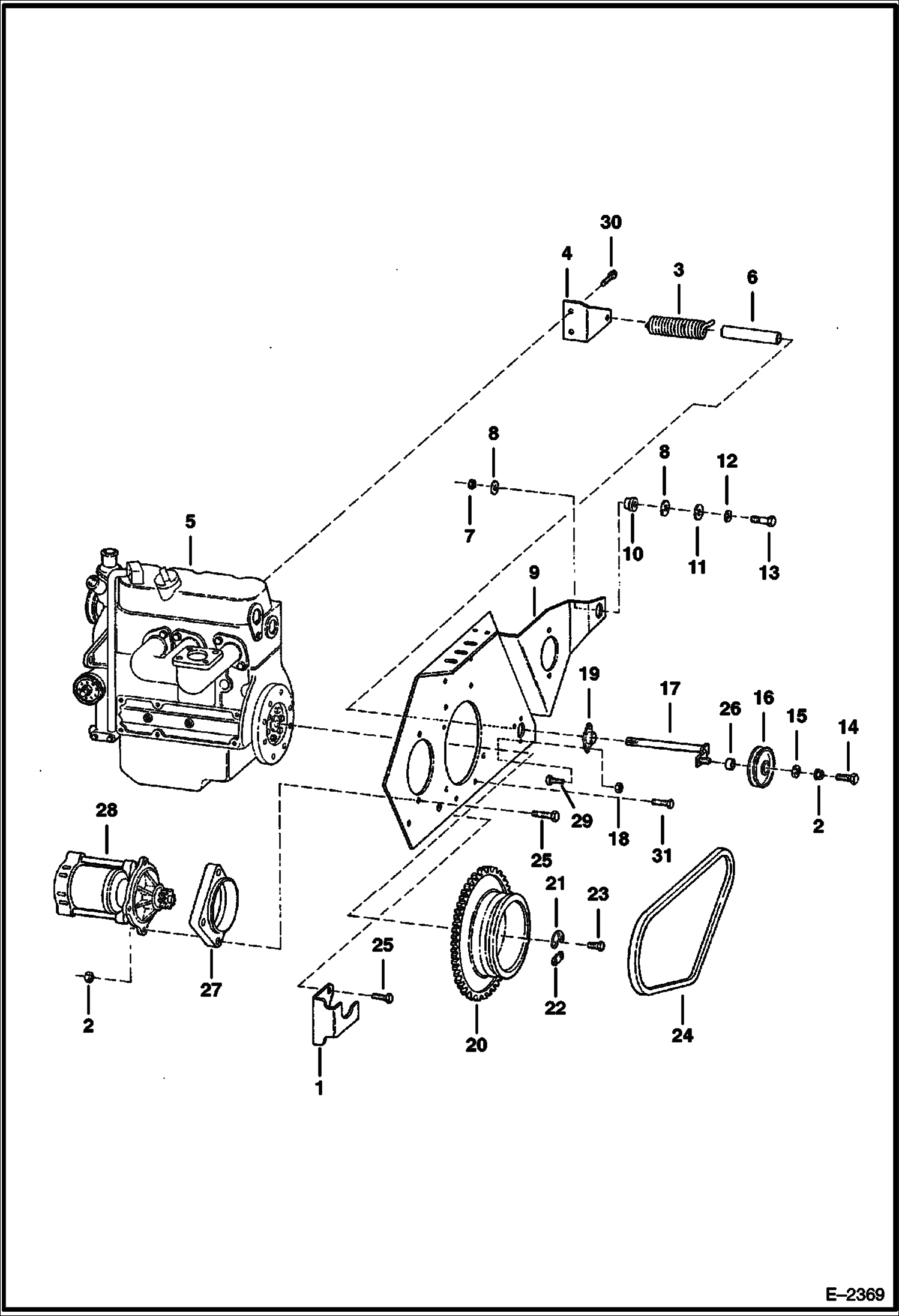

Запчасти Bobcat 400s ENGINE & ATTACHING PARTS (Belt Drive, Hyd.) (S/N 5200 11680 & Below, 5199 11409 & Below) POWER UNIT

1

6713874

SHIELD starter

2

83D6

NUT 5

3

6678782

SPRING Was 6564892 - A

4

BRACKET NLA - idler - Order 6730864 - Was 6713600 - A

5

ENGINE See Illustration ENGINE & GASKET KITS/ B16486

6

6564788

TUBE

7

85D8

NUT, 5

8

6564692

WASHER

9

MOUNT NLA - Engine - Order 6730934 - Was 6727765 - A

10

6560633

DAMPENER Rubber

11

6565472

WASHER

12

25E21

WASHER 5

13

17C844

BOLT

14

17C620

BOLT

15

27E6

WASHER 5 Use W/NLA 6564011

16

PULLEY NLA - Order 6681865 - Was 6564011 - A

16

6681865

PULLEY IDLER

17

BRACKET NLA - With Stud - Order 6730949 - Was 6532348 - A

18

61D4

NUT 5

19

6599468

BEARING

20

6713599

FLYWHEEL W/Ring Gear

20

6800424

RING-GEAR

21

6598847

WASHER

22

6598846

WASHER

23

6661636

BOLT Washer face

24

6727727

BELT drive

25

17C636

BOLT

26

6532347

SPACER Use W/NLA 6564011

27

6713778

BLOCK

28

STARTER See Illustration STARTER/ D2396

29

17C412

BOLT 5

30

6719825

BOLT

31

55CM816

BOLT Was 1CM00816B - B
