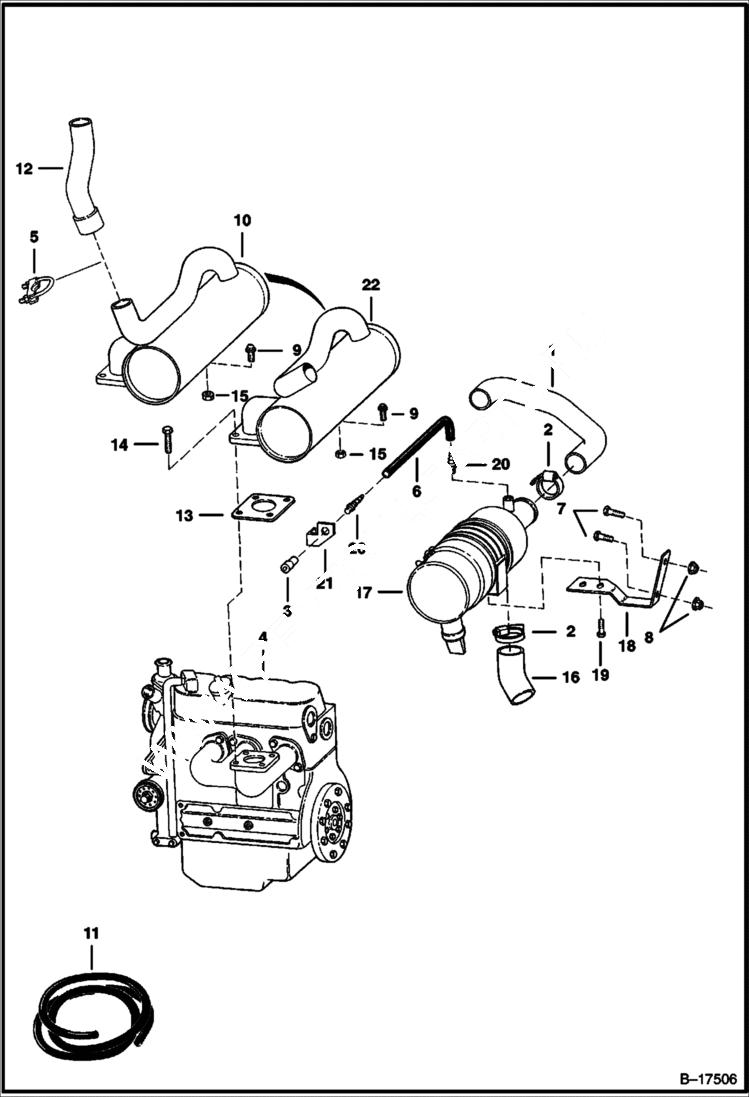

Запчасти Bobcat 400s ENGINE & ATTACHING PARTS (Intake & Exhaust) POWER UNIT

1

6718442

HOSE

2

42HC250

CLAMP

3

6515007

GAUGE

4

ENGINE See Illustration ENGINE & GASKET KITS/ B16486

5

3170912

CLAMP,MUF muffler

5

3170912

CLAMP,MUF

6

HOSE NLA - 18'' (457,2 mm) long - Order Ref. 11

7

84G3112

BOLT 5

8

57D5

NUT

9

35C612

BOLT

10

6713528

MUFFLER spark arrestor

11

6557720

HOSE

12

6713587

TUBE exhaust

12

6713587

TUBE

13

6575580

GASKET muffler

14

6701123

SCREW exhaust

15

57D6

NUT 5

16

6729040

HOSE

17

AIR CLEANER See Illustration AIR CLEANER/ C3522

18

6716373

MOUNT

19

1CM820

BOLT

20

6505813

CONNECTOR

21

6704823

BRACKET

22

6729916

MUFFLER spark arrestor
