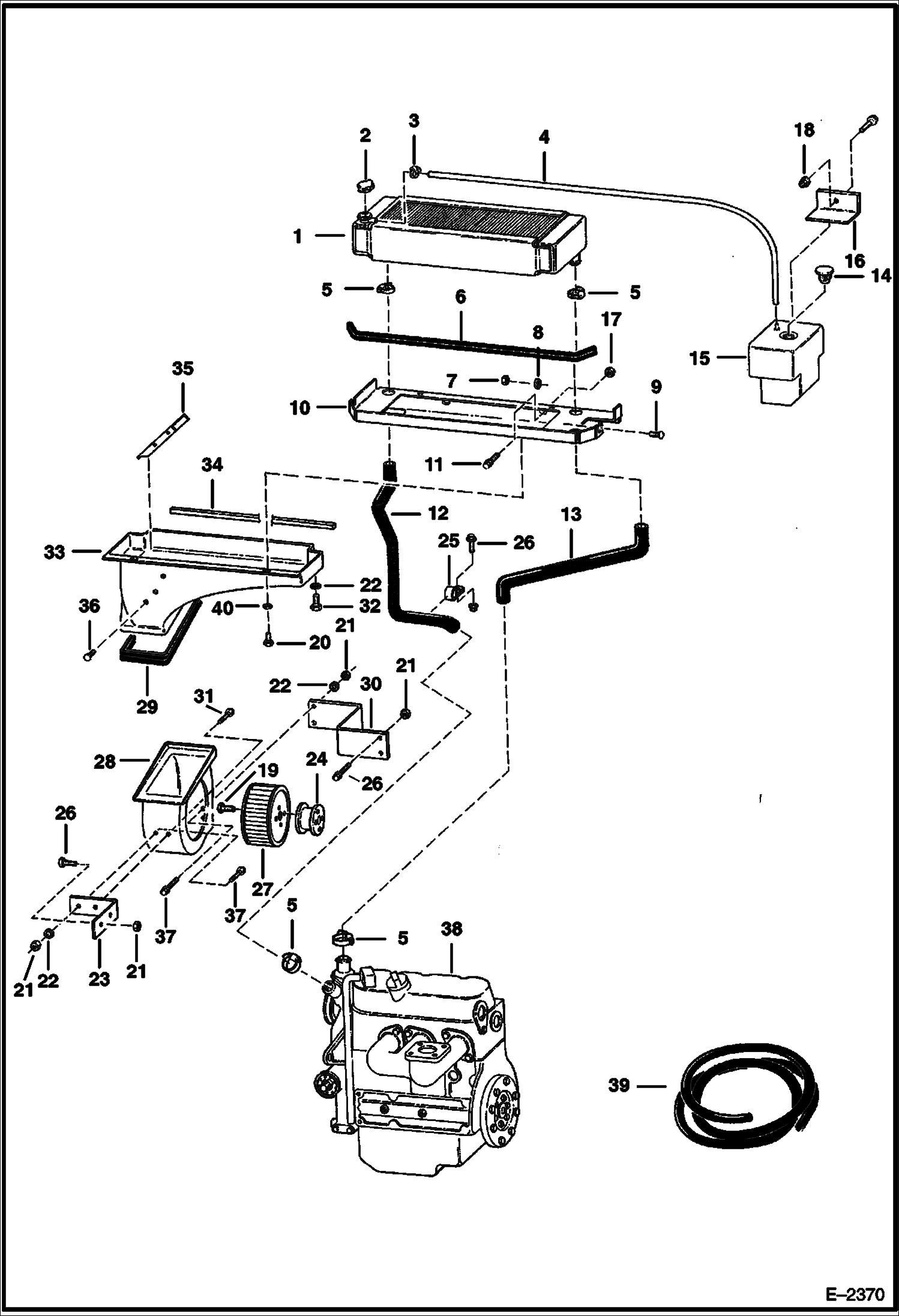

Запчасти Bobcat 400s ENGINE & ATTACHING PARTS (Cooling Group) POWER UNIT

1

6678670

EXCHANGER, WATER RADIATOR Was 6677347 - A

2

6646678

CAP 14 pound

3

42HS04

CLAMP, HOSE Was 6515575 - A

4

HOSE NLA - 35'' (889 mm) - Order Ref. 39

5

5HM35

HOSECLAMP Constant Tension

6

SEAL NLA - bulk - sold per foot - Was 6632217 - B

7

61D5

NUT

8

6565433

WASHER

9

10C512

BOLT

10

6564382

MOUNT

11

84G3716

SCREW 5

12

6713788

HOSE

13

6713789

HOSE

14

6702797

CAP

15

6736093

TANK Was 6713725 - A

16

6713727

RETAINER

17

83D6

NUT 5

18

85D6

NUT, 5

19

1CM660

BOLT

20

35C508

BOLT

21

83D5

NUT 5

22

25E15

WASHER

23

6713604

MOUNT

24

6713603

SPACER water pump

25

30H58

CLIP

26

37C512

BOLT

27

6564993

BLOWER WHEEL

28

6565070

HOUSING

29

6555351

SEAL bulk - sold per foot

30

6713602

MOUNT

31

35C520

BOLT Was 17C000512B - B

32

17C508

BOLT

33

6565069

HOUSING

34

6511855

SEAL self adhesive - bulk - sold per foot

35

6565060

SCREEN baffle

36

6630207

RIVET 5

37

35C512

BOLT Was 17C000516B

38

ENGINE See Illustration ENGINE & GASKET KITS/ B16486

39

6577822

HOSE bulk - sold per foot

40

6563914

WASHER
