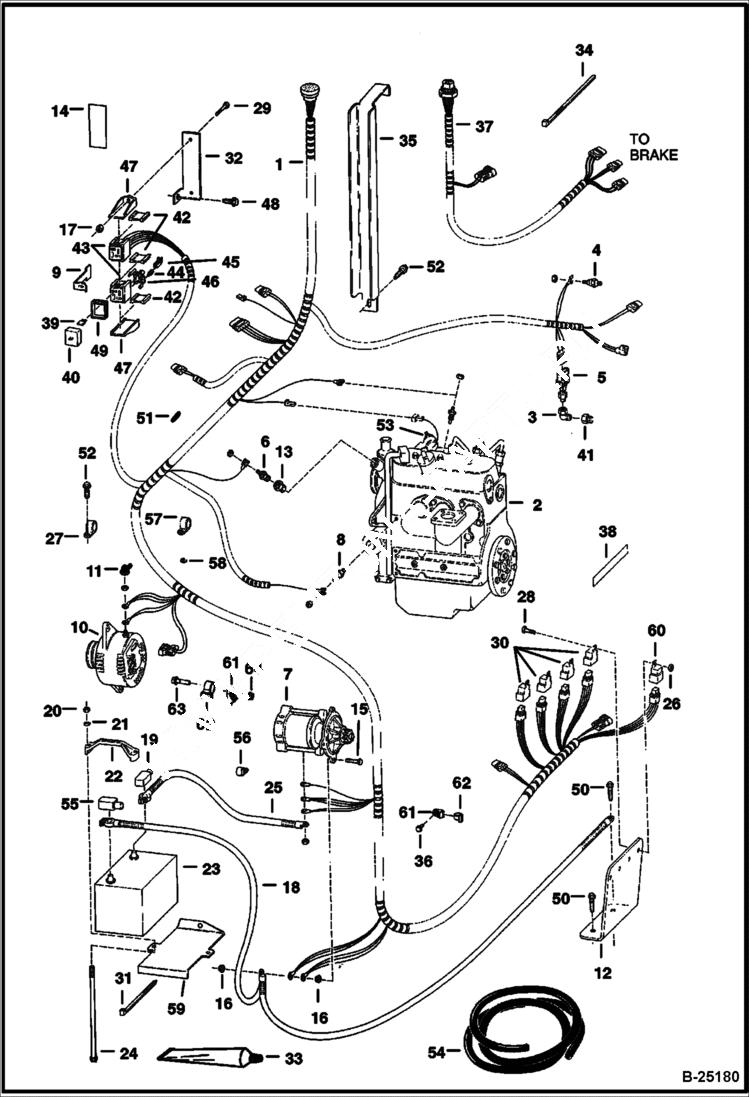

Запчасти Bobcat 400s ENGINE ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

6714018

HARNESS engine

1

6729790

HARNESS engine

2

ENGINE See Illustration ENGINE & GASKET KITS/ B16486

3

26F1

PIPE FITG

4

6632633

SWITCH hyd temp

5

6670705

SWITCH, PRESS OIL HYD hydro. pressure

6

6658818

SENDER eng temp - threaded connector

7

STARTER See Illustration STARTER/ D2396

8

6631010

SWITCH, PRESS OIL ENG engine oil pressure

9

6708437

CLIP

10

ALTERNATOR See Illustration ALTERNATOR/ C3456

11

6632453

BOOT

12

6714075

BRACKET Relay

13

19F2

BUSHING

14

6714364

DECAL

15

17C636

BOLT

16

57D6

NUT 5 Flanged

17

50D12

NUT

18

6714437

CABLE Negative

19

2356058

BOOT

20

59D5

NUT 5

21

25E15

WASHER

22

6569203

CLAMP

23

6674687

BATTERY, DRY 600 AMP

23

6630154

CAP gang - Danger

23

6630155

CAP gang - Poison

23

CAP NLA - tilt-tite - Was 6514898 - A

24

6569623

BOLT

25

6714436

CABLE Positive - W/23'' of Ref. 23

26

85D4

NUT 5

27

30H57

CLAMP

28

17C410

BOLT 10

29

45G1212

BOLT

30

6670312

SWITCH, MAGNETIC relay

31

6610510

TIE

32

6714074

BRACKET

33

6599360

SEALANT, ELEC .3 OZ electrical - tube - 3 oz

34

6665527

TIE never modify

35

6707415

BRACKET

36

84G3116

SCREW

37

6710423

HARNESS to brake

37

6729862

HARNESS

38

6707787

DECAL

39

6707620

FUSE, 10A MINI 5

39

6707621

FUSE, 15A MINI 5

39

6707622

FUSE, 20A MINI 5 20 amp.

39

6707623

FUSE, 25A MINI 5

40

6665358

COVER , FUSE

41

6563922

SNUBBER W/Filter

41

6563920

FILTER

42

6665411

WEDGE red

43

6665356

BLOCK fuse - W/green square seal

44

6650107

SEAL

45

6668719

PIN female - 16 ga. wire

45

6668720

PIN female - Use W/ 14 ga wire

46

6665357

LOCK yellow

47

6665369

MOUNT fuse

48

84G3108

BOLT

49

6671528

SEAL Green Seal - Order Ref. 43

50

84G3712

BOLT 5

51

3675725

DIODE

52

84G3112

BOLT 5

53

6670776

SOLENOID, SHUTOFF FUEL See Illustration SPEED CONTROL & STOP LEVER/ C3449

54

6563505

CONDUIT bulk - Sold Per Foot

55

6599652

BOOT

56

31H42

CLIP

57

30H49

CLAMP P clamp

58

6E6

WASHER

59

6715086

PAN battery

60

6670872

TIMER fuel shut off

61

6678667

MOUNT

62

6678669

STRAP

63

35C516

BOLT 10

64

83D5

NUT 5
