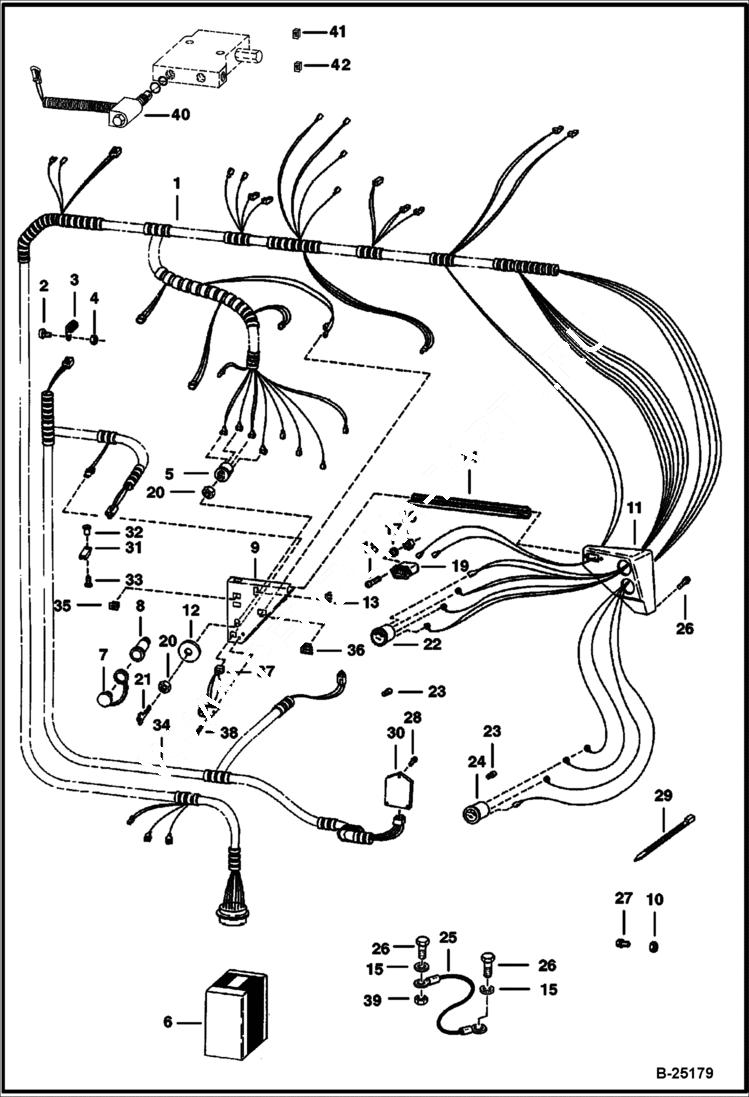

Запчасти Bobcat 400s CAB ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

6707498

HARNESS cab

1

6729788

HARNESS cab

2

35C410

BOLT 5

3

30H56

CLIP

4

83D4

NUT 10

5

6665606

SWITCH

6

6724282

SWITCH KIT W/Ref. 5, 12 & 21

7

6664224

CAP European

8

6664223

OUTLET Electrical - European

9

6708425

PANEL Domestic

9

6708426

PANEL European

9

6730034

PANEL

10

12D4

NUT

11

6708584

PANEL

12

6709028

PLATE brake start

13

6636018

LIGHT indicator

14

6531618

CROSSMEMBER

15

25E15

WASHER

16

12D6

NUT 10

17

12E6

WASHER

18

85G608

SCREW

19

6664886

HOURMETER

20

6674202

NUT

21

KEY NLA - ignition - includes two keys W/ring - Order 6693241 - Was 6709527 - A

21

6693241

KEY 10 ignition - single key W/O ring

22

VOLTMETER NLA - W/clamp - Order 6669664 voltmeter & 6679027 clamp - Was 6658819 - A

22

6669664

VOLTMETER W/O clamp

23

6599696

SOCKET & BULB assy

23

895771

#161 BULB

24

GAUGE NLA - eng temp - W/clamp - Order 6669663 gauge & 6679027 clamp - Was 6658817 - A

24

6669663

GAUGE eng temp - W/O clamp

25

6594283

WIRE ground

26

6702642

SCREW

27

84G3112

BOLT 5

28

91G412

SCREW cross recess pan head

28

25G412

CAPSCRW10 hex socket button head

29

6610510

TIE

30

6680411

CONTROLLER Was 6674222 - A

31

6665000

CLIP

32

6665321

RIVET plastic male

33

6665322

RIVET plastic female

34

6717581

HARNESS controller

34

6729863

HARNESS controller

35

6665314

PLUG domestic - Was 6719038 - A

35

6665410

SWITCH European

36

6665318

SWITCH glow plug

37

6674220

SWITCH, OVERRIDE TRACTION push to operate

38

6669225

BOLT Was 58G000408B - A

39

61D5

NUT

40

6672863

VALVE, SOLENOID

41

6668814

SWITCH bucket level - Was 6665319 - A

42

6678203

SWITCH park brake
