Запчасти Bobcat 400s GEAR PUMP HYDROSTATIC SYSTEM

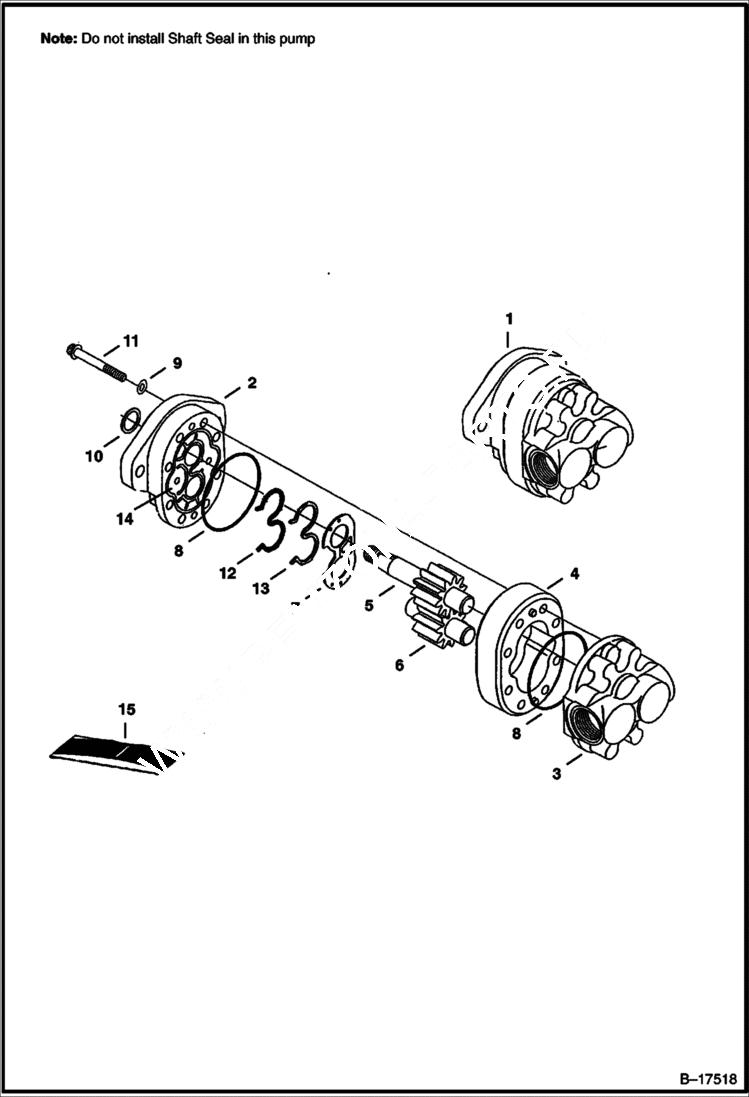

Схема запчастей Bobcat 400s - GEAR PUMP HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6677581

PUMP

2

PLATE NLA - Order 6677581 - Was 6677632 - A

3

6677582

PLATE

4

6677583

BODY

5

6677584

GEAR drive

6

6677585

GEAR idler

7

PLATE NLA - Order 6668013 - Was 6668703 - A

8

O-RING NLA - Order 6668013 - A

9

WASHER NLA - Order 6668013 - Was 6672630 - A

10

WASHER NLA - Order 6668013 - Was 945412 - A

11

93G536

BOLT Was 1G000536B - A

12

O-RING NLA - Order 6668013 - Was 6668701 - A

13

SEAL NLA - Order 6668013 - Was 6668702 - A

14

PLUG NLA - Order 6668013 - Was 6668700 - A

15

6668013

SEAL KIT Ref. 7-10 & 12-14

Выбрано товаров: 15
