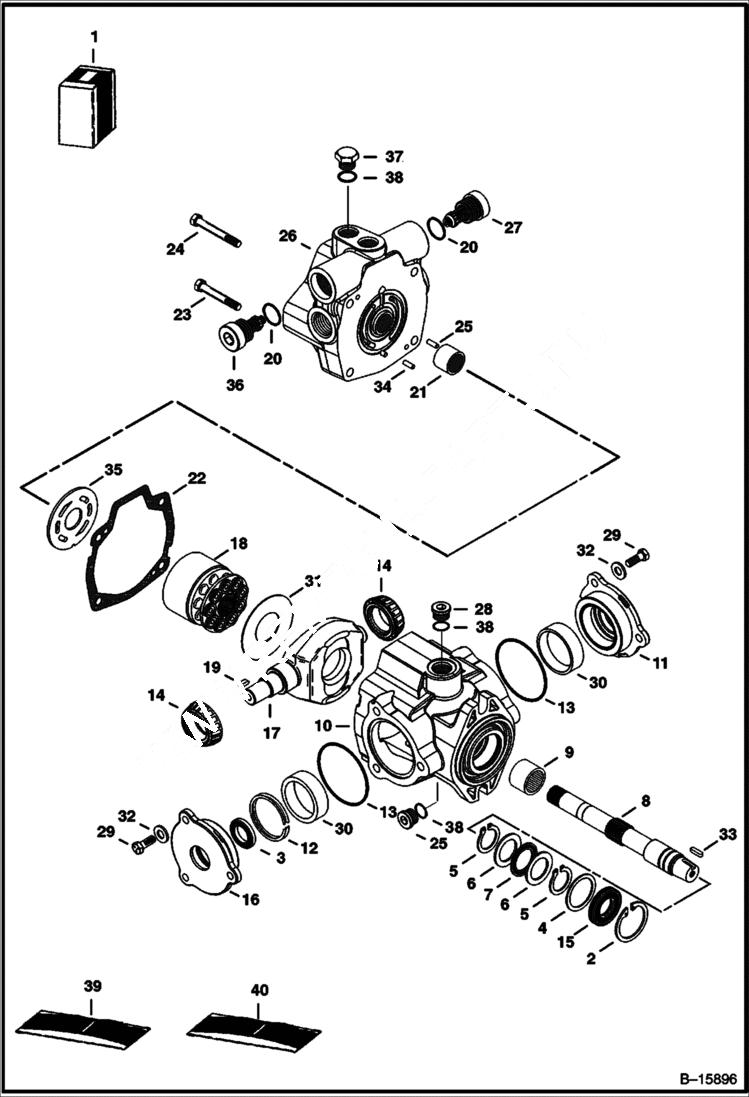

Запчасти Bobcat 400s HYDROSTATIC PUMP (Pulley End) HYDROSTATIC SYSTEM

1

6677627

PUMP New - 70160-LBG-03 - Pulley end of pump

2

661415

SNAP RING

3

SEAL SHAFT NSS

4

6598875

WASHER

5

710776

SNAP RING

6

6598878

RACE

7

3292657

BEARING thrust

8

6598894

SHAFT drive - tapered

9

851239

BEARING

10

6677610

HOUSING W/Ref. 9 - Also Order Ref. 40

11

6677600

COVER

12

6677604

CRUSH RING Was NSS - D

13

6677605

O-RING

14

6677598

BEARING

15

6635527

SEAL

16

6677599

COVER Also Order Ref. 40

17

6677590

PLATE yoke - Also Order Ref. 40

18

6598893

GROUP

19

6630170

KEY

20

6677596

O-RING

21

654386

BEARING

22

6635508

GASKET Was NSS - D

23

6677601

BOLT

24

6677602

BOLT

25

214028

PIN

26

6677609

PLATE back - W/Ref. 21

27

6677597

CHECK VALVE W/Ref. 20

28

6677607

PLUG W/Ref. 38

29

6677594

SCREW

30

6677603

CUP bearing

31

6677592

PLATE swash

32

6677593

WASHER

33

6598880

KEY

34

6677588

PIN

35

6667998

PLATE Was 6677606 - A

36

6677595

RELIEF VALVE W/Ref. 20

37

PLUG NLA - W/Ref. 38 - Was 6634873 - A

38

6634874

O-RING

39

6677608

KIT, SEAL

40

6677502

SHIM KIT
