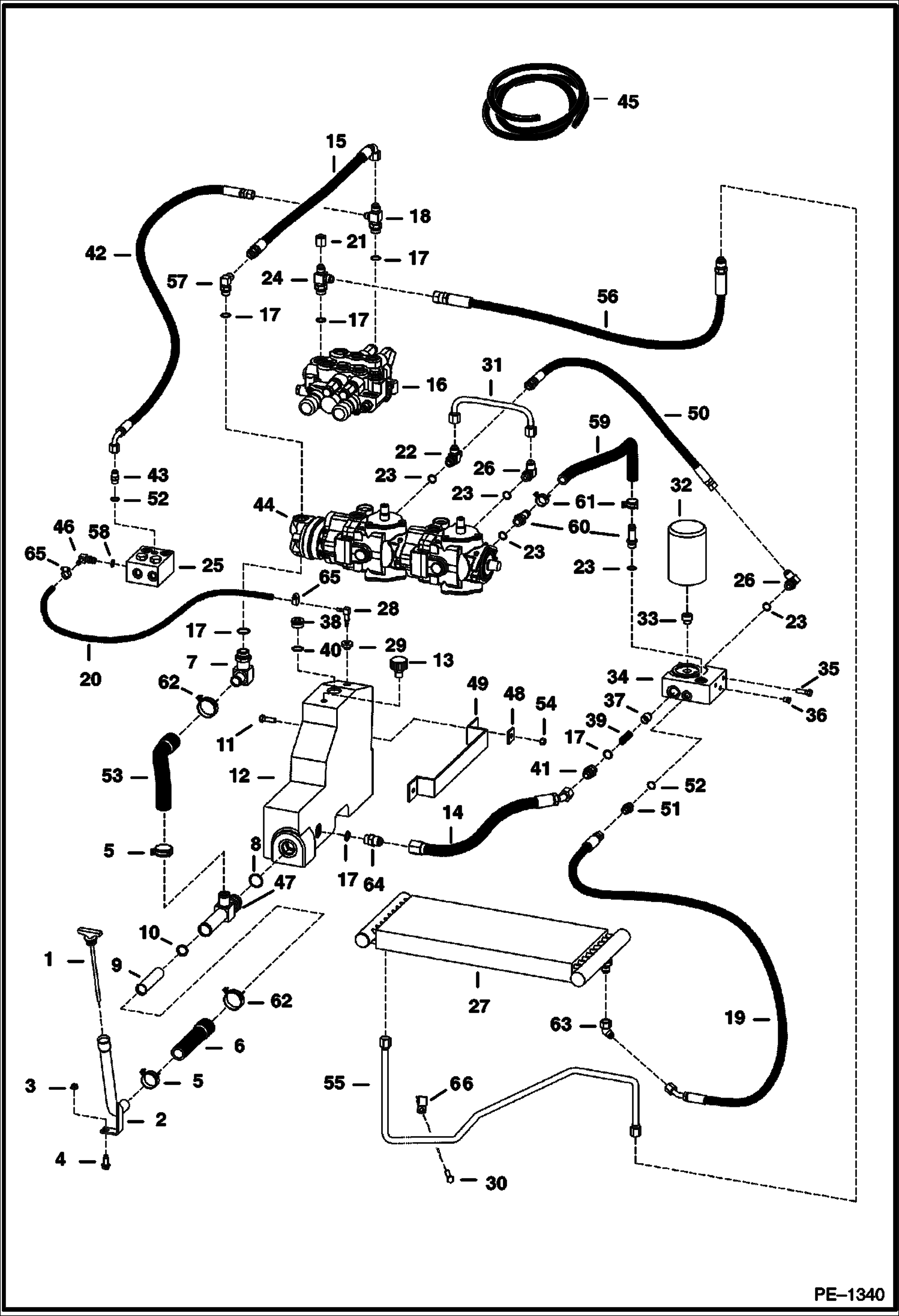

Запчасти Bobcat 400s HYDROSTATIC CIRCUITRY (S/N 5200 11540 & Above, 5199 11335 & Above) HYDROSTATIC SYSTEM

1

6564143

DIPSTICK

2

6564146

TUBE

3

57D6

NUT 5

4

84G3716

SCREW 5

5

5HM35

HOSECLAMP

6

6714557

HOSE hyd fill

7

1312337

ELBOW W/Ref. 17

8

79K16

O RING 10

9

6729982

SCREEN Was 6714555 - A

10

6729189

SEAL

11

17C620

BOLT

12

6714556

TANK

13

BREATHER NLA - Order 6684923 breather vent and index when tightening to make room for the throttle cable - Was 6648944 - A

14

6729723

HOSE

15

6728009

HOSE

16

VALVE See Illustration HYDRAULIC VALVE/ PE1101

17

79K10

O RING 10 flat boss face

17

99K10

O'RING tapered boss face

18

ELBOW NLA - W/Ref. 17 - Order 6736533 Tee & 15KB00606B Connector - Was 6809403 - A

18

97K6

O RING flared end

18

97K8

O-RING flared end

19

6532572

HOSE

20

HOSE NLA - 9.25''(235mm) long - Order Ref. 45

21

36K6

CAP

22

21KB0808

FTG HYD STRAIGHT TEE W/Ref. 23 - Was 21KN00006B - A

23

79K8

O RING 10

23

99K8

O-RING tapered boss face

24

ELBOW NLA - W/Ref. 17 - flat boss face - Was 6715716 - A

24

TEE NLA - W/Ref. 17 - tapered boss face - Was 6715187 - A

24

97K8

O-RING flared end

24

17KB0810

FITTING, HYD ELBOW W/Ref. 17 - flat boss face

24

21KB0810

FITTING, HYD TEE W/Ref. 17 - flat boss face

25

6665385

VALVE BICS

26

17K6

ELBOW W/Ref. 23

26

97K8

O-RING flared end

27

6564086

OIL COOLER

28

6598908

ELBOW

29

6553411

BUSHING

30

84G3112

BOLT 5

31

6728146

TUBELINE

32

6677652

FILTER, OIL HYD

33

6563977

INSERT

34

6729316

BLOCK

35

17C612

BOLT 5

36

40K2

PLUG

37

6734350

POPPET Was 6562654 - A

38

24K7

PLUG W/Ref. 40 - Was 90KN00010B - B

39

6563978

SPRING

40

95K16

O-RING

41

6562656

ADAPTER W/Ref. 17

42

6707758

HOSE

43

15K5

FITTING W/Ref. 52

44

PUMP See Illustration HYDROSTATIC PUMP/ B17504

45

6577821

HOSE bulk - sold per foot

46

6715183

ELBOW W/Ref. 58 - check boss face to determine correct replacement o-ring

47

6727935

TEE W/Ref. 8

48

6559447

WASHER

49

6564151

BAND

50

6532571

HOSE

51

755056

CONNECTR W/Ref. 52

52

79K6

O RING 10

53

6727945

HOSE

54

95D6

NUT

55

6714124

TUBELINE

56

6707759

HOSE

57

ELBOW NLA - W/Ref. 17 - flat boss face - Was 6715716 - A

57

97K8

O-RING flared end

57

17KB0810

FITTING, HYD ELBOW W/Ref. 17 - flat boss face

58

99K5

O-RING tapered boss face

58

79K5

O RING 10 flat boss face

59

6732267

HOSE suction - Was 6725965 - B

60

1314348

CONNECTOR BEAD TUBE

61

5HM23

CLAMP

62

5HM42

HOSECLAMP

63

12K6

UNION

64

15K7

FITTING W/Ref. 17

65

42HS04

CLAMP, HOSE

66

30H30

CLAMP
