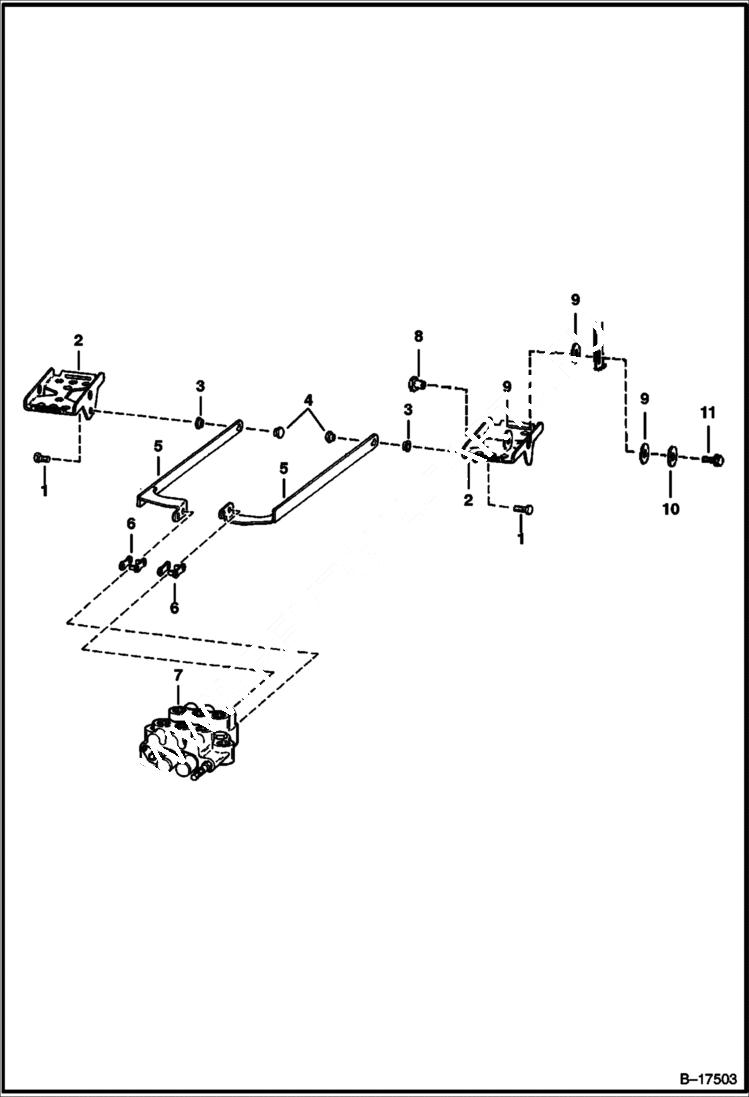

Запчасти Bobcat 400s CONTROL PEDALS HYDRAULIC SYSTEM

1

17C610

BOLT

2

6707056

PEDAL

3

6598906

BUSHING nylon

4

6559479

NUT

4

6559479

NUT

4

7209783

NUT, RETAINING Was 6729750 - A

4

7209783

NUT, RETAINING Was 6729750 - A

5

6731725

BAR Was 6707053 - A

6

6515186

CONNECTOR connector

7

VALVE See Illustration HYDRAULIC VALVE/ PE1101

8

6594298

NUT Retaining

9

6700170

WASHER Nylon

9

6700170

WASHER

9

6700170

WASHER Nylon

9

6700170

WASHER

10

872229

WASHER

11

35C616

BOLT 5
