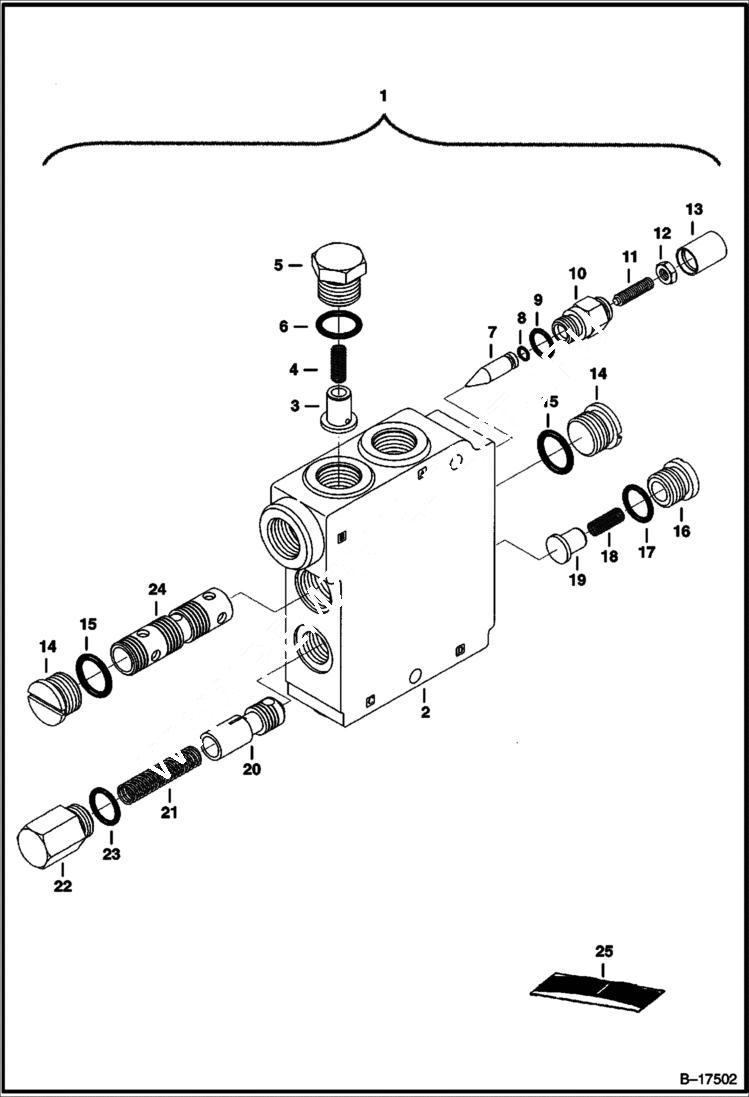

Запчасти Bobcat 400s BUCKET POSITIONING VALVE HYDRAULIC SYSTEM

1

6665920

VALVE Ref. 2-24

2

BODY NSS

3

6647783

LOAD CHECK

4

6647785

SPRING load check

5

6647784

PLUG W/Ref. 6

6

79K10

O RING 10

7

6647777

PIN

8

6647677

SECTION

9

79K6

O RING 10 Was 6634874 - A

10

6647778

CAP adjustment

11

6648293

SCREW

12

8D4

NUT Was 6631561 - A

13

6667676

COVER

14

6676543

PLUG Was 6647780 - A

14

79K10

O RING 10

15

58K116

O RING 10

16

6647781

PLUG W/Ref. 17

17

O-RING NSS

18

1550482

SPRING

19

6647776

PLUNGER

20

SPOOL NSS - unloading

21

6648294

SPRING

22

6647779

PLUG W/Ref. 23

23

O-RING NSS

24

SPOOL NSS - flow divider

25

6647786

SEAL KIT Ref. 6, 8, 9, 13, 15, 17 & 23
