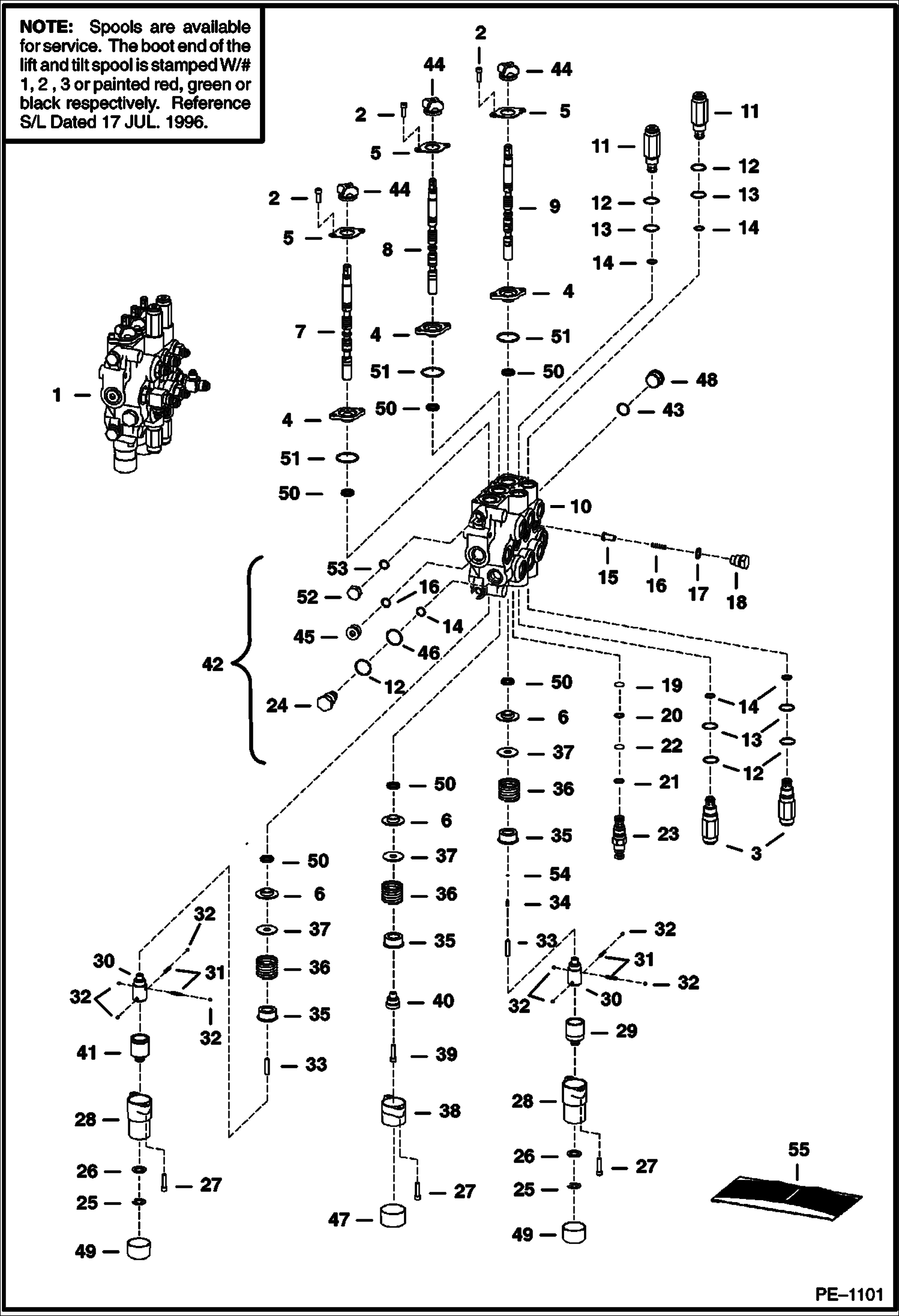

Запчасти Bobcat 400s HYDRAULIC VALVE HYDRAULIC SYSTEM

1

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E2310 See BTI347 NLA - Ref. 2 - 53 - Was 6809302 - A

2

29G412

BOLT

3

6678573

VALVE relief - white - W/Ref. 12-14 - Was 6676946 - A

4

6589565

BUSHING

5

6589564

RETAINER

6

6595663

BUSHING Seal Backup

7

SPOOL NLA - lift - #1 or Red - Order 7108242 - Was 6677660 - A

7

SPOOL NLA - lift - #2 or Green - Order 7108251 - Was 6677661 - A

7

7108251

SPOOL, LIFT Was 7101151

8

SPOOL NLA - tilt - #1 or Red - Order 7108242 - Was 6677662 - A

8

SPOOL NLA - tilt - #2 or Green - Order Ref. 7108242 - Was 6677663 - A

8

7108242

SPOOL, TILT

9

6589663

SPOOL auxiliary

10

BODY NSS

11

6682474

VALVE,ANTICAV REL anticav relief - blue - W/Ref. 12-14 - Was 6678572 - A

12

79K10

O RING 10

13

80K14

BACK-UP WASHER Was 73K000014B - B

14

58K014

O-RING 10 back-up washer required

14

6677106

O-RING back-up washer not required

15

6592115

SEAT

16

6592117

SPRING, LOAD CHECK

17

79K8

O RING 10

18

6592116

NUT

19

O-RING NSS

20

WASHER NSS

21

O-RING NSS

22

WASHER NSS

23

6676195

VALVE main relief - 2450 psi - W/Ref. 19-22

23

6661328

SEAL KIT Ref. 19-22

24

6592720

PLUG W/Ref. 12-14

25

799119

RING

26

6592098

WASHER

27

29G416

BOLT

28

6589226

COVER, END 0.63'' flange

29

6531270

SLEEVE, DETENT lift

30

6587575

ADAPTER

31

6592107

SPRING

32

6592105

BALL

33

6586918

SCREW

34

6596807

PLUG plastic - 0.46'' long

35

6592100

COLLAR

36

6587580

SPRING

37

7211397

WASHER, SPRING Was 6587523 - A

38

7101345

BONNET, DETENT HYD VALVE Was 6587633 - A

39

30G416

BOLT

40

6592109

ADAPTER

41

6595027

SLEEVE auxiliary

42

SHORT BLOCK NSS - Order Ref. 1

43

95K12

O-RING tapered boss face

43

79K12

O RING 10

44

6587763

BOOT

45

90K7

PLUG W/Ref. 46 - tapered boss face - Was 90KN00007B - A

45

47K7

PLUG W/Ref. 46 - flat boss face

46

95K10

O-RING tapered boss face

46

79K10

O RING 10 flat boss face

47

6662848

CAP

48

90K8

PLUG W/Ref. 43 - tapered boss face - Was 90KV00008B - A

48

24K8

PLUG

49

6660644

CAP

50

6683274

SEAL, SPOOL 10 spool - Was 6665846 - A

51

1K127

O-RING 10 Was 93K127 - A

52

6816855

PLUG W/Ref. 53 - Was 6534973 - A

53

79K7

O RING 10

54

54K20002

O'RING 10

55

6809425

SEAL KIT Upper Deck - Ref. 12-14 & 17

55

6816250

KIT, SEAL Spool - Was 6803605 - A

55

6661328

SEAL KIT Main Relief

55

6816251

KIT, SEAL See BTI374 - Ref. 12-14, 17, 19-22, 34, 44 & 49 - Was 6816717 - A
