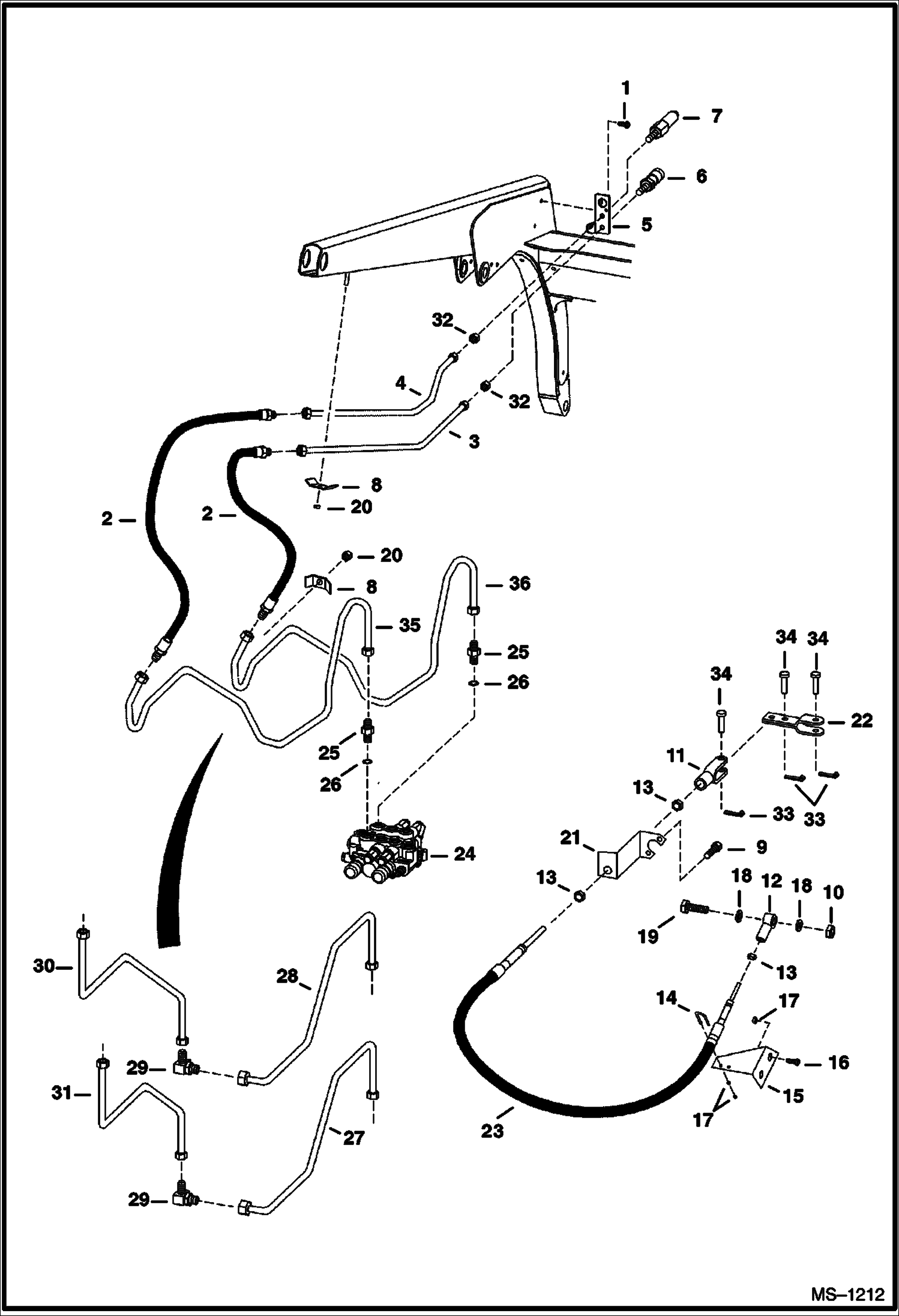

Запчасти Bobcat 400s AUXILIARY HYDRAULICS HYDRAULIC SYSTEM

1

84G3712

BOLT 5

2

6728013

HOSE

3

6711637

TUBELINE

4

6711636

TUBELINE

5

6727541

BRACKET aux line

6

6676559

COUPLER, FF FEMALE 1/2''

7

6676560

COUPLER, FF MALE 1/2''

8

6500989

CLAMP

9

29G416

BOLT Was 73G000416B - B

10

85D4

NUT 5

11

2J4200

CLEVIS

12

6593671

CONNECTOR

13

8D4

NUT

14

6592766

U-BOLT

15

6564802

MOUNT

16

17C512

BOLT 5

17

85D5

NUT 5

18

25E13

WASHER 5

19

17C416

BOLT

20

95D6

NUT

21

6729088

GUIDE

22

6707600

ARM

23

6599469

CABLE

24

VALVE See Illustration HYDRAULIC VALVE/ PE1101

25

731794

CONNECTR flat boss face

25

6715184

ADAPTER W/Ref. 26 - tapered boss face

25

15KB0810

FITTING, HYD CONNECTOR W/Ref. 26

25

97K8

O-RING flared end

26

79K10

O RING 10 flat boss face

26

99K10

O'RING tapered boss face

27

6714356

TUBELINE

28

6714358

TUBELINE

29

77F6

ELBOW W/ O-rings - Was 77FN00006B - A

29

97K8

O-RING flared end

30

6714355

TUBELINE

31

6714357

TUBELINE

32

86F6

NUT

33

1F208

PIN

34

1304227

PIN

35

6730043

TUBELINE

36

6730044

TUBELINE
