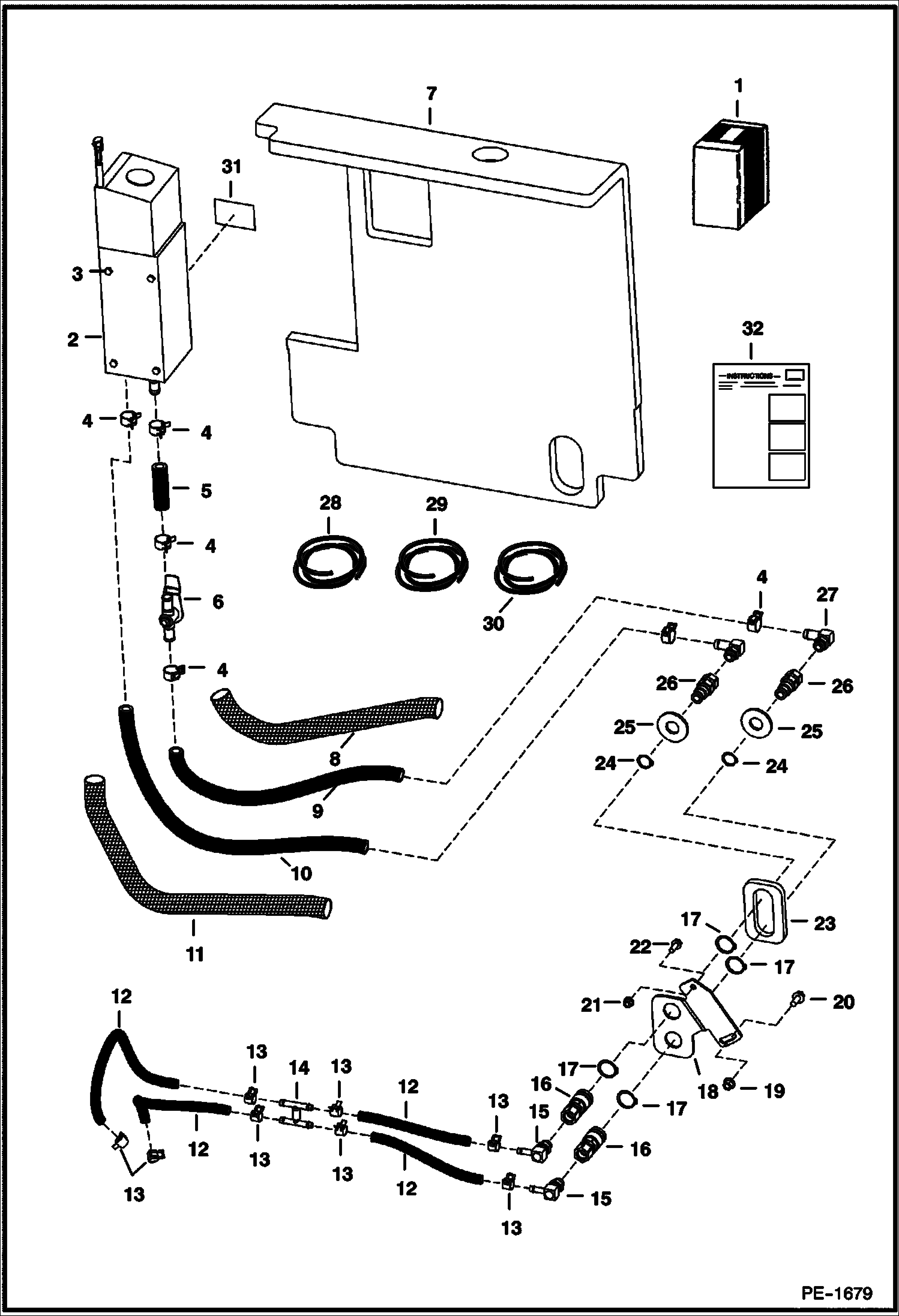

Запчасти Bobcat 400s HEATER KIT ACCESSORIES & OPTIONS

1

6733893

KIT, HEATER Ref. 2 - 23

2

6679136

CAB HEATER See Illustration HEATER - MOBILE CLIMATE CONTROL/ B26439

3

17C412

BOLT 5

4

5HM23

CLAMP

5

HOSE

6

VALVE heater

7

6733859

INSULATION CAB BACK

8

HOSE COVER NLA - 19''(483mm) long - Order Ref. 30

9

HOSE NLA - 20''(508mm) long - Order Ref. 28

10

HOSE NLA - 26''(660mm) long - Order Ref. 28

11

HOSE COVER NLA - 25''(635mm) long - Order Ref. 30

12

HOSE NLA - 10''(254mm) long - Order Ref. 29

13

5HM15

CLAMP

14

6680949

FITTING H PATTERN h pattern

15

6680951

FITTING 90 DEG BARB

16

6680917

COUPLER, FEM BRASS

17

5JM32

SNAP RING

18

6732857

BRACKET

19

83D6

NUT 5

20

35C614

BOLT

21

83D5

NUT 5

22

35C514

BOLT

23

6733884

SEAL cab

24

5JM24

CIRCLIP

25

6735284

WASHER

26

6680918

COUPLER, MAL BRASS

27

6680952

FITTING 90 DEG BARB

28

889269

HOSE BULK/FT bulk - sold per foot

29

6586251

HOSE bulk - sold per foot

30

6649389

HOSE COVER bulk - sold per foot

31

6732775

DECAL 463 HEATER

32

6902034

INSTRUCTIONS
