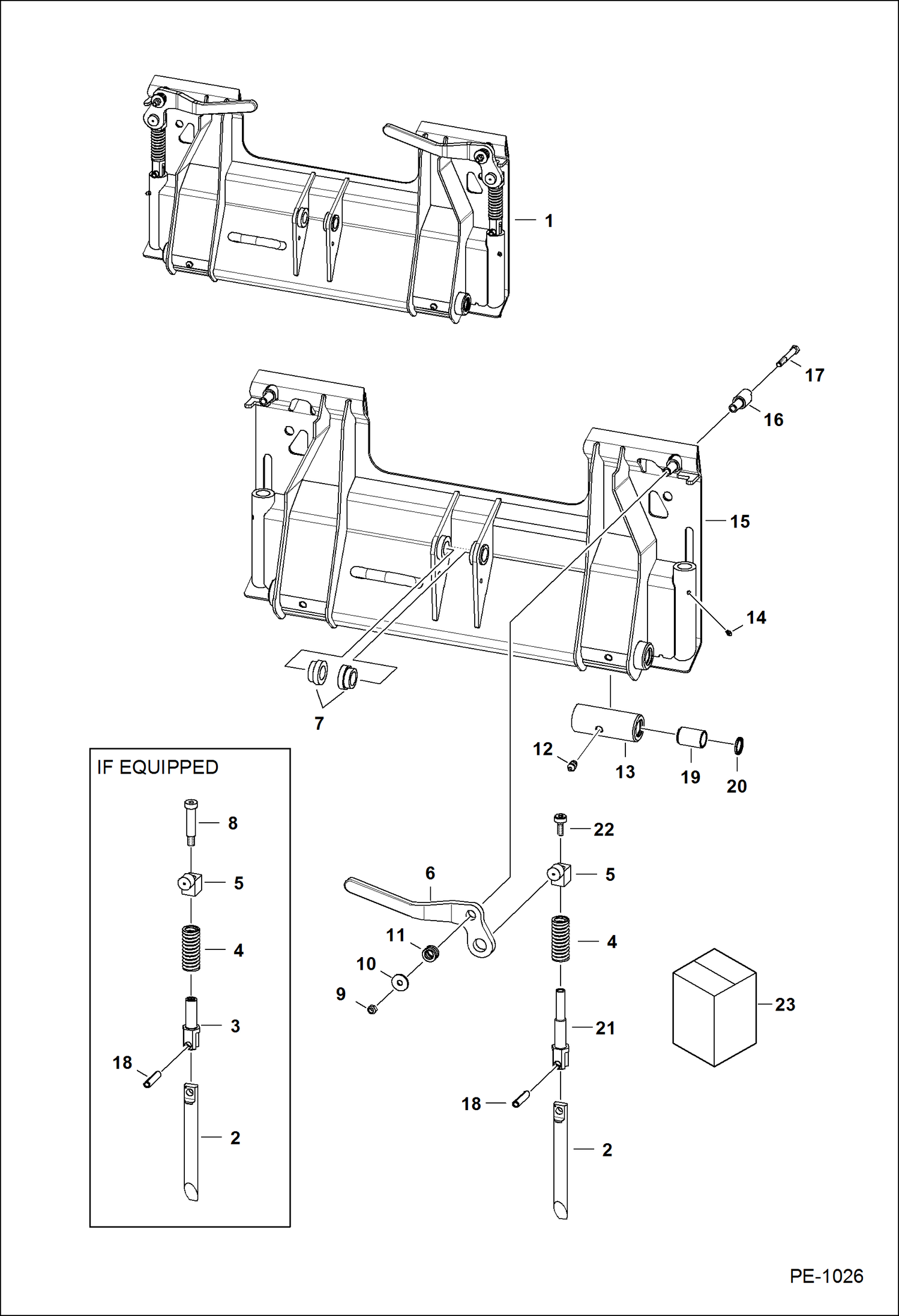

Запчасти Bobcat 400s BOB-TACH MAIN FRAME

1

6727229

BOB-TACH See Illustration DECALS/ B17511 Also Order 6565367 - Was 6726597 - A

2

6737363

WEDGE Was 6726899 - A

3

6704248

PIVOT, WEDGE

4

6578253

SPRING, COMPRESSION

5

6704240

PIVOT ASSY.

6

6719501

LEVER RH

6

6719502

LEVER LH

7

6563830

BUSHING

8

6728473

BOLT, SHOULDER pre-applied thread locker

9

85D6

NUT, 5

10

619021

WASHER, 5 Was 6557831 - B

11

6704453

SPRING

12

743332

FITTING, GREASE 5

13

6726436

BUSHING weld on

13

6809825

BUSHING wear

14

10H35

FITTING, GREASE 10

15

FRAME NLA

16

6702958

BUSHING, WELD-ON

17

17C648

BOLT 5

18

14J5032

PIN, STRAIGHT

19

6809825

BUSHING wear

20

1990599

WIPER
