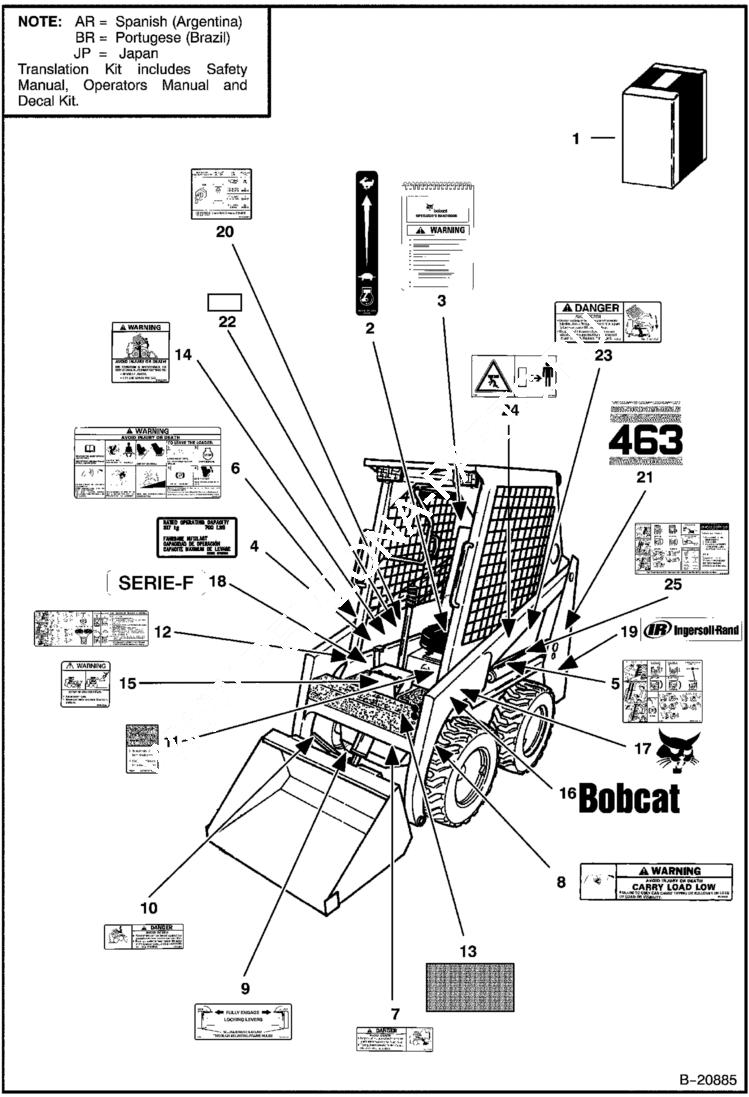

Запчасти Bobcat 400s DECALS ACCESSORIES & OPTIONS

1

6902214

DECAL KIT

1

6728665AR

KIT decal - SEE NOTE

1

6728665BR

KIT decal - SEE NOTE

1

6728665JP

KIT decal - SEE NOTE

1

6734544AR

KIT translation- SEE NOTE

1

6734544BR

KIT translation- SEE NOTE

2

6735140

DECAL, THROTTLE Was 6564806 - A

3

6708375

HANDBOOK, OPERATOR'S W/WIRE ROPE

3

7114944

KIT handbook - W/Wire Rope

3

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

3

6558310

SLEEVE wire rope

4

6705434

DECAL capacity

5

6731571

DECAL operating

6

6579510

DECAL warning

7

6702302

DECAL, DANGER

8

6579528

DECAL, WARNING carry load low

9

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

10

6702301

DECAL, DANGER

11

6711840

DECAL

12

6727926

DECAL, OPERATION hand & foot controls - not in kit - Was 6718703 - A

13

6677814

SAFETY TREAD 6'' x 28'' (152 mm x 711 mm)

13

6540714

SAFETY TREAD 5'' x 11'' (127 mm x 279 mm)

13

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

14

6702255

DECAL operating

15

6710358

DECAL warning

16

6731336

DECAL Bobcat - black

17

6732149

DECAL Bobcat Head - L.H.

17

6731337

DECAL, LOGO BOBCAT HEAD Bobcat Head - R.H. - can be used on both sides

18

6714858

DECAL ''F'' Series

19

DECAL NLA - IR Logo - Black - Was 6735864 - A

20

6708105

DECAL Preheat

21

6733367

DECAL 463 Model - Used On Both Sides - Was 6728139 - B

22

6715912

DECAL 40th Anniv.

23

6717343

DECAL, DANGER

24

6713507

DECAL stay clear - european - Not in kit

25

7107594

DECAL operation/preheat
