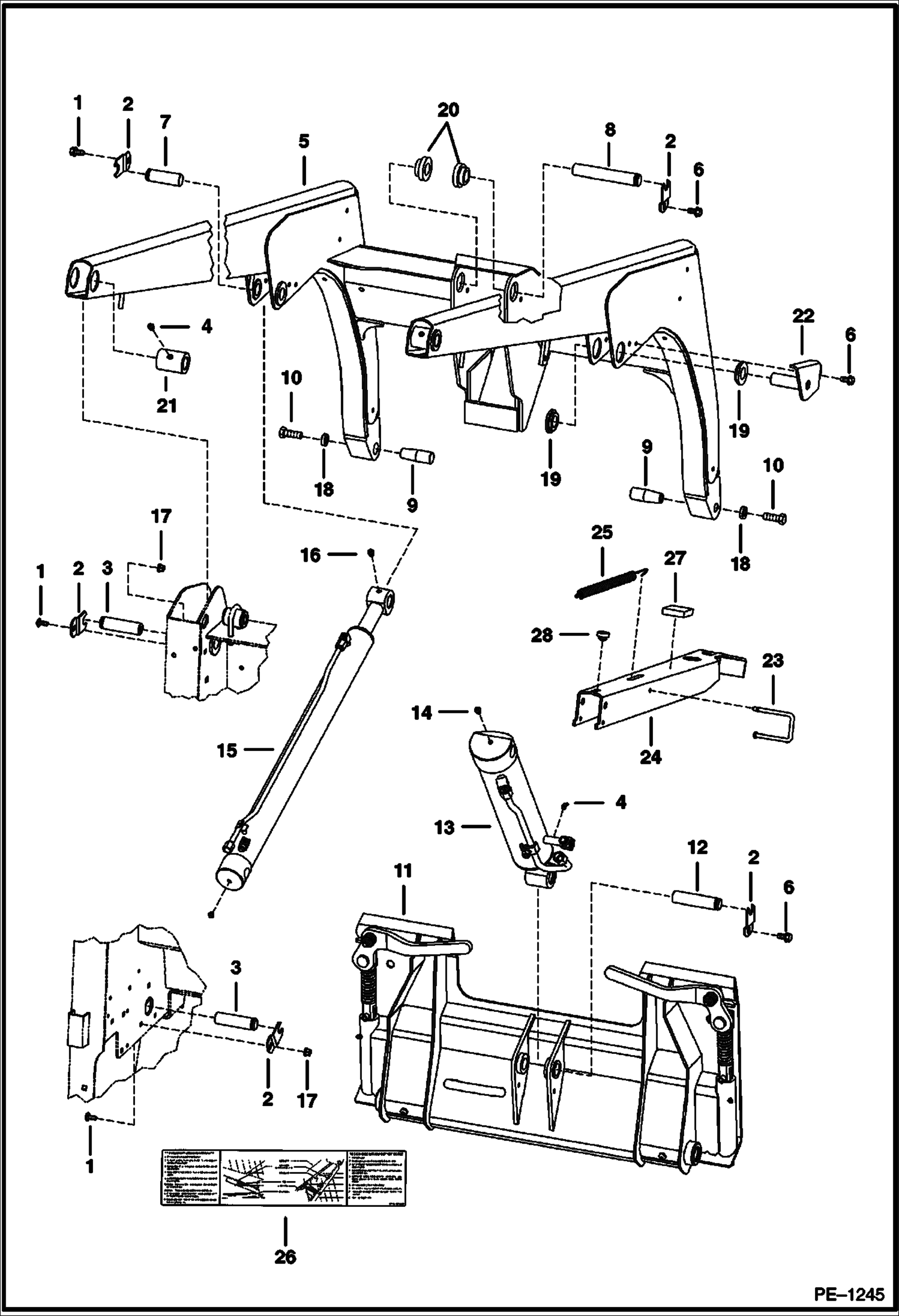

Запчасти Bobcat 400s LIFT ARMS & BOB-TACH MAIN FRAME

1

10C512

BOLT

2

6586307

RETAINER

3

6563848

PIN

4

10H25

FITTING, GREASE 5

5

7144100

LIFT ARM Also Order 6579528 , 6569233 6727449 , 6727448 - Was 6726519 - A

6

84G3712

BOLT 5

7

6563847

PIN

8

6563846

PIN

9

6564198

PIN, PIVOT TAPERED

10

17C824

BOLT 5

10

33C824

BOLT w/ pre-applied loctite

11

BOB-TACH See Illustration BOB-TACH/ PE1026

12

6563845

PIN rod end - drilled

12

6731749

PIN rod end - grooved

13

CYLINDER See Illustration TILT CYLINDER/ PE1349 TILT

14

10H35

FITTING, GREASE 10

15

CYLINDER See Illustration LIFT CYLINDER/ B6942 LIFT

16

11H25

FITTING10

17

83D5

NUT 5

18

6701097

WASHER

19

6563829

BUSHING Weld On

20

6563830

BUSHING Weld On

21

6563831

BUSHING Weld On

22

6706663

PIN

23

6714811

PIN Retainer

24

6728115

SUPPORT Lift arm

25

6579072

SPRING For lift arm support

26

6711659

DECAL

27

6704436

PAD

28

6519178

BUMPER
