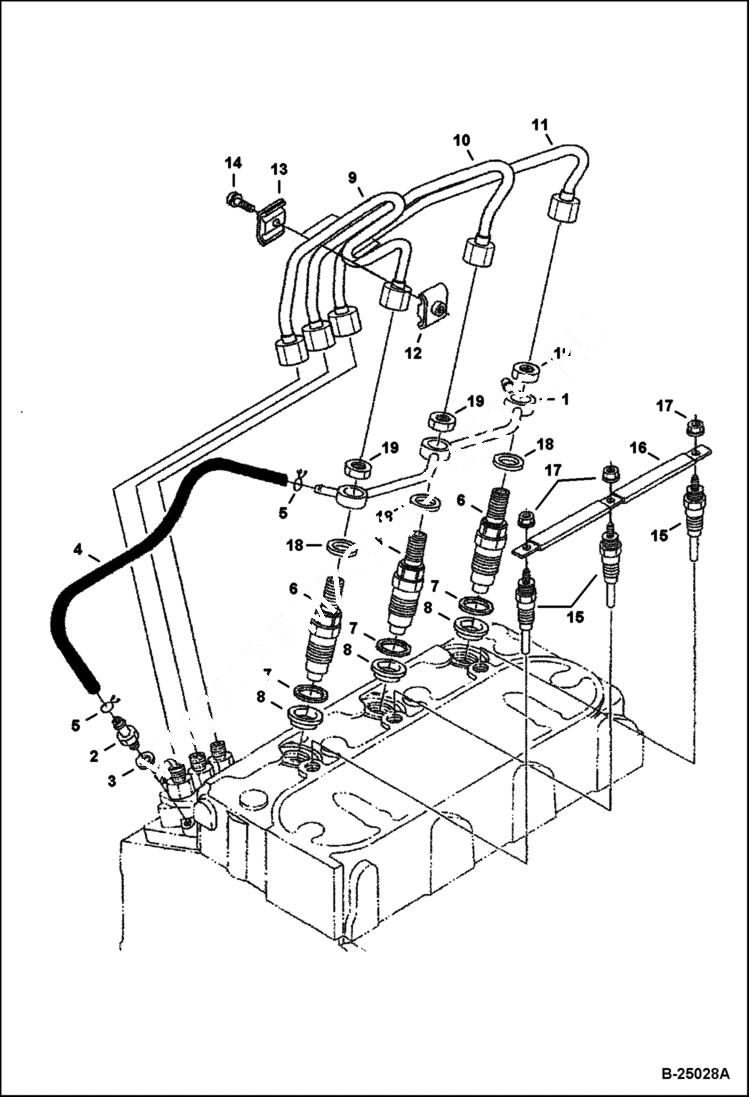

Запчасти Bobcat 400s INJECTOR NOZZLES (Kubota - D1005-E3B-BC-3)(Tier IV Replacement) REPLACEMENT ENGINE

1

6672404

PIPE ASSY

2

6657446

SCREW

3

3974972

GASKET

4

6670464

HOSE W/Ref. 5

5

6654718

CLAMP pipe

6

HOLDER See Illustration NOZZLE HOLDER/ B26342 W/nut - Was 6687911 - B

7

6655218

GASKET

8

6655872

HEAT SEAL

9

6687910

PIPE

10

6657643

PIPE

11

6657644

PIPE

12

6652688

CLAMP

13

6652689

CLAMP

14

3974260

SCREW W/washer

15

6698618

GLOW PLUG W/nut

16

6672407

CORD

17

6670472

NUT
