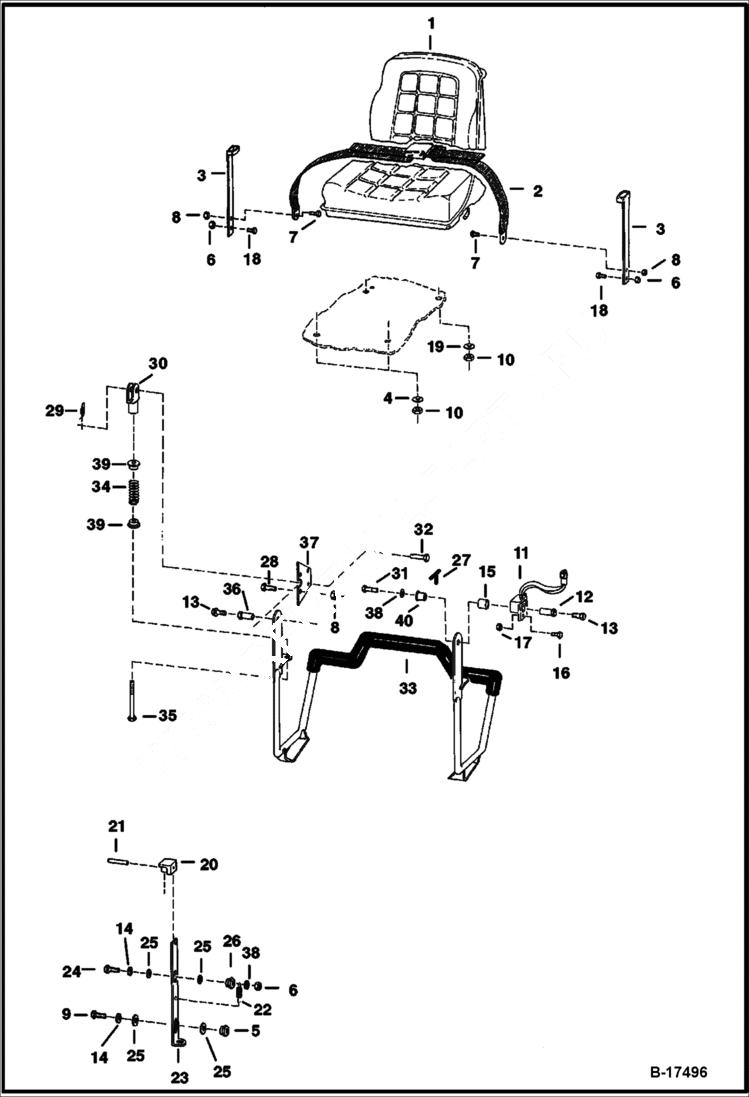

Запчасти Bobcat 400s SEAT & SEAT BAR MAIN FRAME

1

SEAT See Illustration SEAT/ B14720

2

6675074

SEAT BELT W/O spring plates

3

6725373

SPRING PLATE

4

619021

WASHER, 5

5

6594298

NUT

6

85D6

NUT, 5

7

17C716

BOLT

8

85D7

NUT

9

35C616

BOLT 5

10

59D5

NUT 5

11

7105252

SENSOR, SEAT BAR POSITION Also Order Ref. 41 - Was 6670652 - A

12

6706685

BUSHING

13

35C612

BOLT

14

872229

WASHER

15

6680473

BUSHING, MAGNET - A

16

35C410

BOLT 5 fastens thru tab - 5/8'' (15,9 mm)

17

83D4

NUT 10 fastens thru tab

18

17C612

BOLT 5

19

6571991

GUIDE

20

6702343

BLOCK

21

14J2512

PIN 5

22

6594284

SPRING

23

6704559

LOCK L.H. - W/Ref. 20, 21 - Was 6704557 - A

23

6704558

LOCK R.H. - W/Ref. 20, 21 - Was 6704556 - A

24

17C624

BOLT 5

25

6700170

WASHER plastic

26

6559479

NUT

27

6680523

KEY,MAGNETIC magnet bushing - Was 6664881 - A

28

17C712

BOLT

29

6631418

RING, RETAINING

30

6713589

CLEVIS

31

17C608

BOLT

32

4F6106

PIN

33

6713886

SEAT BAR for Use W/ compression spring

34

6701535

SPRING

35

6713887

BOLT

36

6706962

BUSHING

37

6710660

MOUNT

38

25E17

WASHER 5

39

6710659

BUSHING

40

6680441

BUSHING keyed - Was 6664882 - A
