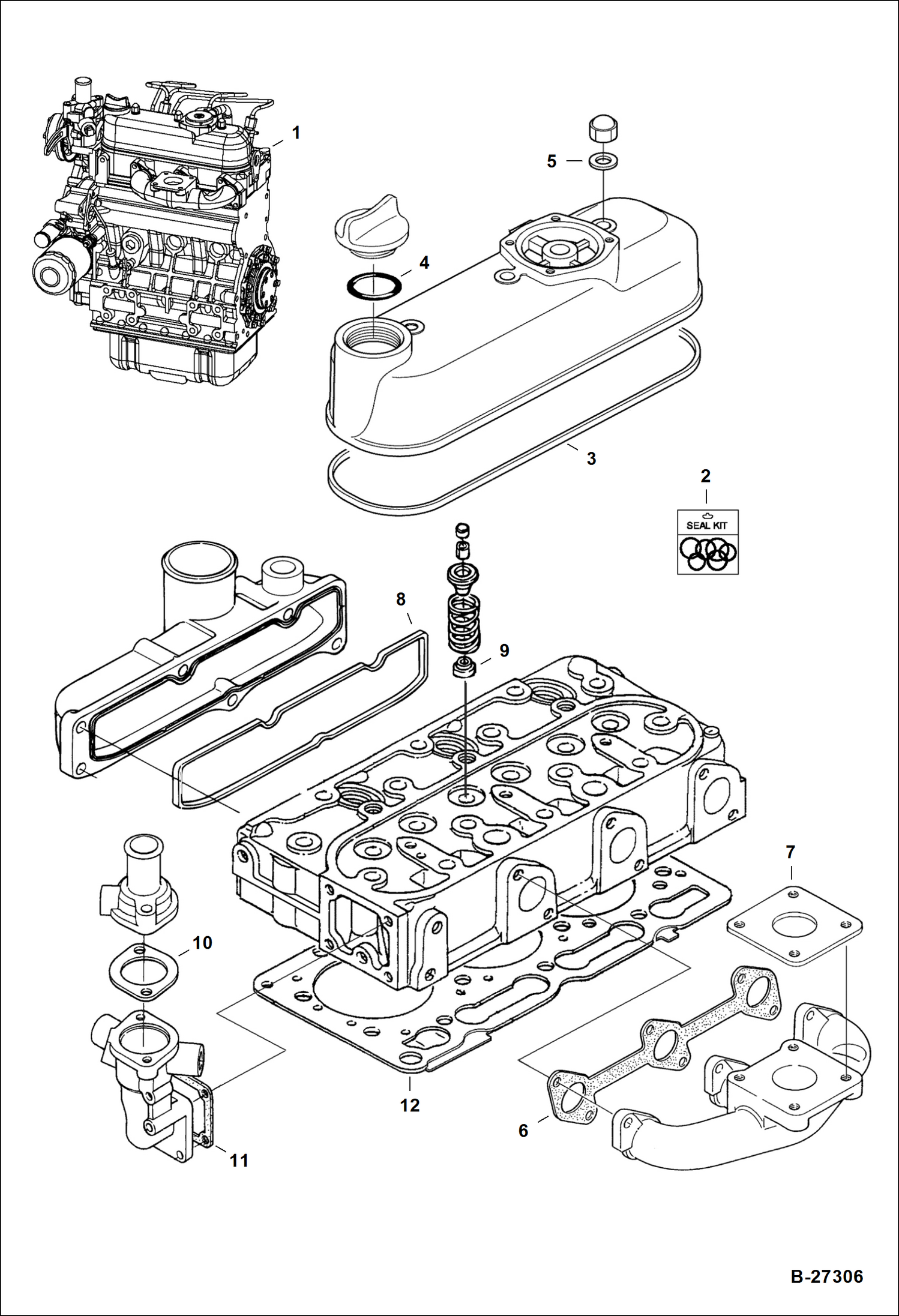

Запчасти Bobcat 400s ENGINE & UPPER GASKET KIT (Kubota - D1005-E3B-BC-3)(Tier IV Replacement) REPLACEMENT ENGINE

1

6692561

ENG, D1005 23.5 HP EPA T4 / STG IV

1

6692561REM

ENGINE, D1005-E3B-BC-3

2

7000290

KIT, GASKET ENG UPPER Ref. 3-12

3

6672365

GASKET See Illustration ROCKER ARM COVER/ B25023 - valve cover

4

6683009

O-RING See Illustration ROCKER ARM COVER/ B25023 - oil filler cap

5

6599116

GASKET See Illustration ROCKER ARM COVER/ B25023 - valve cover nut

6

6672441

GASKET See Illustration INTAKE & EXHAUST MANIFOLDS/ B25031 - exhaust manifold

7

6960259

GASKET See Illustration INTAKE & EXHAUST MANIFOLDS/ B25031 - muffler

8

6672443

GASKET See Illustration INTAKE & EXHAUST MANIFOLDS/ B25031 - intake manifold

9

6672436

SEAL See Illustration ROCKER ARM & VALVES/ B25029 - valve stem

10

6684863

GASKET See Illustration WATER FLANGE & THERMOSTAT/ B15041 - thermostat

11

6657583

GASKET See Illustration WATER FLANGE & THERMOSTAT/ B15041 - thermostat housing

12

6687906

GASKET See Illustration CYLINDER HEAD/ B27216 - cylinder head
