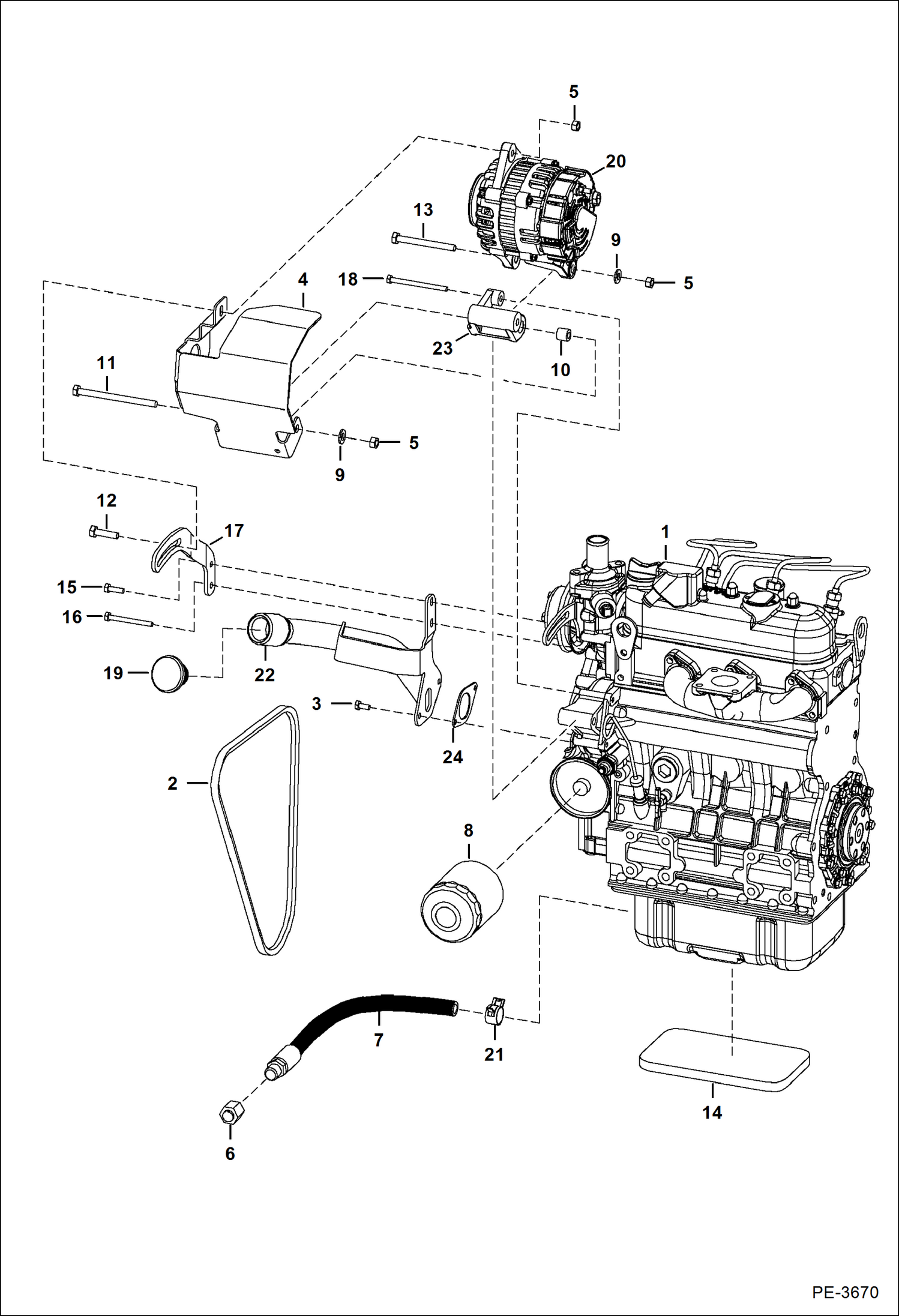

Запчасти Bobcat 400s ENGINE & ATTACHING PARTS (Alternator Mounting, Fuel Fill) (Kubota-D1005-E3B-BC-3)(Tier IV Replacement) REPLACEMENT ENGINE

1

ENGINE See Illustration ENGINE & UPPER GASKET KIT/ B27306

2

6571857

BELT, ALT alternator

3

1CM614

SCREW

4

6733018

SHIELD belt

5

53DM8

NUT

6

36K6

CAP

7

6715530

HOSE

8

FILTER, OIL ENG See Illustration GEAR CASE/ B25022A

9

6557831

WASHER

10

6675838

BUSHING

11

1CM880

BOLT

12

4CM835

BOLT

13

1CM8110

HEX CAP S

14

6733154

SPACER foam

15

1CM620

BOLT

16

1CM660

BOLT

17

6730867

BRACKET alt.

18

1CM665

BOLT

19

6703736

CAP

20

ALTERNATOR See Illustration ALTERNATOR/ B20884

21

5HM20

CLAMP

22

6732960

OIL TUBE ASSY oil fill

23

6731765

MOUNT

24

6734475

GASKET OIL FILL oil fill
