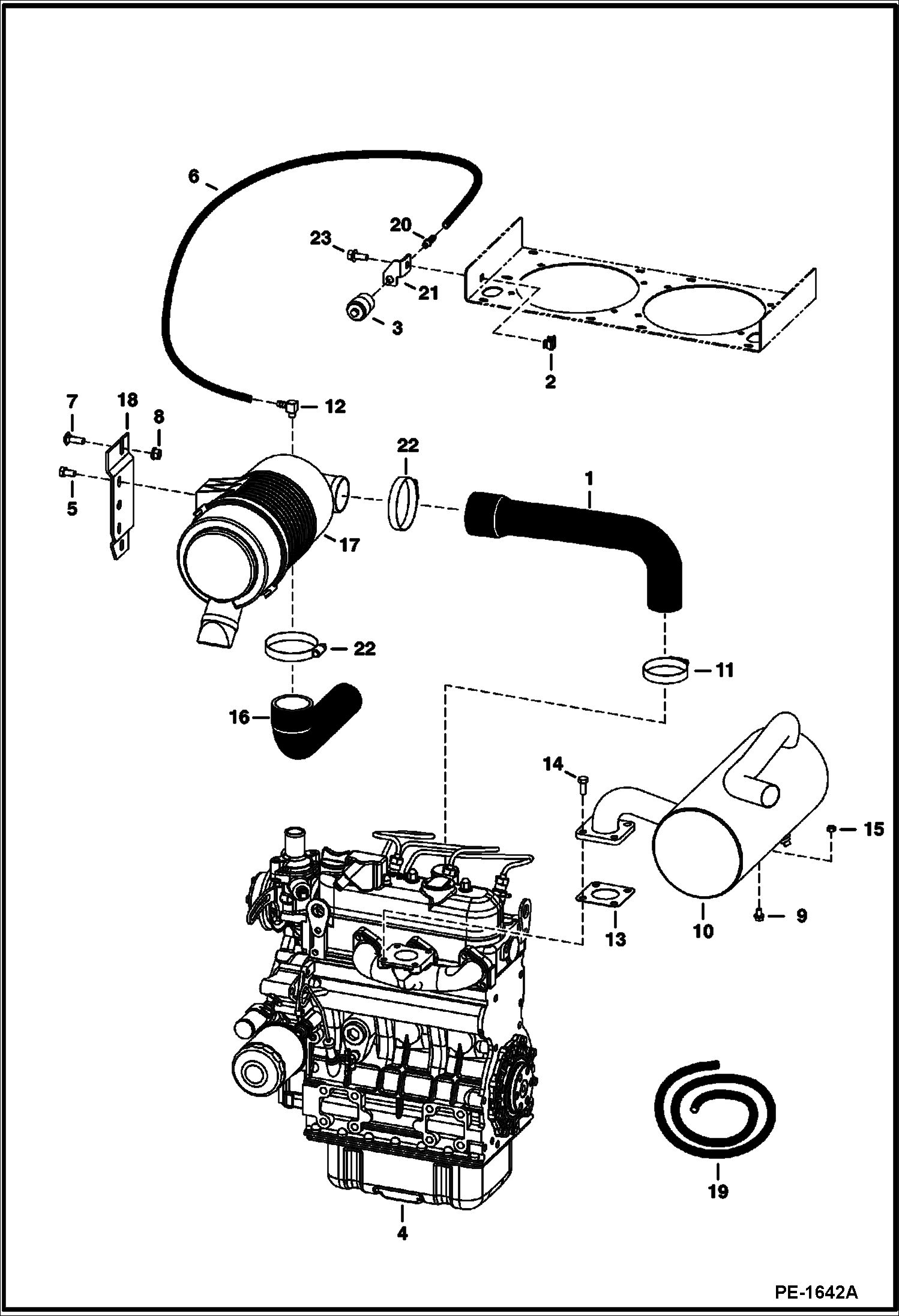

Запчасти Bobcat 400s ENGINE & ATTACHING PARTS (Intake & Exhaust) (Kubota-D1005-E3B-BC-3)(Tier IV Replacement) REPLACEMENT ENGINE

1

6731667

HOSE

2

6678765

NUT

3

6515007

GAUGE

4

ENGINE See Illustration ENGINE & UPPER GASKET KIT/ B27306

5

55CM816

BOLT

6

HOSE NLA - 18'' (457,2 mm) long - Order Ref. 19

7

37C516

BOLT

8

57D5

NUT

9

35C616

BOLT 5

10

6732282

MUFFLER spark arrestor

11

42HL250

CLAMP

12

6515156

CONNECTOR

13

6575580

GASKET muffler

14

6701123

SCREW exhaust

15

6678785

NUT

16

6731715

HOSE

17

AIR CLEANER See Illustration AIR CLEANER/ C3490A

18

6731396

MOUNT

19

6557720

HOSE

20

6505813

CONNECTOR

21

6704823

BRACKET

22

42HL300

CLAMP

23

35C508

BOLT
