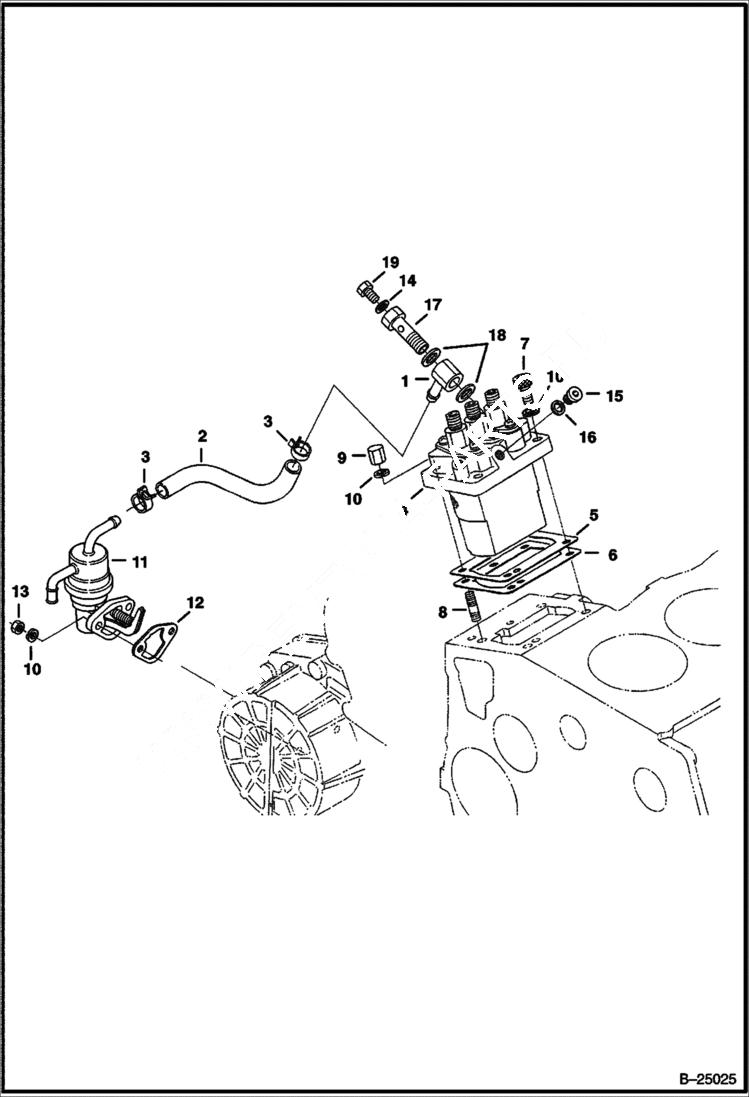

Запчасти Bobcat 400s INJECTION PUMP & FUEL PUMP (Kubota D1005 Tier II) (S/N 538911001 & Above, 539011001 & Above) POWER UNIT

1

6657598

JOINT

2

6672388

TUBE

3

6680274

CLAMP

4

6672389

INJECTION PUMP

4

6672389REM

PUMP, FUEL INJ. KUBOTA D1105

5

6670433

SHIM 0,20 mm

6

6672391

SHIM 0.25mm

6

6670777

SHIM 0,30 mm

7

6657417

BOLT

7

7000503

BOLT hex soc hd W/washer

8

6657458

STUD

9

6657461

NUT

10

6667419

WASHER

11

6672427

FUEL PUMP

12

6670782

GASKET

12

7010133

GASKET, PUMP FUEL

13

1DM6

NUT

13

6670533

NUT Was 6969818 - A

14

6657467

GASKET

15

6672396

PLUG

16

6670446

WASHER

17

6672395

BOLT

18

6657466

GASKET

19

6657445

SCREW
