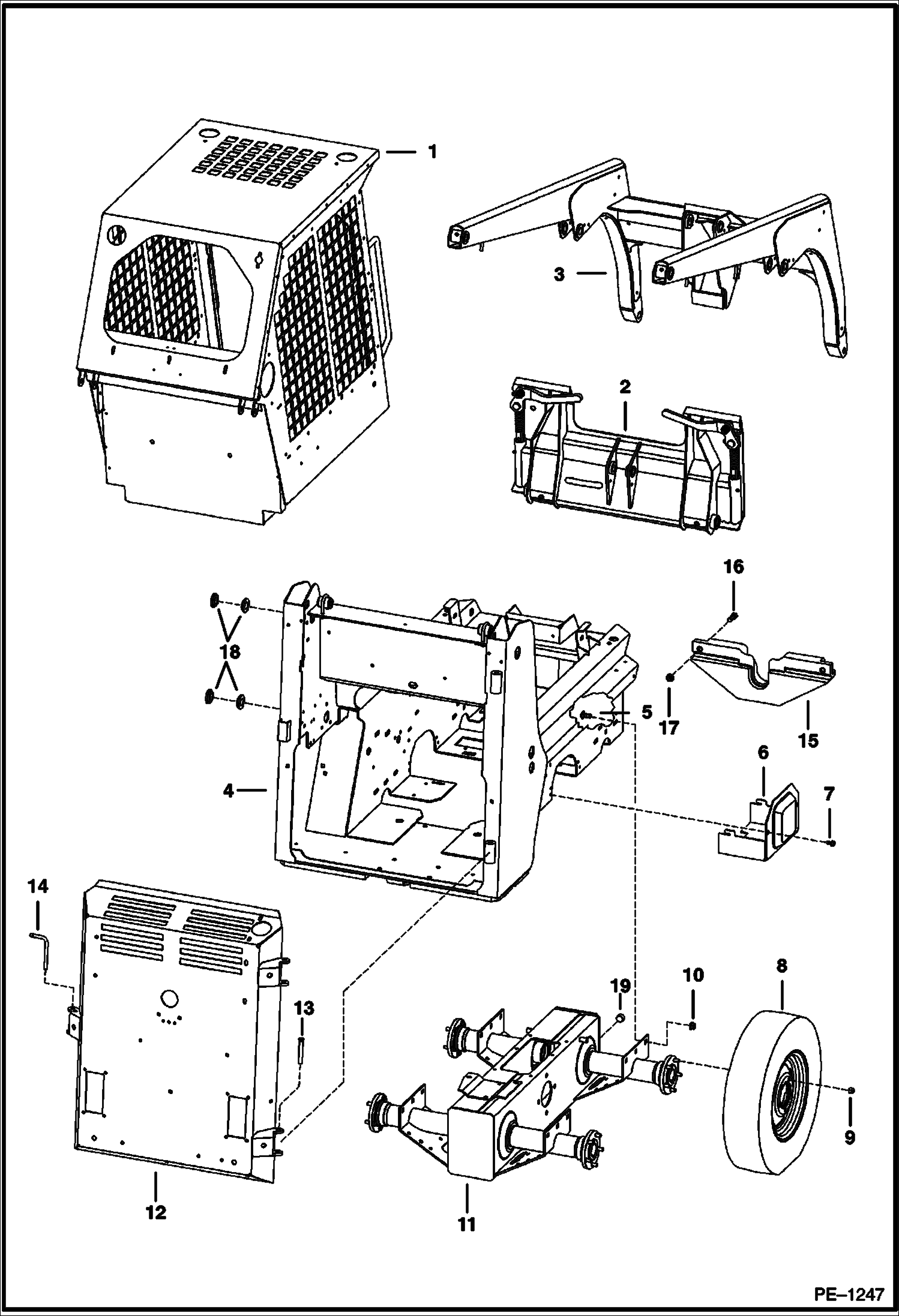

Запчасти Bobcat 400s MAIN FRAME MAIN FRAME

1

CAB See Illustration OPERATOR CAB/ E1472

2

BOB-TACH See Illustration BOB-TACH/ PE1026

3

LIFT ARM See Illustration LIFT ARMS & BOB-TACH/ PE1245

4

6727836

MAIN FRAME Also Order 6715086 battery pan & (2) of 37C624 bolt

5

37C820

BOLT

6

6718144

COVER

7

84G3712

BOLT 5

8

TIRES & RIMS See Illustration TIRES & RIMS/ B17527

9

6561152

NUT

10

83D8

NUT 5

11

CHAINCASE See BTI344 NLA - Was 6706429 - A

12

REAR DOOR See Illustration REAR DOOR/ B17497

13

6564340

PIN

14

6564192

PIN

15

6564681

WEIGHT

16

17C828

BOLT

17

57D8

NUT 10

18

6563829

BUSHING Weld On

19

6731121

PLUG Was 11F000012B - A
