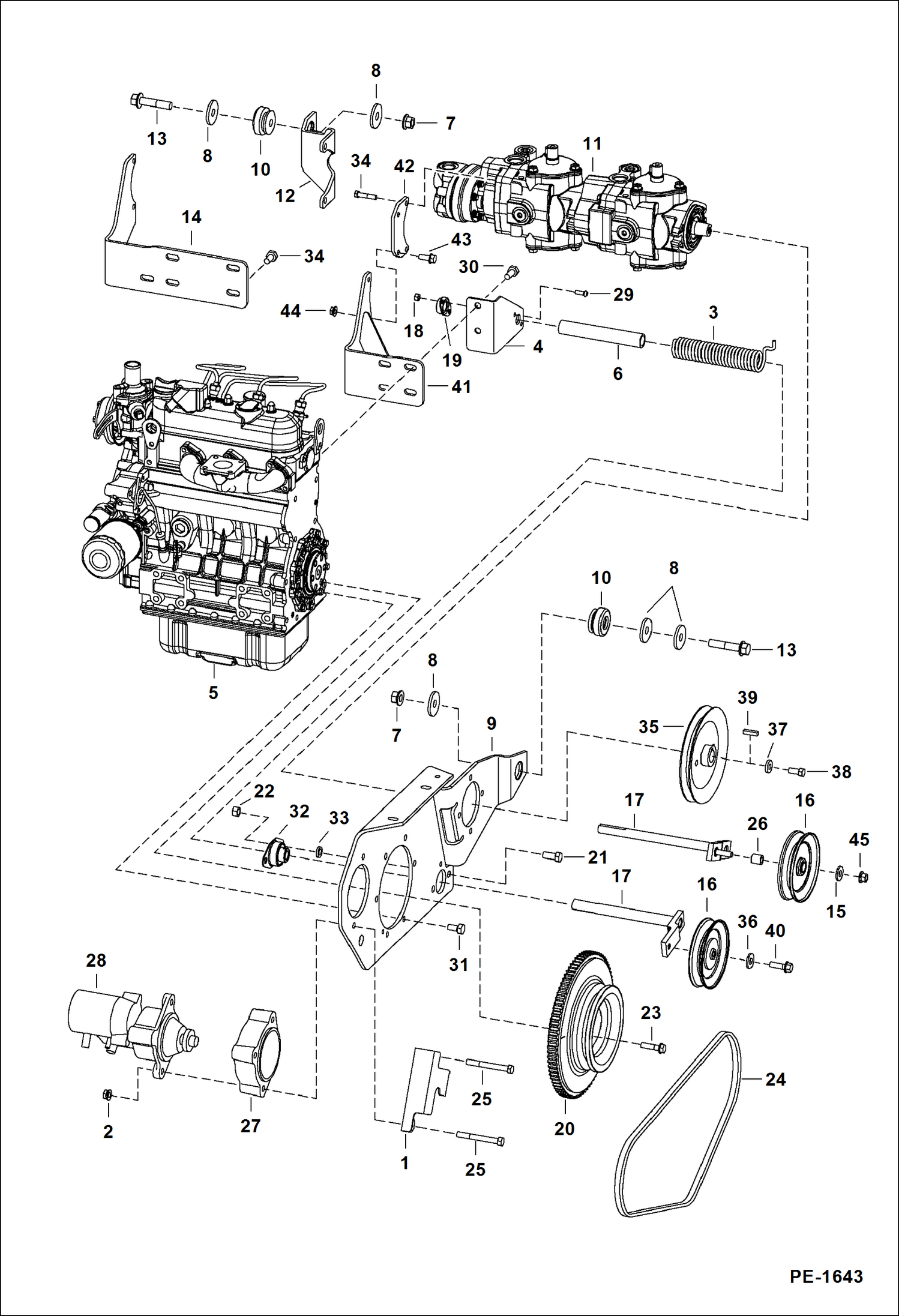

Запчасти Bobcat 400s ENGINE & ATTACHING PARTS (Belt Drive, Hyd.) POWER UNIT

1

6713874

SHIELD starter

2

83D6

NUT 5

2

83D6

NUT 5

3

6680315

SPRING, TORSION Was 6678782 - B

4

6730814

BRACKET idler

5

ENGINE See Illustration ENGINE/ B17086

6

6733662

SPACER TUBE Was 6564788 - B

7

83D8

NUT 5

8

6515817

WASHER Was 6564692 - B

9

7112187

MOUNT, ENG/PUMP Engine - Was 6730733 - A

10

6560633

DAMPENER Rubber

11

PUMP See Illustration HYDROSTATIC PUMP/ B17504

12

6727711

MOUNT

13

35C840

BOLT

14

MOUNT NLA - Order Ref 41 & 42 - Was 6730808 - A

15

6563914

WASHER not used with 6689692 pulley

16

PULLEY NLA - Order 6689692 - Was 6564011 - A

16

6689692

PULLEY, IDLER Was 6689645 - A

17

BRACKET See Service Letter SL5065 NLA - With Stud - Order 7104424 - Was 6733660 - A

17

7104424

BRACKET, IDLER

18

83D4

NUT 10 Was 61D000004B - B

19

BEARING NLA - Was 6681506 - A

19

6685122

BEARING FLANGE

20

6730760

FLYWHEEL W/Ring Gear

20

6510470

RING GEAR

21

17C716

BOLT

22

85D7

NUT

23

6661636

BOLT Washer face

24

6678973

BELT, FAN drive

25

17C652

BOLT

26

6532347

SPACER

27

6562198

SPACER

28

STARTER See Illustration STARTER/ D2396

29

25G412

CAPSCRW10

30

6719825

BOLT

31

6733378

SCREW

32

6681504

BEARING

33

6701097

WASHER

34

6677601

BOLT

35

6731766

PULLEY

36

25E18

WASHER not used with 6689692 pulley

37

616783

WASHER

38

18C616

BOLT 5

39

6598880

KEY

40

45C620

BOLT

41

7113616

MOUNT ASSY Use with Ref 42

42

7110299

MOUNT

43

35C516

BOLT 10

44

85D5

NUT 5

45

81D6

NUT Use with 6689692 pulley
