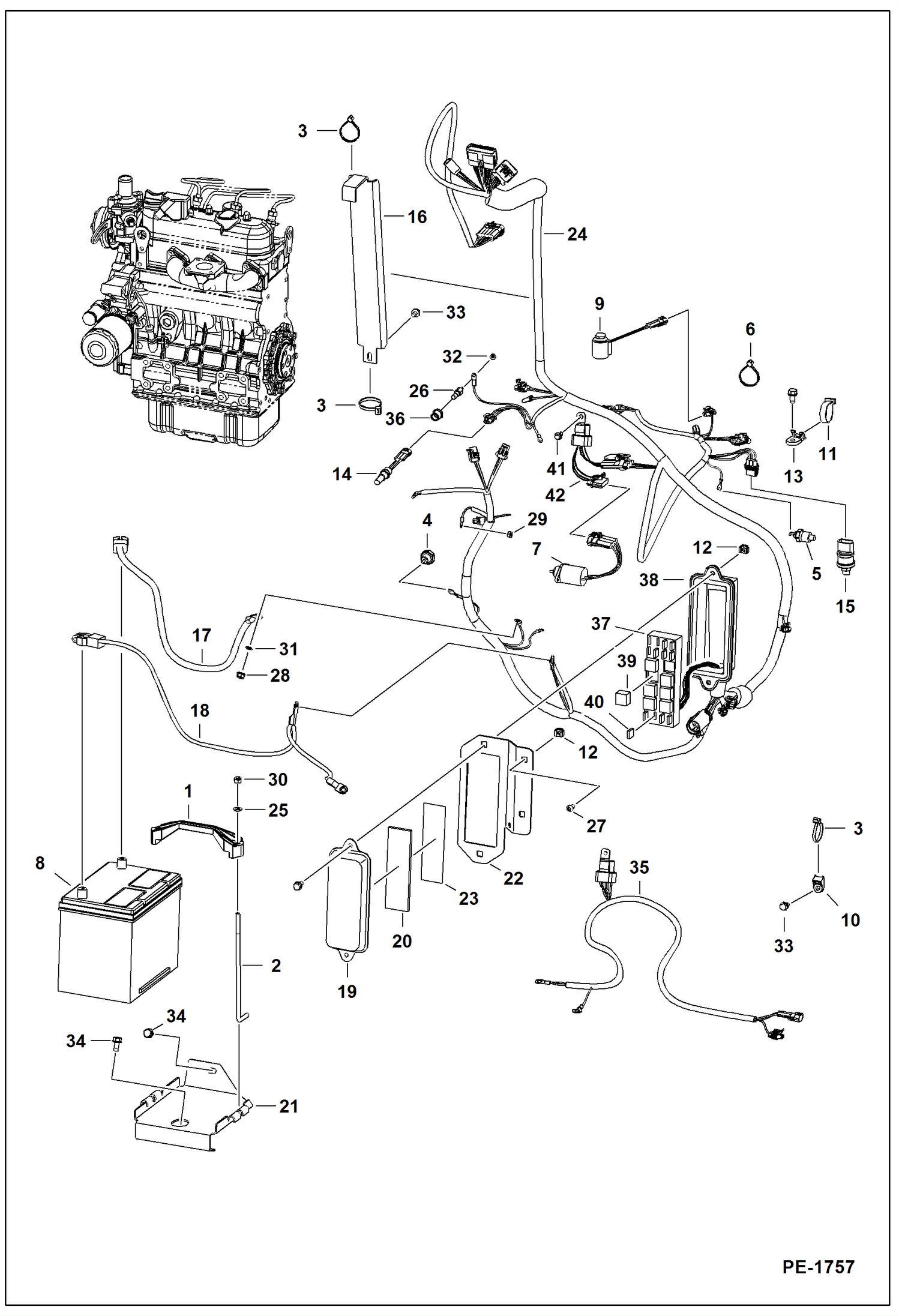

Запчасти Bobcat 400s ENGINE ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

6569203

CLAMP battery

2

6576280

BOLT bent

3

6624289

STRAP, TIE

4

6631010

SWITCH, PRESS OIL ENG engine oil pressure

5

6632633

SWITCH hyd temp

6

6665527

TIE

7

6670602

SOLENOID, SHUTOFF FUEL fuel shutdown

8

6674687

BATTERY, DRY 600 AMP

9

6675559

COIL W/diode

10

6678667

MOUNT

11

6678669

STRAP

12

6678765

NUT steering lever

13

6679034

MOUNT deluxe

14

6680004

THERMOSTAT Fan

15

6682585

SWITCH hydro charge pressure

16

6707415

BRACKET

17

6714436

CABLE positive

18

6714437

CABLE negative

19

6716621

COVER fusebox

20

6731275

INSULATION fusebox

21

6732224

PAN BATTERY

22

6732917

BRACKET fusebox

23

6733650

DECAL fuse/relay

24

6735878

HARNESS, MFR engine - needs cooling fan jumper harness

24

7105747

HARNESS, MFR engine

25

25E15

WASHER

26

6658818

SENDER eng temp - threaded connector

27

35C512

BOLT

28

43DM8

NUT

29

1DM6

NUT Was 4DM6 - A

30

59D5

NUT 5

31

6E5

WASHER

32

14D10

NUT

33

84G3112

BOLT 5

34

84G3712

BOLT 5

35

7104468

HARNESS 463 JUMPER jumper - cooling fan

36

19F2

BUSHING

37

6673200

FUSE BLOCK

37

6718659

HOUSING

37

35C410

BOLT 5

38

6718659

HOUSING

39

6679820

RELAY

40

6654806

FUSE, 15A

40

6654805

FUSE 10A - A

40

6733838

FUSE 40 amp

40

6702444

FUSE 25A 5

40

6625575

FUSE, 20A

41

31C410

BOLT

42

6669415

TIMER, SOLENOID
