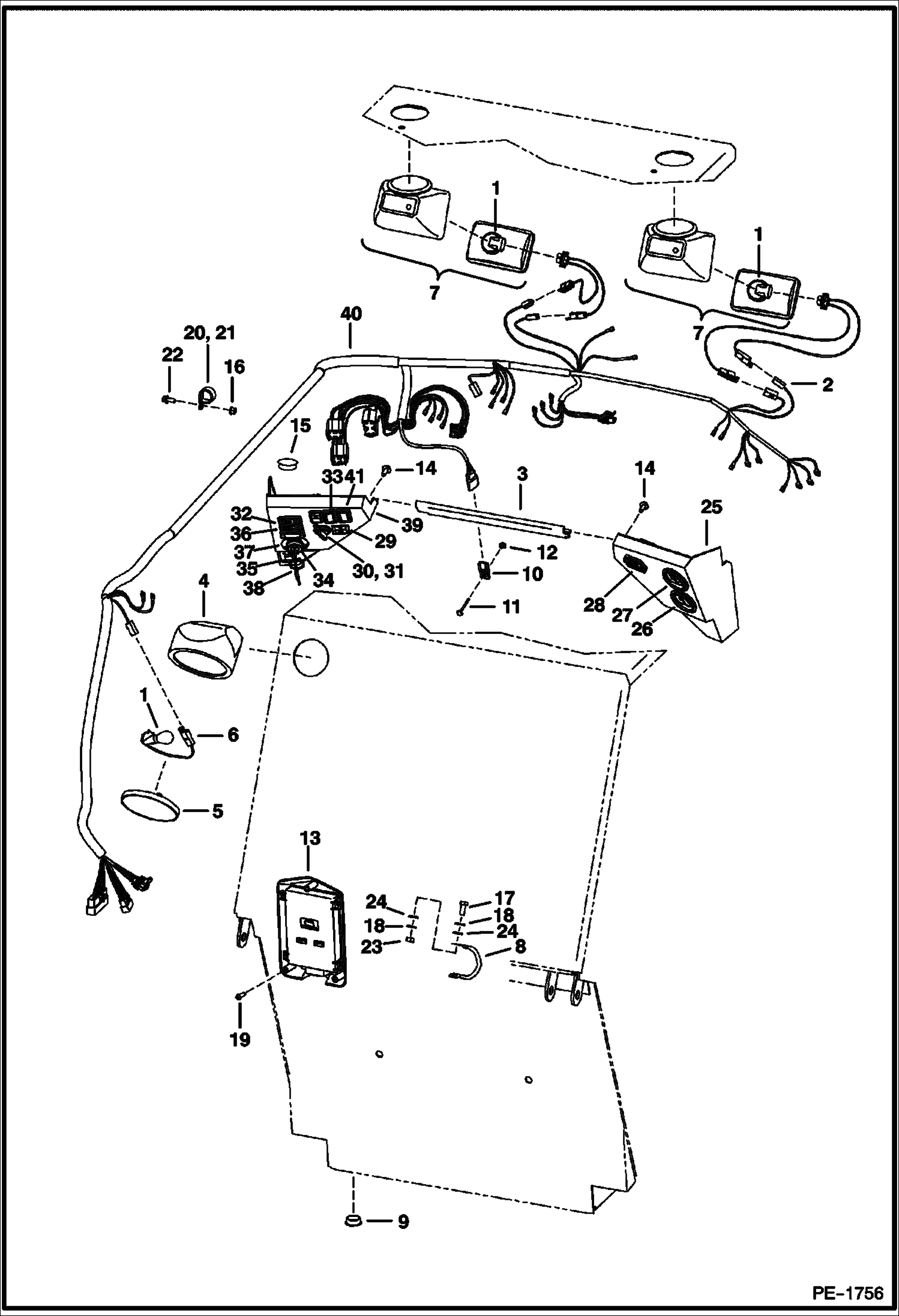

Запчасти Bobcat 400s CAB ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

898731

1156 BULB

2

6519548

CONNECTOR

3

6531618

CROSSMEMBER

4

6558142

HOUSING

5

6563740

LAMP

6

6564907

SOCKET ASSY

7

6577801

LIGHT

8

6594283

WIRE

9

6648391

PLUG

10

6665000

CLIP

11

6665321

RIVET

12

6665322

RIVET

13

6680411

CONTROLLER

14

6702642

SCREW

15

6707674

PLUG

16

83D4

NUT 10

17

1C512

BOLT

18

25E15

WASHER

19

25G412

CAPSCRW10

20

30H55

CLIP

21

30H56

CLIP

22

35C410

BOLT 5

23

61D5

NUT

24

6E5

WASHER

25

6708584

PANEL

26

GAUGE NLA - eng temp - W/clamp - Order 6669663 gauge & 6679027 clamp - Was 6658817 - A

26

6669663

GAUGE eng temp - W/O clamp

27

VOLTMETER NLA - W/clamp - Order 6669664 voltmeter & 6679027 clamp - Was 6658819 - A

27

6669664

VOLTMETER W/O clamp

28

6664886

HOURMETER

28

65G608

SCREW for hourmeter

29

6636018

LIGHT

30

6664223

OUTLET

31

6664224

CAP

32

6665315

SWITCH headlight

33

6665318

SWITCH glow plug

34

6665606

SWITCH

34

6692327

SWITCH service only

35

6674220

SWITCH, OVERRIDE TRACTION push to operate

36

6678203

SWITCH park brake

37

6709028

PLATE brake start

38

KEY NLA - ignition - includes two keys W/ring - Order 6693241 - Was 6709527 - A

38

6693241

KEY 10 ignition - single key W/O ring

39

6730034

PANEL

40

6732922

HARNESS

41

6665314

PLUG
