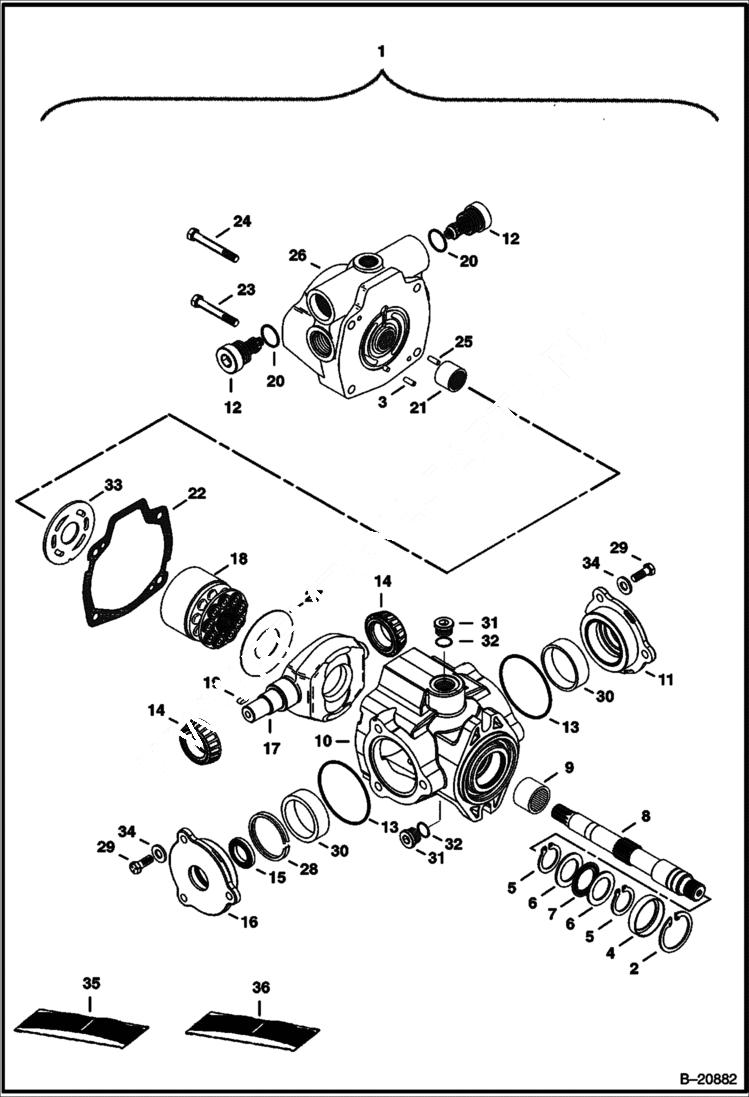

Запчасти Bobcat 400s HYDROSTATIC PUMP (Gear Pump End) HYDROSTATIC SYSTEM

1

6681918

PUMP New - 70160-LBM-03 - Gear pump end - Ref. 2-34

2

661415

SNAP RING

3

6677588

PIN

4

6677591

SPACER

5

710776

SNAP RING

6

6598878

RACE

7

3292657

BEARING thrust

8

6677586

SHAFT

9

851239

BEARING

10

6677589

HOUSING Also Order Ref. 36 - W/Ref. 9

11

6677600

COVER

12

6681916

RELIEF VALVE W/Ref. 20

13

6677605

O-RING

14

6677598

BEARING

15

6656353

SHAFT SEAL Was 6635527 - B,D

16

6677599

COVER Also Order Ref. 36

17

6677590

PLATE yoke - Also Order Ref. 36

18

6598893

GROUP

19

6630170

KEY

20

6677596

O-RING

21

654386

BEARING

22

6635508

GASKET Was NSS - D

23

6677601

BOLT

24

6677602

BOLT

25

214028

PIN

26

6677587

PLATE back - W/Ref. 21

27

6677592

PLATE thrust

28

6677604

CRUSH RING Was NSS - D

29

6677594

SCREW

30

6677603

CUP bearing

31

6677607

PLUG W/Ref. 32

32

6634874

O-RING

33

6667998

PLATE Was 6677606 - A

34

6677593

WASHER

35

6677608

KIT, SEAL

36

6677502

SHIM KIT
