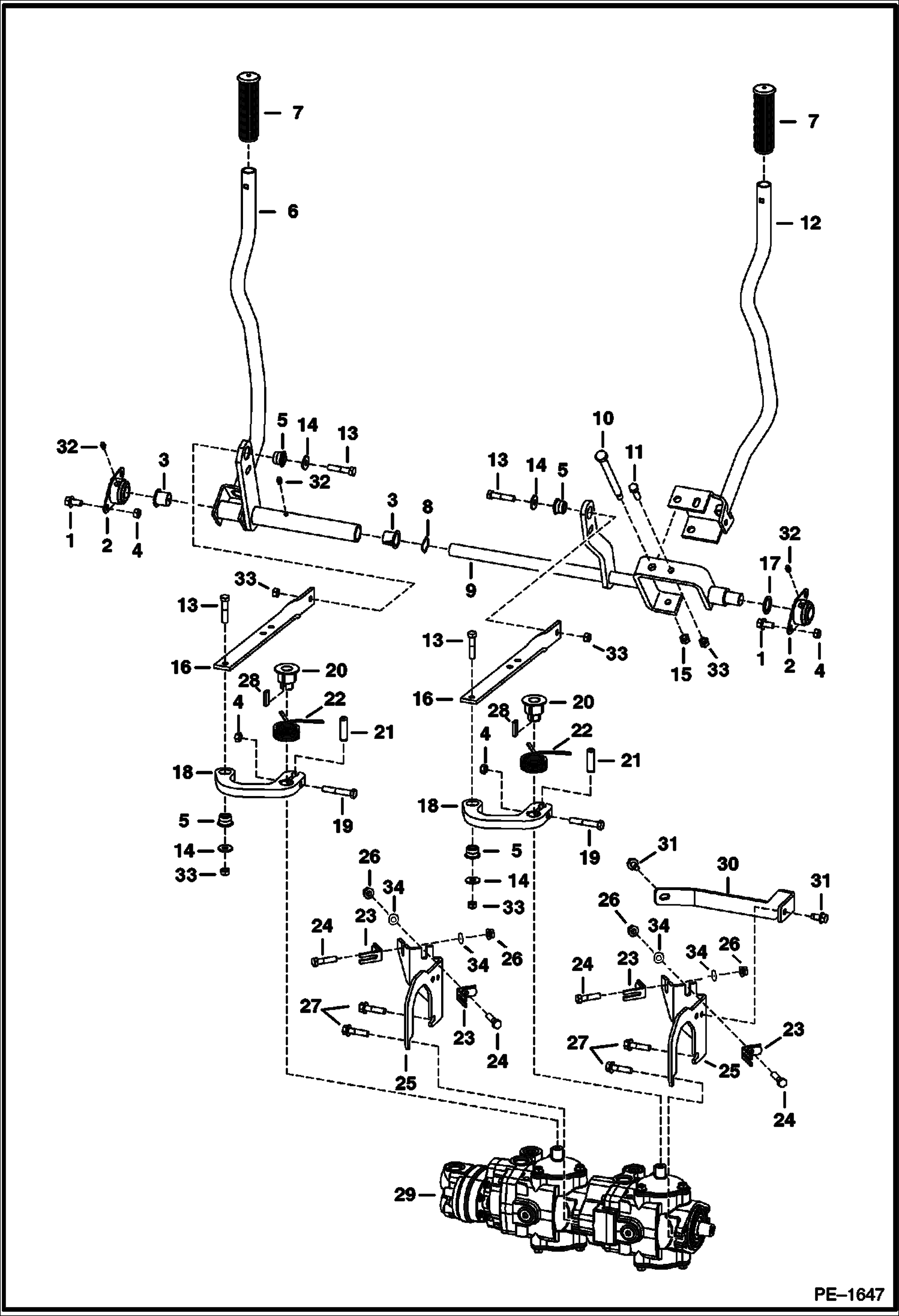

Запчасти Bobcat 400s HAND CONTROLS HYDROSTATIC SYSTEM

1

35C612

BOLT

2

6558736

FLANGE

3

6512027

BUSHING

4

85D6

NUT, 5

5

6665701

BUSHING, PRESS FIT

6

6732740

LEVER

7

6513963

GRIP

8

6599741

WASHER

9

6732741

SHAFT

10

6553081

BOLT

11

17C620

BOLT

12

6733306

LEVER

13

17C624

BOLT 5 Was 17C000628B - B

14

6563914

WASHER

15

61D6

NUT 5

16

6709397

LINK

17

6733130

WASHER

18

7127205

PINTLE LEVER Was 6564244 - B

19

17C636

BOLT

20

6728605

HUB

21

6728615

PIN

22

7127204

SPRING Was 6728150 - A

23

6564241

GUIDE

24

6678089

BOLT 1.50'' long

24

7127206

BOLT 1.25'' long

25

7137440

MOUNT Was 6727831 - A

26

81D6

NUT Was 57D000006B - B

27

35C624

BOLT

28

6630170

KEY

29

PUMP See Illustration HYDROSTATIC PUMP/ B17504

30

7137441

LINK centering - Was 6728723

31

84G3712

BOLT 5

32

6518200

FITTNG, GREASE 10

33

95D6

NUT

34

25E17

WASHER 5
