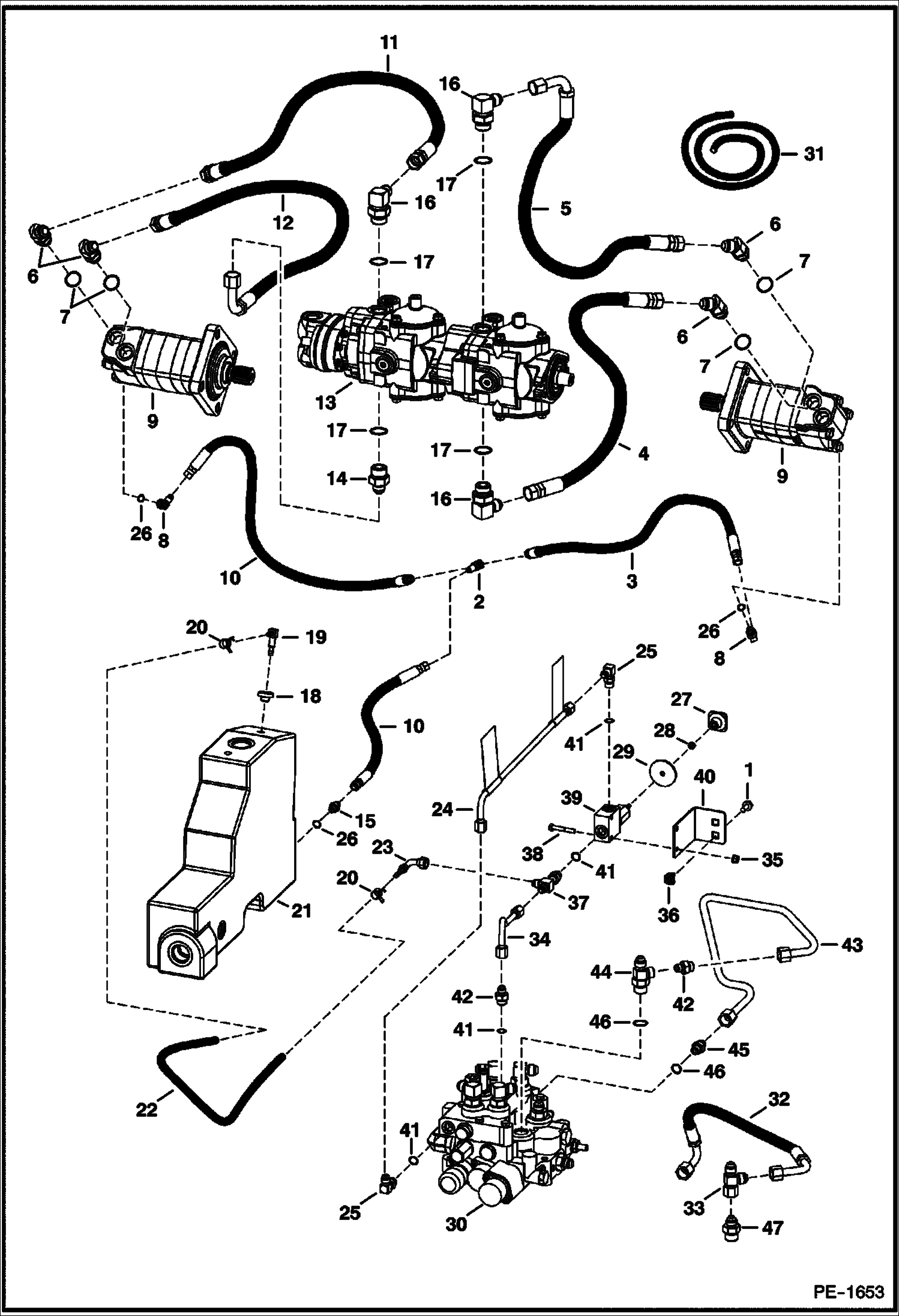

Запчасти Bobcat 400s HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

35C512

BOLT

2

TEE NLA - Was 10KN00003B - A

2

10K3

TEE flat boss face

2

97K4

O'RING flared end

3

6728470

HOSE

4

6732112

HOSE

5

6732113

HOSE

6

18KB1010

FITTING, HYD ELBOW W/Ref. 7

7

79K10

O RING 10

8

17KB0404

FTG HYD ELBOW 90 W/Ref. 37

9

MOTOR See Illustration HYDROSTATIC MOTOR/ D1635

10

6728469

HOSE

11

6732060

HOSE

12

6732240

HOSE

13

PUMP See Illustration HYDROSTATIC PUMP/ B17504

14

15KB1012

FITTING, HYD CONNECTOR W/Ref. 17

15

15KB0404

FTG HYD S Connector W/Ref. 37

16

17KB1012

FITTING, HYD ELBOW W/Ref. 17

17

79K12

O RING 10

18

6553411

BUSHING

19

6598908

ELBOW

20

5HM13

CLAMP

21

6714556

TANK hydraulic

22

HOSE NLA - 22.5''(571,5mm) long - Order Ref. 31

23

6680431

ELBOW

24

6733986

TUBELINE available only as an assembly W/two danger decals installed

24

6809511

DECAL, DANGER

25

17KB0606

FITTING W/Ref. 41

26

79K4

O RING 10 flat boss face

27

6737524

KNOB red square - Was 6668913 - A

28

7D4

NUT

29

6707101

SEAL neoprene

30

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE1654

31

6577821

HOSE bulk - sold per foot

32

6732268

HOSE

33

6680287

TEE

34

6732270

TUBELINE

35

83D4

NUT 10

36

6678765

NUT

37

6805243

TEE W/Ref. 41

38

17C428

BOLT

39

7230495

VALVE, LIFT MANUAL manual lift release - Was 6667844 - A

40

6732299

BRACKET

41

79K6

O RING 10

42

15KB0606

FITTING, HYD CONNECTOR W/Ref. 41

43

6736035

TUBELINE RELIEF

44

6736553

TEE

45

15KB0610

FITTING, HYD CONNECTOR

46

79K10

O RING 10

47

15KB0810

FITTING, HYD CONNECTOR
