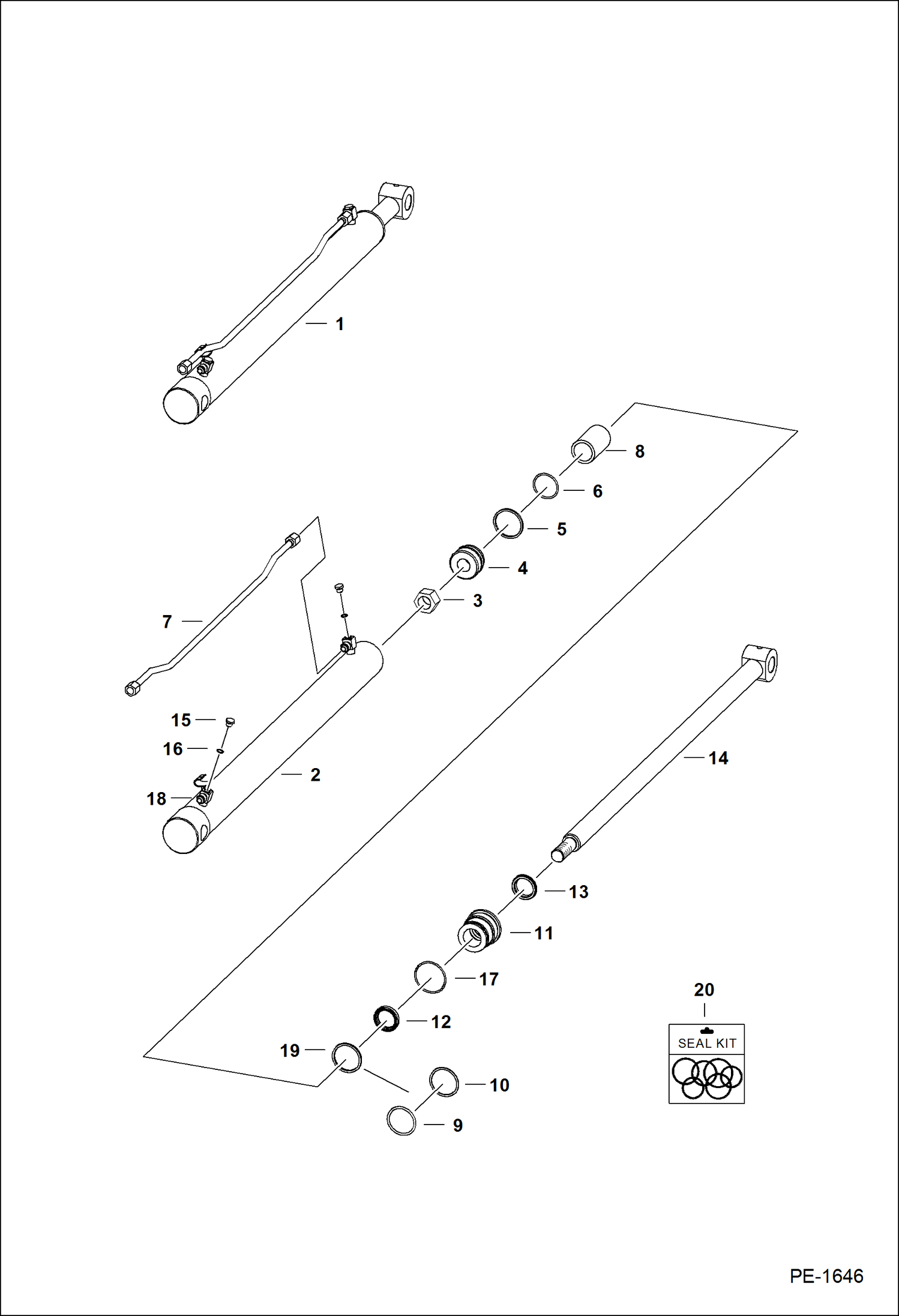

Запчасти Bobcat 400s LIFT CYLINDER HYDRAULIC SYSTEM

1

6812771

CYLINDER Ref. 2-18

2

6812773

CASE

3

92D14

NUT

4

6808338

PISTON

5

54K30118

O-RING

6

6516231

SEAL

7

6808626

TUBE

8

6808336

SPACER

9

54K40124

O-RING

10

73K224

RING

11

6539323

HEAD

12

6667324

SEAL

13

6665208

SEAL

14

6807141

ROD chrome

15

6812170

PLUG W/Ref. 16

16

75K3

O-RING Was 95K000003B - B,D

17

82K136

O-RING Was 58K136 - B

18

6690910

CLAMP

19

7008781

SEAL, QUAD

20

7137770

KIT, SEAL CYLINDER Ref. 3, 5, 6, 12, 13, 17, & 19 - Was 6804927 - A
