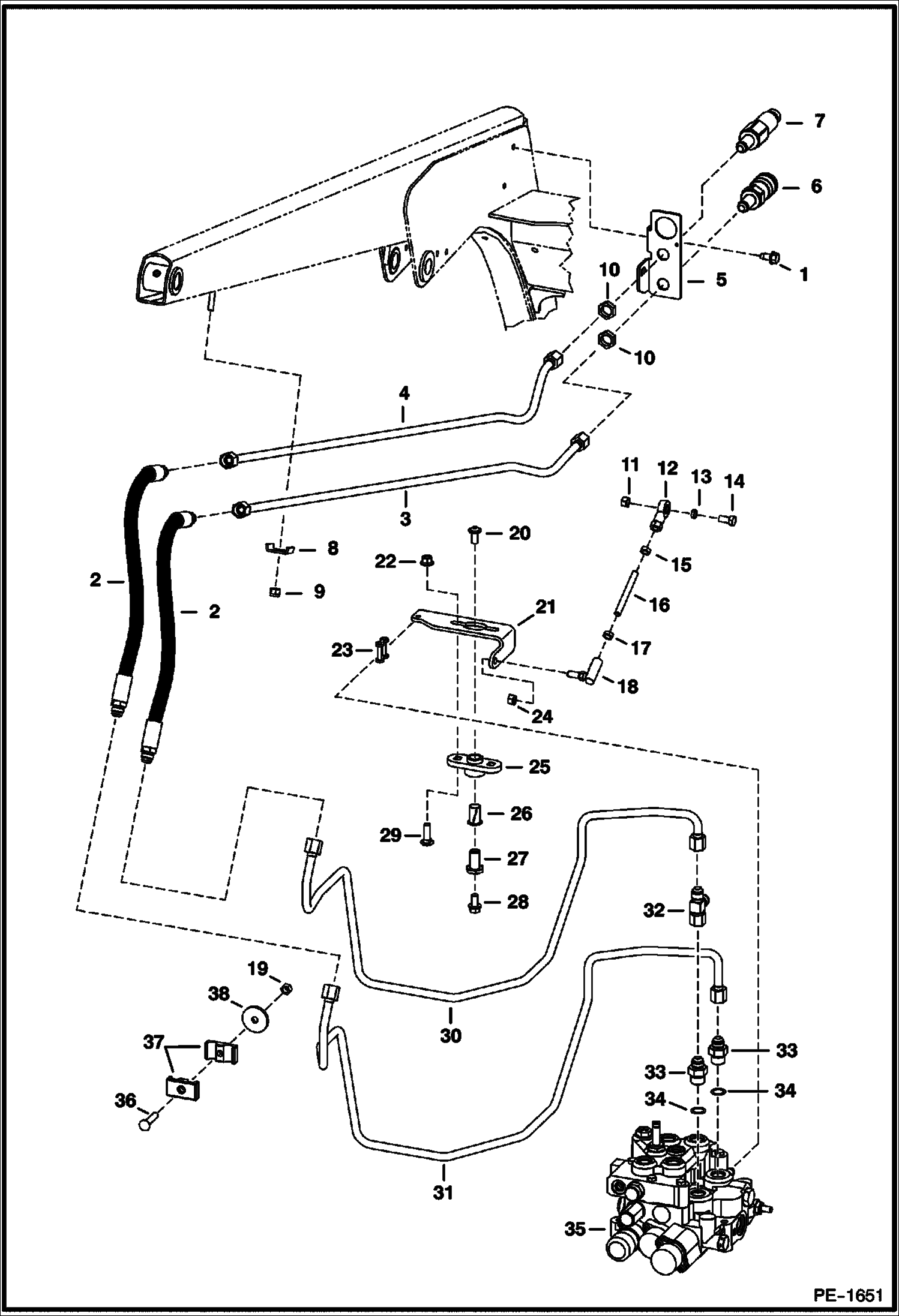

Запчасти Bobcat 400s AUXILIARY HYDRAULICS HYDRAULIC SYSTEM

1

84G3712

BOLT 5

2

6728013

HOSE

3

6711637

TUBELINE

4

6711636

TUBELINE

5

6727541

BRACKET aux line

6

6676559

COUPLER, FF FEMALE 1/2''

7

6676560

COUPLER, FF MALE 1/2''

8

6500989

CLAMP

9

59D6

NUT

10

86F6

NUT

11

95D6

NUT

12

6512955

SWIVEL L.H. threads

13

6810385

BUSHING Was 6564535 - B

14

17C620

BOLT

15

13D6

NUT

16

6733371

ROD LINKAGE

17

8D6

NUT 5

18

6599744

BALL JOINT

19

85D5

NUT 5

20

6665839

BOLT

21

6732295

BRACKET aux lever

22

83D6

NUT 5

23

6515186

CONNECTOR

24

62D6

NUT 5

25

6708043

BUSHING flange

26

6512026

BUSHING

27

6706104

RETAINING NUT

28

35C612

BOLT

29

37C620

BOLT

30

6732059

TUBELINE to female coupler - Was 6732062 - B,D

30

6734767

TUBELINE to female coupler

30

6736639

TUBELINE AUX to female coupler

31

6732062

TUBELINE to male coupler - Was 6732059 - B,D

31

6734766

TUBELINE to male coupler

32

6680287

TEE

33

15KB0810

FITTING, HYD CONNECTOR W/Ref. 34

33

15KB0810

FITTING, HYD CONNECTOR W/Ref. 34

33

6736553

TEE W/Ref. 34

34

79K10

O RING 10

35

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE1654

36

37C532

BOLT Was 10C000528B - B

37

6701892

CLAMP

38

872229

WASHER
