Запчасти Bobcat 400s SIDE INSTRUMENT PANEL KIT (S/N 5200 11711 & Above, 5199 11425 & Above) ACCESSORIES & OPTIONS

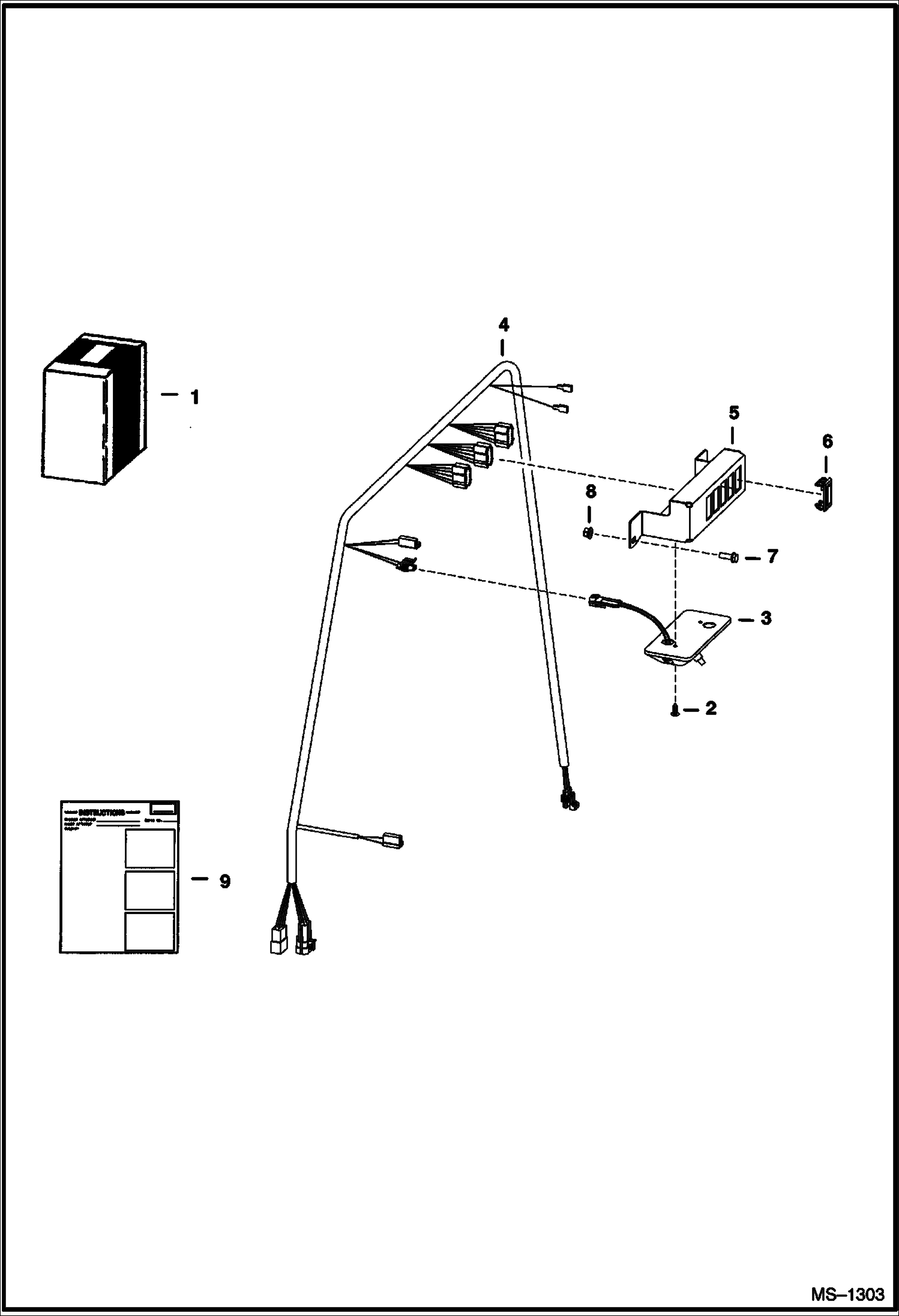

Схема запчастей Bobcat 400s - SIDE INSTRUMENT PANEL KIT (S/N 5200 11711 & Above, 5199 11425 & Above) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6730835

KIT side panel - Ref. 2 - 9

2

6664221

RETAINER

3

6680326

LIGHT assy - Was 6664368 - A

3

6665367

BULB

4

6729789

HARNESS accessory

5

6730826

SIDE PANEL

6

6665314

PLUG switch

7

35C412

BOLT

8

83D4

NUT 10

9

6901440

INSTRUCTIONS

Выбрано товаров: 10
