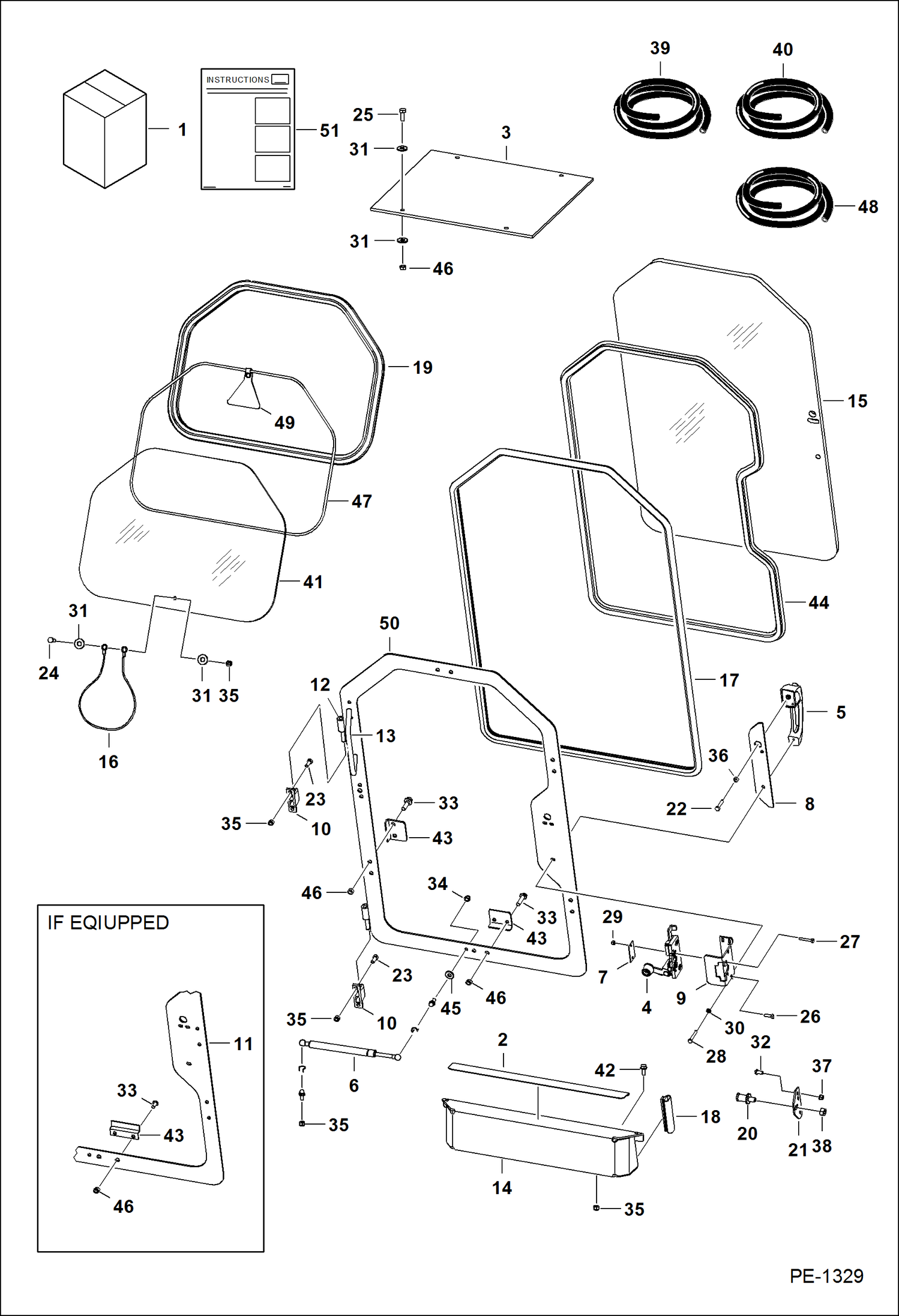

Запчасти Bobcat 400s CAB ENCLOSURE (Special Applications) (S/N 5200 11711 & Above, 5199 11425 & Above) ACCESSORIES & OPTIONS

1

KIT NLA - Ref. 2-50 - order components - Was 6729391 - A

2

6542731

SAFETY TREAD

3

6593243

WINDOW top

4

6674666

LATCH

5

6674667

HANDLE door

6

6678091

GAS SPRING

6

6678548

SOCKET ball

6

6649245

RETAINER spring

7

6718520

COVER latch

8

6731529

SPACER window

9

6717369

BRACKET latch

10

6717593

HINGE base

11

DOOR NLA - Use W/Ref. 43 (8) - Order Ref. 50 - Was 6729260 - B

12

6718376

HINGE door

13

6718521

HANDLE grab

14

6729283

SHIELD enclosure

15

6729235

WINDOW front - 0.25'' polycarbonate

16

6555331

WIRE ROPE

17

SEAL NLA - door - 119'' (3022,6 mm) long - Order Ref. 39

18

SEAL NLA - shield - 4.5'' (114,3 mm) long - Order Ref. 39

19

MOULDING NLA - rear - 70'' (1778 mm) long - Order Ref. 40

20

6685233

BOLT STRIKER striker - Was 6729413 - A

21

6729486

MOUNT striker

22

17C420

BOLT

23

17C512

BOLT 5

24

17C516

BOLT

25

17C616

BOLT 5

26

1CM620

BOLT

27

4CM635

BOLT

28

1CM640

SCREW

29

1DM6

NUT Was 4DM6 - A

30

6EM60

WASHER, SPRING

31

25E18

WASHER

32

25G412

CAPSCRW10 Was 25G000410B - B

33

35C620

BOLT 5

33

35C620

BOLT 5

34

46D5

NUT

35

59D5

NUT 5

36

61D4

NUT 5

37

83D4

NUT 10

38

85D7

NUT Was 91D000007B - B

39

7011039

SEAL, BULK/FT 34 sold per foot - Was 6675558 - A

40

6658352

MOULDING bulk - sold per foot

41

6593244

WINDOW rear

42

35C512

BOLT Was 31C000512B - B

43

6725937

CLAMP window

43

6725937

CLAMP

44

SEAL NLA - 105.6'' (1260 mm) long - Order Ref. 39

45

25E16

WSHR

46

85D6

NUT, 5

46

85D6

NUT, 5

47

CORD NLA - 70'' (1778mm) long - Order Ref. 48 - Also Order Ref. 49 (6731478 exit tag)

48

6554149

CORD, BULK/FT bulk - sold per foot

49

6731478

EXIT TAG

50

6729260

DOOR Use W/Ref. 43 (7)

51

6901775

INSTRUCTIONS Was 6901254 - B
