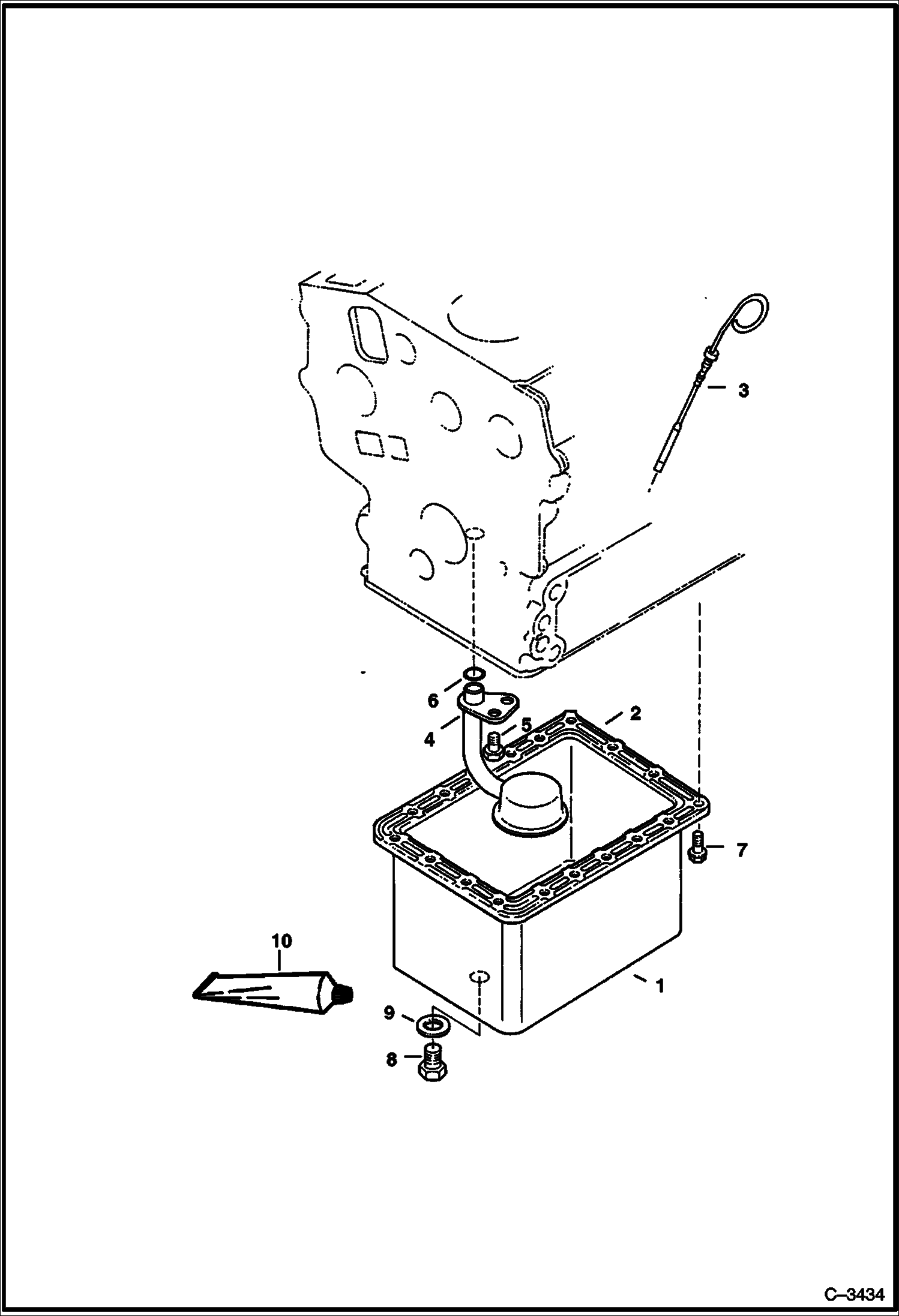

Запчасти Bobcat 400s OIL PAN (Kubota D722) (515011001-515013987, 515111001-515113995) POWER UNIT

1

6685739

PAN W/Adapter - Was 6671063 - A

2

GASKET NLA - Use Ref. 10

3

6670374

DIPSTICK 7.5 mm dia plug

3

6678238

DIPSTICK 12.5 mm dia plug

4

6670348

SCREEN oil pickup

5

6667420

BOLT

6

3966516

O RING See Illustration ENGINE & GASKET KITS/ B16486 INCLUDED W/LOWER GASKET KIT

7

1CM612

BOLT Was 4CM612 - A

8

6640729

PLUG

9

6640730

WASHER Sealing

10

6632823

GASKET liquid - Use between Ref. 1 & block
