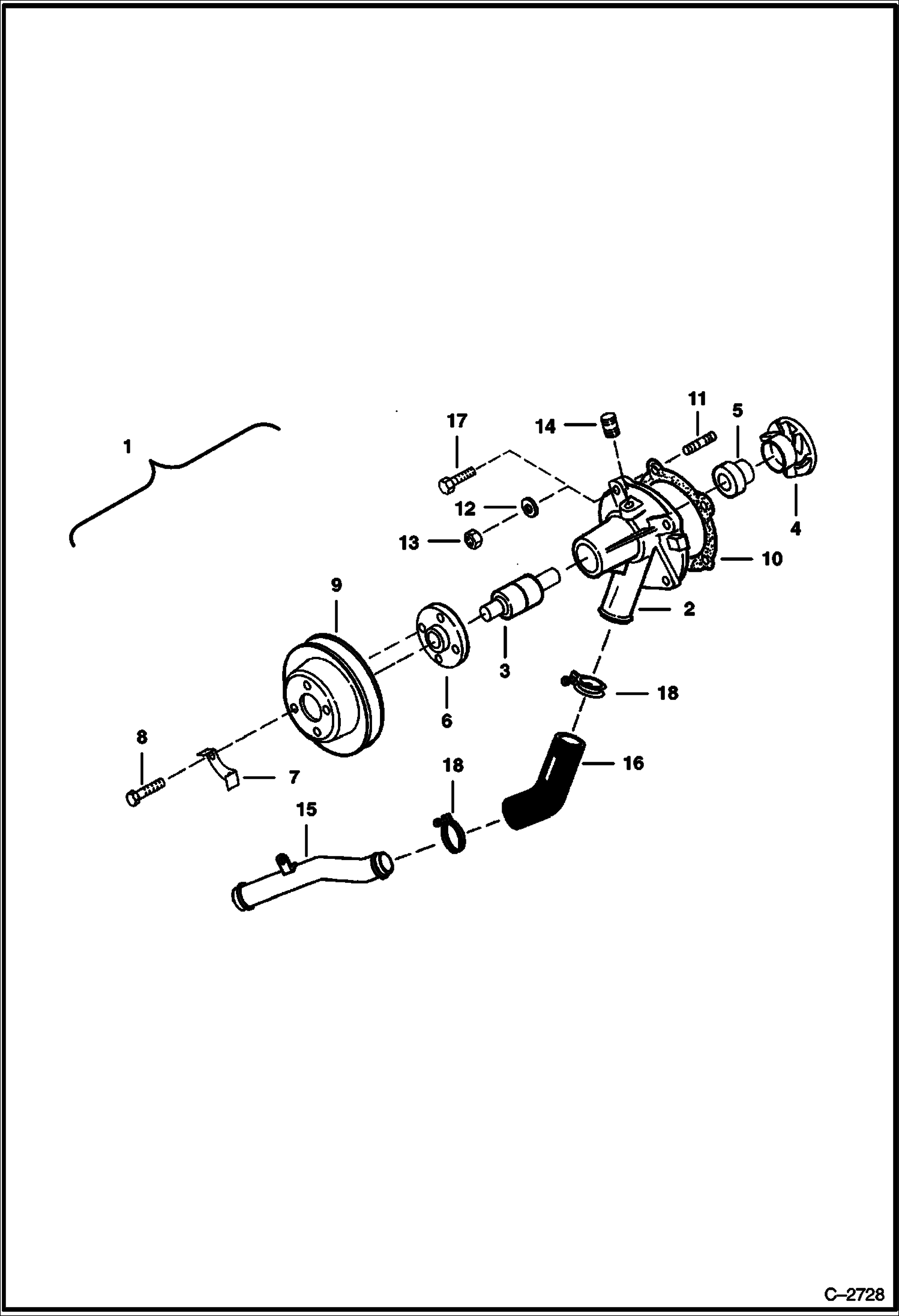

Запчасти Bobcat 400s WATER PUMP (Kubota D750) (5618 11001- & 5619 11001-) POWER UNIT

1

6652753

PUMP ASSY. Ref. 2-6

2

BODY NSS

3

6599123

BEARING

4

6599061

IMPELLER

5

6649319

SEAL

6

6599062

FLANGE

7

6599090

WASHER Use without flanged bolt

8

29CM612

BOLT, FLANGED Was 6652762 - A

9

6599063

PULLEY

10

6666797

GASKET Was 6599120 - A

11

6599750

STUD

12

6EM60

WASHER, SPRING spring

13

1DM6

NUT

14

6649537

PIPE

15

6630003

PIPE

15

6657053

PIPE

16

6599999

HOSE

17

4CM622

BOLT

18

6599040

BAND, PIPE
