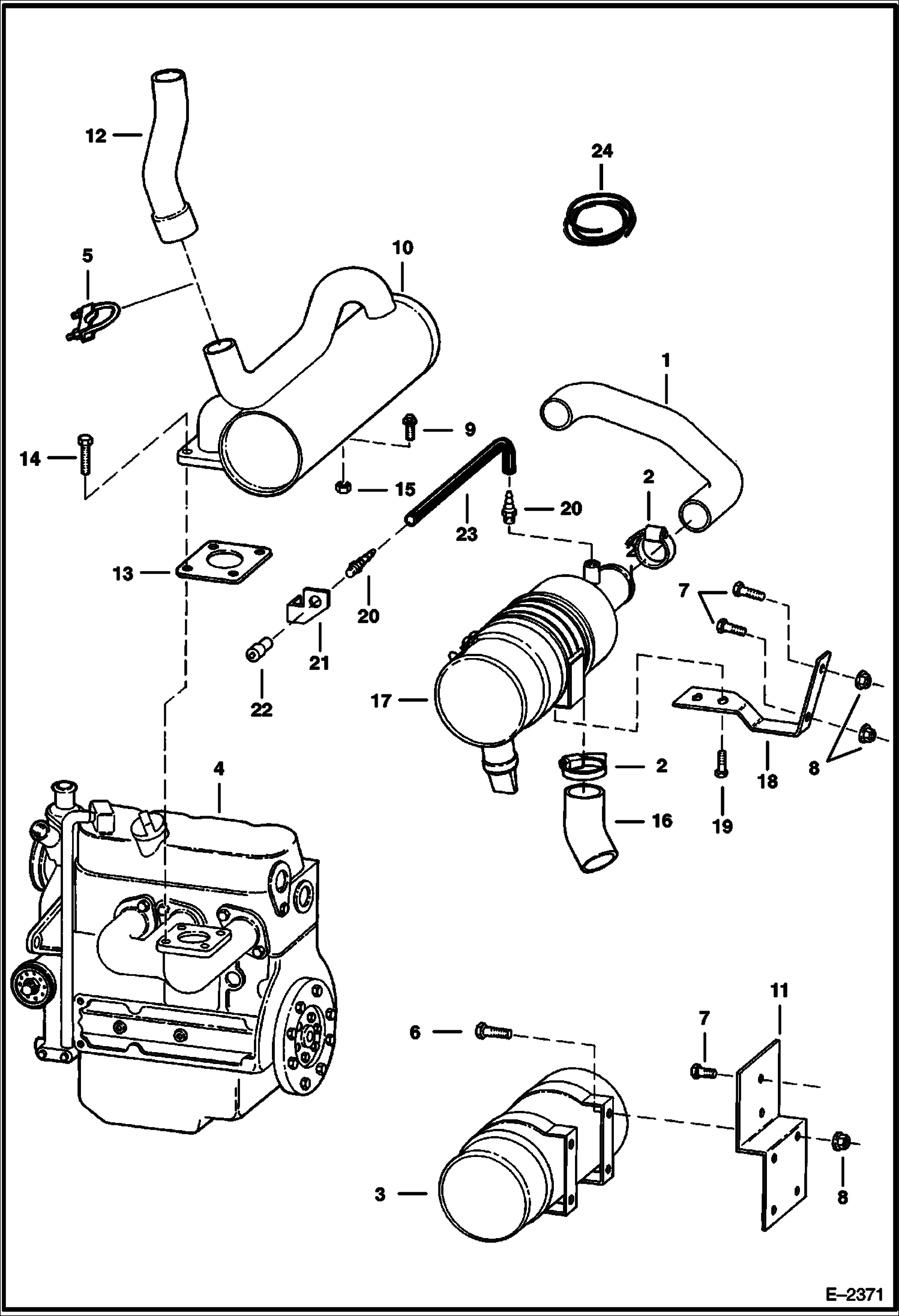

Запчасти Bobcat 400s ENGINE & ATTACHING PARTS (Intake & Exhaust) (5150 11001 & Above, 5151 11001 & Above) POWER UNIT

1

6718442

HOSE Was 6713607 - A

2

6513595

CLAMP

3

AIR CLEANER See Illustration AIR CLEANER/ B17728

4

ENGINE See Illustration ENGINE & GASKET KITS/ B16486

5

3170912

CLAMP,MUF muffler

6

35C508

BOLT

7

84G3112

BOLT 5

8

57D5

NUT

9

35C612

BOLT

10

6713528

MUFFLER spark arrestor

11

6713597

BRACKET air cleaner

12

6713587

TUBE exhaust

13

6575580

GASKET exhaust - Was 3974507B - B

14

6701123

SCREW exhaust

15

57D6

NUT 5

16

6520555

HOSE See Illustration EUROPEAN ACCESSORIES/ D1931 EUROPE ONLY

17

AIR CLEANER See Illustration AIR CLEANER/ C3522

18

6716373

MOUNT

18

6716373

MOUNT

19

1CM820

BOLT

19

1CM820

BOLT

20

6505813

CONNECTOR

21

6704823

BRACKET

21

6704823

BRACKET

22

6515007

GAUGE

23

HOSE NLA - 18'' (457,2 mm) long - Order Ref. 24

24

6557720

HOSE

24

6557720

HOSE
