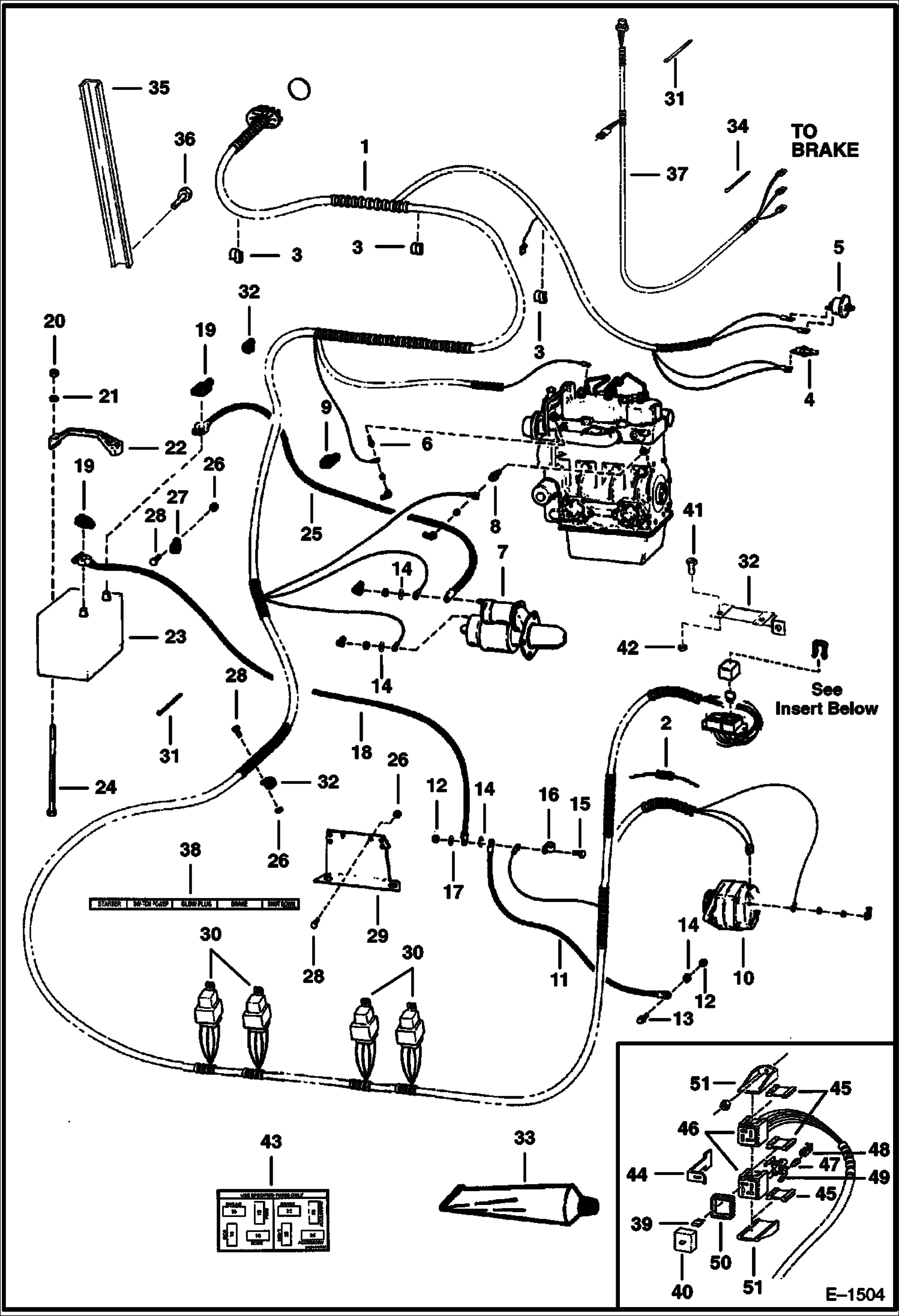

Запчасти Bobcat 400s ENGINE ELECTRICAL CIRCUITRY (5618 11001-, 5619 11001-) ELECTRICAL SYSTEM

1

6707453

HARNESS engine

2

3675725

DIODE

3

6599698

CLIP

4

6632633

SWITCH hyd temp

5

6670705

SWITCH, PRESS OIL HYD hydro. pressure - W/3-Pin molded Connector - Was 6665372 - A

6

6658818

SENDER eng temp - threaded connector

7

STARTER See Illustration STARTER (SEALED)/ B17654 See Illustration STARTER/ B1192

8

6969775

SWITCH, OIL PRESSURE engine oil pressure - Was 6652576 - A

9

31H42

CLIP

10

ALTERNATOR See Illustration ALTERNATOR/ C3312

11

6565170

CABLE neg

12

85D6

NUT, 5

13

84G3712

BOLT 5

14

6E6

WASHER

15

17C618

BOLT

16

30H42

CLAMP

17

25E17

WASHER 5

18

6514559

CABLE

19

2356058

BOOT

20

59D5

NUT 5

21

25E15

WASHER

22

6569203

CLAMP

23

6674687

BATTERY, DRY 600 AMP Was 6669318 - B

23

6630154

CAP gang - Danger

23

6630155

CAP gang - Poison

23

CAP NLA - tilt-tite - Was 6514898 - A

24

6569623

BOLT

25

6557450

CABLE

26

85D4

NUT 5

27

31H17

CLAMP

28

17C410

BOLT 10

29

6707856

MOUNT

30

6670312

SWITCH, MAGNETIC relay - Was 6665005 - A

31

6610510

TIE

32

6708442

BRACKET

33

6599360

SEALANT, ELEC .3 OZ electrical - tube - 3 oz

34

6665527

TIE never modify

35

6707415

BRACKET

36

84G3108

BOLT

37

6707497

HARNESS to brake

37

6710423

HARNESS to brake

38

6707787

DECAL

39

6707620

FUSE, 10A MINI 5

39

6707621

FUSE, 15A MINI 5

39

6707622

FUSE, 20A MINI 5 20 amp.

39

6707623

FUSE, 25A MINI 5

39

6674099

BREAKER, 25A

40

6665358

COVER , FUSE fuse

41

45G1212

BOLT

42

50D12

NUT

43

6715991

DECAL Was 6707786 - A

44

6708437

CLIP

45

6665411

WEDGE red

46

6665356

BLOCK fuse - W/green square seal

47

6650107

SEAL

48

PIN NLA - female - Order 6668719 pin for 16 ga. wire - Order 6668720 pin for 14 ga. wire - Was 6648311 - A

49

6665357

LOCK yellow

50

6671528

SEAL Green Seal

51

6665369

MOUNT fuse
