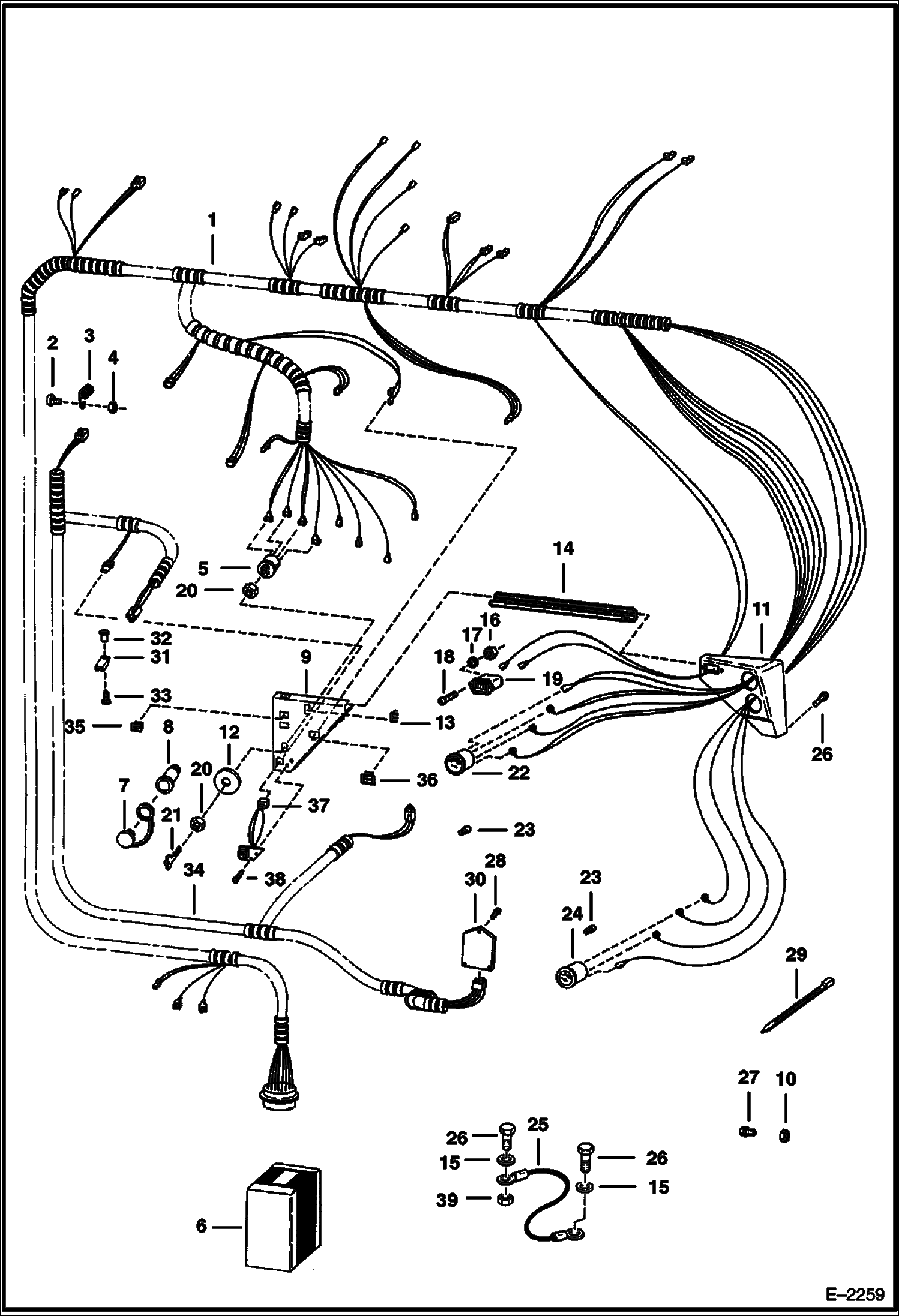

Запчасти Bobcat 400s CAB ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

6707498

HARNESS

2

35C410

BOLT 5 Was 17C000512B - B

3

30H56

CLIP

4

83D4

NUT 10 Was 61D000005B - B

5

SWITCH See BTI289 NLA - ignition - Order Ref. 6 - Was 6519592 - A

5

6665606

SWITCH

6

6724282

SWITCH KIT W/Ref. 5, 12 & 21

7

6664224

CAP European

8

6664223

OUTLET Electrical - European

9

6708425

PANEL Domestic

9

6708426

PANEL European

10

12D4

NUT

11

6708584

PANEL

12

6709028

PLATE brake start - Was 6706994 - A

13

6636018

LIGHT indicator

14

6531618

CROSSMEMBER

15

25E15

WASHER

16

12D6

NUT 10

17

12E6

WASHER

18

85G608

SCREW

19

6664886

HOURMETER

20

6598721

NUT for NLA/6519592 switch

20

6674202

NUT for 6665606 switch

21

6512809

KEY for NLA/6519592 switch

21

KEY NLA - for 6665606 switch - includes two keys W/ring - Order 6693241 - Was 6709527 - A

21

6693241

KEY 10 ignition - single key W/O ring

22

VOLTMETER NLA - W/clamp - Order 6669664 voltmeter & 6679027 clamp - Was 6658819 - A

22

6669664

VOLTMETER W/O clamp

23

6599696

SOCKET & BULB assy.

23

895771

#161 BULB

24

GAUGE NLA - eng temp - W/clamp - Order 6669663 gauge & 6679027 clamp - Was 6658817 - A

24

6669663

GAUGE eng temp - W/O clamp

25

6594283

WIRE ground

26

6702642

SCREW

27

84G3112

BOLT 5

28

91G412

SCREW cross recess pan head - Was 17C000410B - B

28

25G412

CAPSCRW10 hex socket button head

29

6610510

TIE

30

CONTROLLER NLA - order kit 6717699 - Was 6668767 - A

30

CONTROLLER NLA - order kit 6717699 - Was 6673002 - A

30

6680411

CONTROLLER Was 6674222 - A

31

6665000

CLIP

32

6665321

RIVET plastic male

33

6665322

RIVET plastic female

34

6707495

HARNESS controller

34

6707495

HARNESS

34

6710422

HARNESS controller

34

6717581

HARNESS controller - w/o seat sensor

35

6665314

PLUG domestic - Was 6719038 - A

35

6665410

SWITCH European

36

6665318

SWITCH glow plug

37

6667905

SWITCH traction override - Was 6706995 - A

37

SWITCH NLA - traction / seat sensor override - Order 6674220 - Was 6673005 - A

37

6674220

SWITCH, OVERRIDE TRACTION push to operate

38

6669225

BOLT Was 58G000408B - A

39

61D5

NUT
