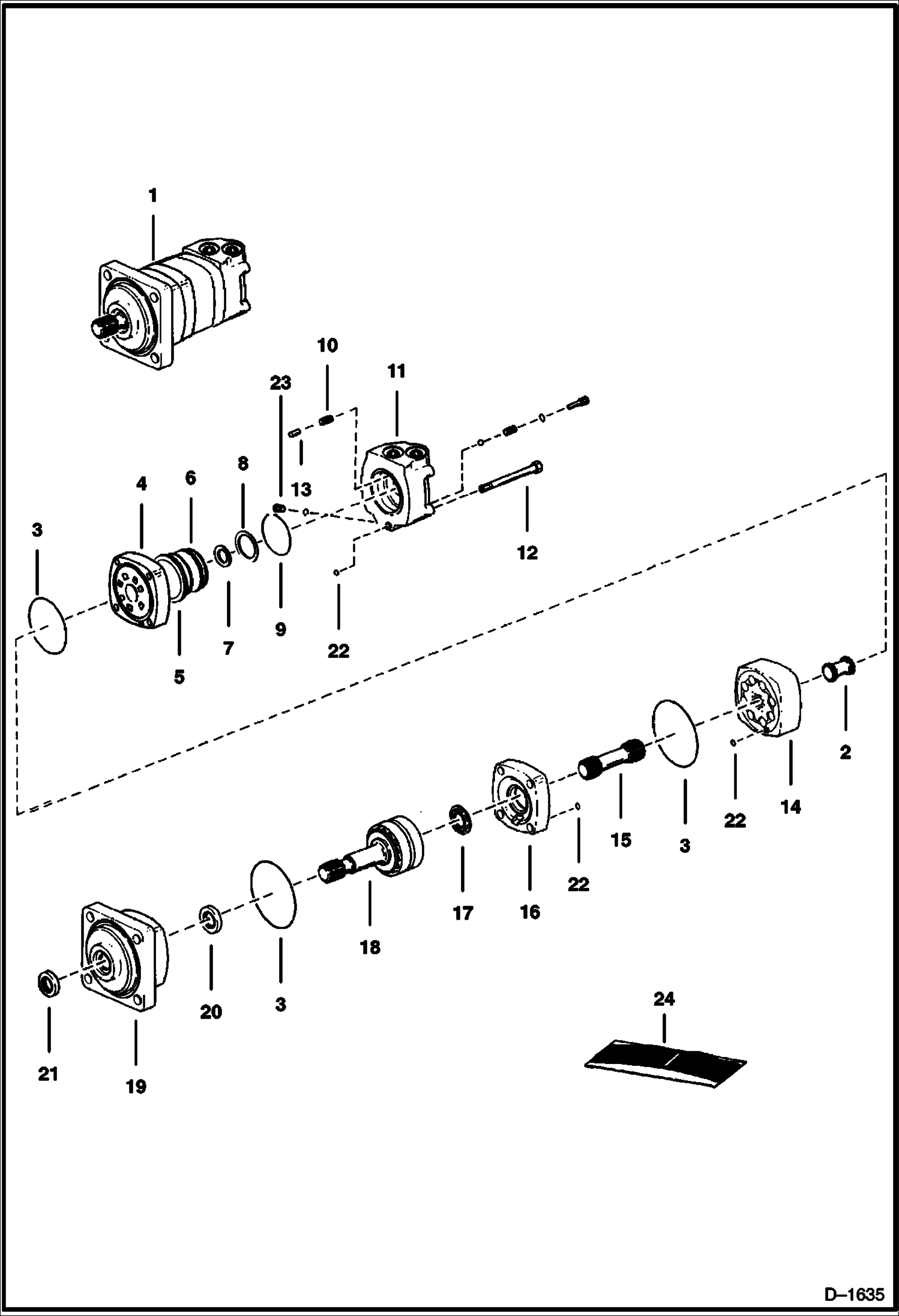

Запчасти Bobcat 400s HYDROSTATIC MOTOR (167-0005-001) (5150 12639, 5151 12714 & Above) HYDROSTATIC SYSTEM

1

6674304

MOTOR, DRIVE HYD See BTI327

2

6674398

LOCK ASSY.

3

SEAL NSS

4

6674397

PLATE Valve

5

6632288

VALVE

6

6630027

BALANCE RING balancing

7

SEAL NSS - inner

8

SEAL NSS - outer

9

SEAL NSS

10

1992088

SPRING

11

6632348

HOUSING W/Ref. 23 & 24

12

6651950

BOLT

13

1992102

PIN

14

6674396

GEROLER

15

6674395

SHAFT

16

6674394

PLATE wear

17

SEAL NSS

18

6674393

BEARING ASSY W/Shaft

19

6674399

HOUSING

20

SEAL NSS

21

SEAL NSS

22

O-RING NSS

23

1992104

PLUG W/O-Ring

24

6677775

KIT, SEAL Ref. 3, 7-9, 17 & 20-22
