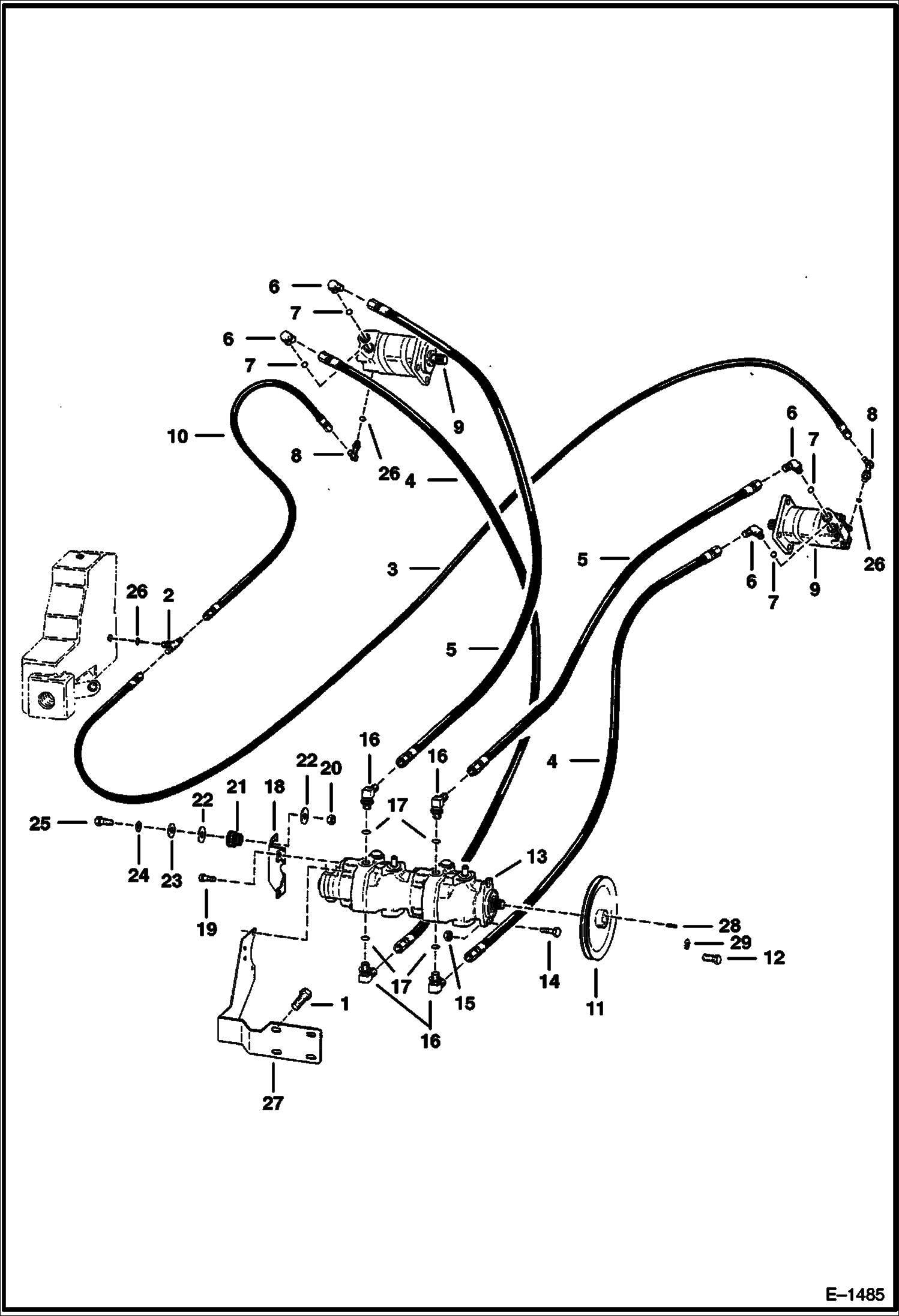

Запчасти Bobcat 400s HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

5CM1020

SCREW

2

19K3

FITTING

3

6530858

HOSE

4

6733664

HOSE Was 6728022 - A

5

6733663

HOSE Was 6728021 - A

6

18K7

FITTING W/Ref. 7

6

17KB1010

FITTING, HYD ELBOW W/Ref. 7 - Was 18KN00007B - A

6

97K10

O-RING 10 flared end

7

79K10

O RING 10 flat boss face

7

99K10

O'RING tapered boss face

8

17K3

ELBOW W/Ref. 26 - flat boss face

8

17KB0404

FTG HYD ELBOW 90 W/Ref. 26 - tapered boss face - Was 17KV00003B - A

8

97K4

O'RING flared end

9

MOTOR See Illustration HYDROSTATIC MOTOR/ D1635

10

6529344

HOSE 14'' (356 mm)

11

6531174

PULLEY tapered - Keyed

12

17C616

BOLT 5

13

PUMP See Illustration HYDROSTATIC PUMP/ D1607

14

35C628

BOLT

15

57D6

NUT 5

16

ELBOW NLA - W/Ref. 17 - flat boss face - Was 1302104B - A

16

6715651

ELBOW W/Ref. 17 - tapered boss face

16

97K10

O-RING 10 flared end

16

17KB1012

FITTING, HYD ELBOW W/Ref. 17 - flat boss face

17

79K12

O RING 10 flat boss face - Was 79K000016B - D

17

99K12

O RING tapered boss face

18

6564055

MOUNT

18

7172914

BRACKET, PUMP GEAR Use W/7003484 pump

19

17C628

BOLT

20

85D8

NUT, 5

21

6560633

DAMPENER

22

6564692

WASHER

23

6565472

WASHER .062'' (1,5748 mm) thick

23

6515817

WASHER Use W/ 7003484 pump - .1793'' (4,554 mm) thick

24

25E21

WASHER 5

25

17C844

BOLT

26

79K4

O RING 10 flat boss face

26

99K4

O'RING tapered boss face

27

6563990

BRACKET

27

6563990

BRACKET

27

6713601

BRACKET

27

6713601

BRACKET

27

6725894

BRACKET

27

6725894

BRACKET

28

6598880

KEY Use W/Tapered Shaft

29

616783

WASHER
